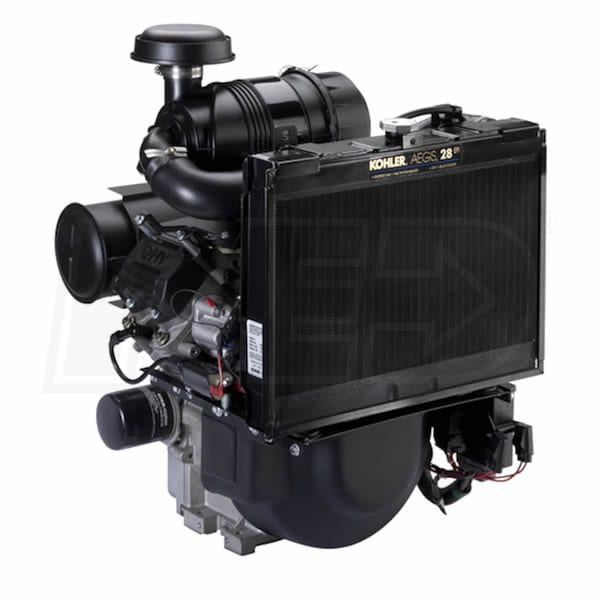

Kohler Aegis LH775 747cc 30 Gross HP EFI Liquid Cooled Horizontal Engine, 1-1/8" x 2.63" Crankshaft

Model:

PA-LH775-3012

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Kohler Aegis LH775 747cc 30 Gross HP EFI Liquid Cooled Horizontal Engine, 1-1/8
Kohler Aegis LH775 747cc 30 Gross HP EFI Liquid Cooled Horizontal Engine, 1-1/8" x 2.63" Crankshaft
Model: PA-LH775-3012
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model PA-LH775-3012- 1-1/8" x 2.63" Crankshaft
  • For use on: OD & G, agricultural & industrial equipment
  • KOHLER Aegis® LH775 Twin Cylinder Liquid-Cooled EFI 4-Cycle Horizontal Gas Engine
  • Produces 44.6 lbs./ft. peak torque- Power levels are stated gross torque per SAE J1940
  • Overhead Valve Technology Provides Greater Volumetric Efficiency And Higher Compression Ratio
  • Produces more power, improved fuel economy, reduces oil consumption
  • Virtually no carbon buildup, reducing overall maintenance costs
  • Featuring Technologically Advanced Cooling Systems And Revolutionary Air Filtration
  • Cooler oil temperatures, consistent running temperatures
  • Dual commercial air filters for peak engine performance and reliability
  • EFI (Electronic Fuel Injected)
  • Electronic fuel injection for greater fuel efficiency and easier starting
  • Automotive technology, carburetor won't gum up
  • Electrontic ignition system, solenoid shift starter, smart choke
  • Quiet, Smooth Operation
  • Silenced air intake, closed breather system
  • Cast Iron Cylinder Liners
  • Full pressure lubrication, multi-layered steel head gaskets, hydraulic valve lifters
  • Does Not Include Primary Drive Clutch, Argo Exhaust, Or Alternator Kit
  • Three-Year Limited Warranty
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

PA-LH775-3012
specs product image PID-68899
Engine
Engine Series
Aegis
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Liquid
Dry Weight
116 Lbs
CC
747 CCs
HP
30 HP
Max Torque
44.6 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.3 Inches
Stroke
2.7 Inches
Compression Ratio
8.7:1
CARB
Yes
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Carburetor
None, EFI (Electronic Fuel Injection)
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Shaft Size
1-1/8 x 2.63 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
2.63"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
6-1/8 Inches
Overview
Weight
116 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
17.0 Inches
Product Width
18.1 Inches
Product Height
26.5 Inches
Dimensions
17 x 18.1 x 26.5
