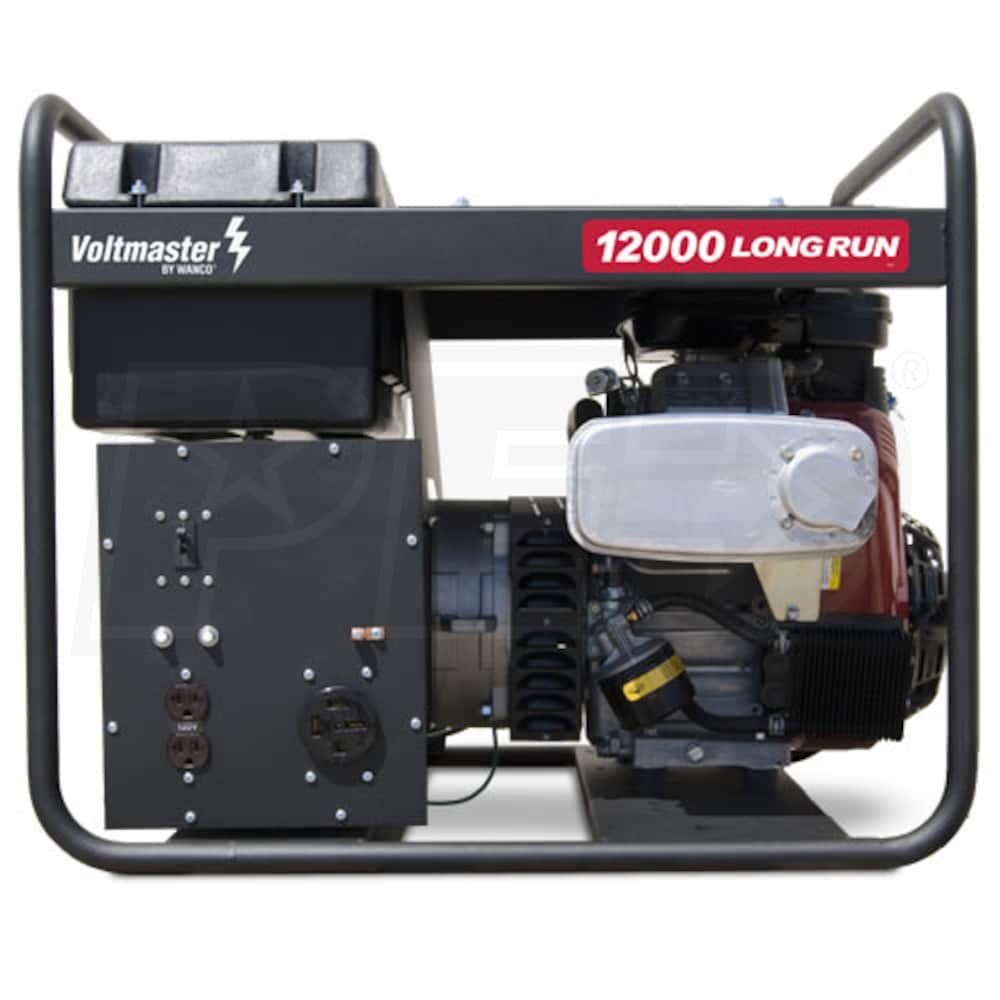

Voltmaster LR120E-480 - 12,000 Watt Electric Start Portable Generator (480V - 3-Phase)

Model:

LR120E-480

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Voltmaster LR120E-480 - 12,000 Watt Electric Start Portable Generator (480V - 3-Phase)
Voltmaster LR120E-480 - 12,000 Watt Electric Start Portable Generator (480V - 3-Phase)
Model: LR120E-480
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Portable

Run Watts

12,000 Rated Watts

Surge Watts

12,000
Starting Watts

Fuel

Gasoline

Engine

Briggs and Stratton Vanguard

  • 480-Volt Three Phase Generator
  • Perfect for powering commercial/industrial motors, boilers, etc.
  • Briggs & Stratton Vanguard Engine
  • Powerful 23-HP engine starts easily & runs smoothly
  • Electric Start w/ Recoil Backup (Battery Sold Separately)
  • Includes battery rack & cables
  • Cast Iron Cylinder Liner w/ Low Oil Pressure Shutdown
  • Provides added protection
  • Automatic Voltage Regulator
  • Prevents equipment damage & power related performance problems
  • 8-Gallon Fuel Tank Provides Extended Run Time
  • 6.9 hours @ half load & 6 hours @ full load
  • All Copper Windings, Brush Alternator
  • Provides <6% harmonic distortion
  • Added Features
  • 1" Welded steel roll cage
  • Isolated and recessed control panel
  • Magnetic circuit breakers
  • Plugs for 3-Phase receptacles
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA L16-20R
LR120E-480
specs product image PID-5754
Overview
Weight
274 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Portable Generator
Product Length
30 Inches
Product Width
24 Inches
Product Height
25 Inches
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
12000 Watts
Surge Watts
12000 Watts
Fuel Type
Gasoline
Rated Amps
18 Amps
Tank Size
8 Gallons
Run Time @ 50% Load
6.9 Hours
Fuel Tank Material
Plastic
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
77 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Key Start w/ Recoil
HP
23 HP
CC
627 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Plugs
NEMA L16-20R
1
