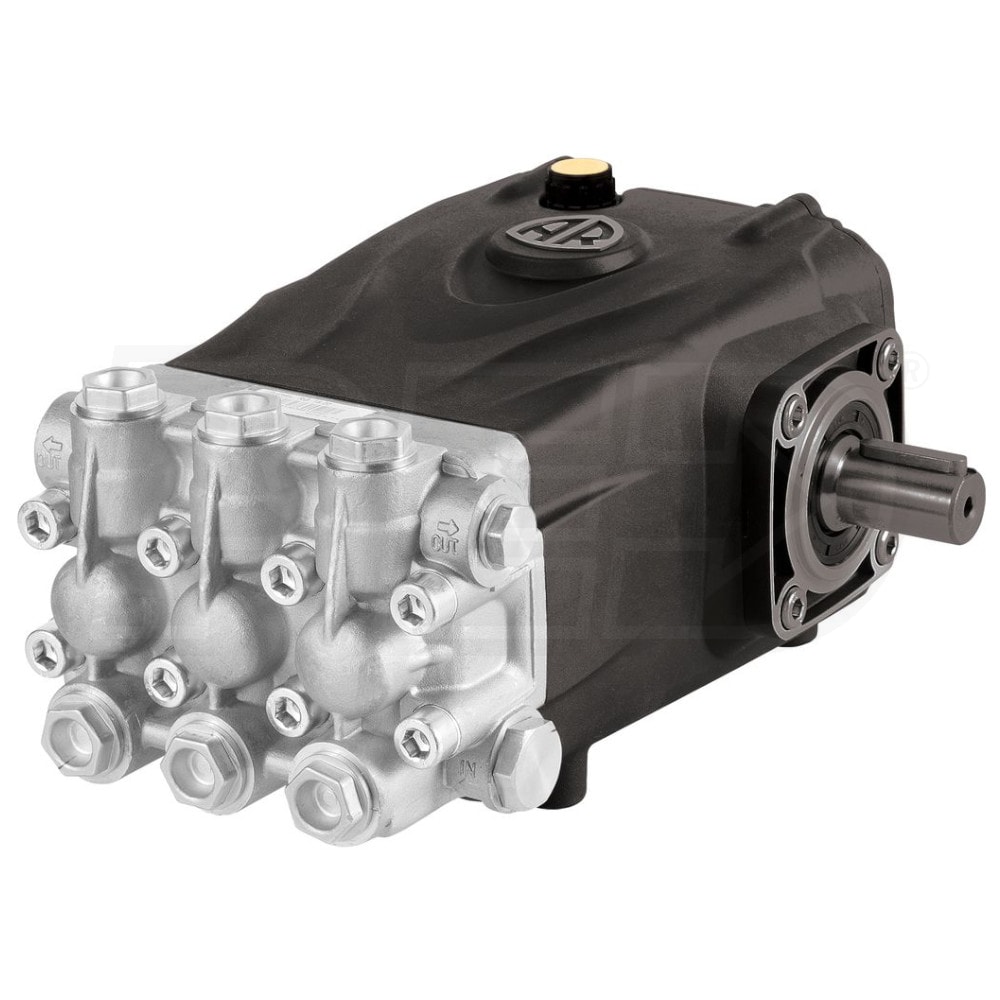

AR RG 4000 PSI 4 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)

Model:

RG1528HN

Write A Review
$429.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

AR RG 4000 PSI 4 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)
AR RG 4000 PSI 4 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)
Model: RG1528HN
$429.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Gas

Inflow

1/2" Threaded (Female)

Outflow

3/8" Threaded (Female)

  • High Quality Replacement For Worn Out Pumps
  • Professional quality at an affordable price
  • Save money by replacing the pump instead of buying a new power washer
  • Triplex Plunger Pump
  • Strong, long lasting and corrosion resistant
  • Nickel plated head suitable for a wide range of conditions
  • Constructed with frictionless aluminum connecting rods and ceramic pistons
  • Oversized, piston guides for smoother stroke and better oil seal performance
  • Extra-Thick Ceramic Plungers
  • Double gasket sealing system and lip oil seals
  • Suction and delivery valves with larger water passages.
  • Durable Components
  • Top quality, oversized tapered roller bearings
  • Ruggedly designed crankcase with deep fins for better cooling
  • Oversized shaft with long end section for better torque transmission
  • 24 x 40mm Solid Shaft Handles 1450 RPM
  • Power EBHP 11
  • Oil capacity 32 ounces
  • Max Temperature 140° F
  • Plunger bore 18mm, plunger stroke 14.6mm
  • Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
  • There is a 25% restocking fee on returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions
  • Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

RG1528HN
specs product image PID-153614
Overview
Product Category
Pressure Washer Pumps
Weight
27.5 Pounds
Consumer Warranty
5 Years
Product Length
11.7 Inches
Product Width
9.53 Inches
Product Height
5.49 Inches
Power Type
Gas
UPC
192216261549
Accessories
Pump Brand
AR
Pump Type
Triplex Plunger
Shaft Size
Belt Drive
Pump Design
Horizontal
Adjustable Pressure
No
Accessory Grade
Professional
Accessory Style
Gas
Inflow
1/2" Threaded (Female)
Outflow
3/8" Threaded (Female)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
4
Rated PSI
4000 PSI
Temperature Rating
140
Chemical Injections
Not Included
