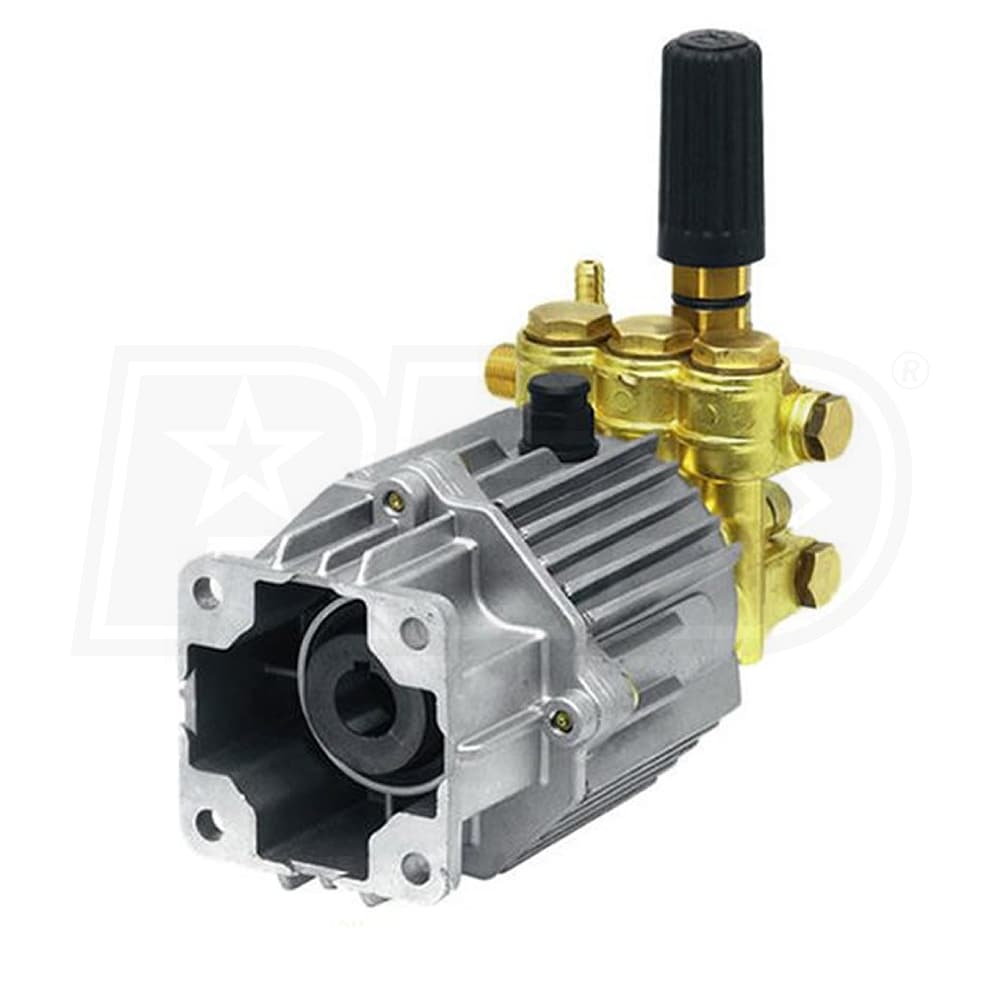

AR 2700 PSI 2.5 GPM (3/4" Shaft) Axial Pressure Washer Pump w/ Unloader

Model:

SJV25G27D-F7

Write A Review
$299.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Nov 25th
Shipping to60601

AR 2700 PSI 2.5 GPM (3/4
AR 2700 PSI 2.5 GPM (3/4" Shaft) Axial Pressure Washer Pump w/ Unloader
Model: SJV25G27D-F7
$299.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Gas

Pump Brand

AR

Outflow

3/8" Threaded (Male)

  • High Quality Replacement For Worn Out Pumps
  • Professional grade is ideal for all general cleaning applications
  • Axial Cam Pump With Unloader
  • Direct drive for convenience and durability
  • Built-in pressure control valve for optimal performance
  • Standard Matching Gasoline Mounting Flange
  • Convenient connection to most 3/4" gas engine flange
  • 3/4" hollow shaft spins at 3400 rpm
  • Bore diameter 15mm; stroke 5.8 mm
  • Water inlet: 1/2" male NPT; water outlet: 3/8" male NPT
  • 4.5 horsepower pump
  • Powerful And Versatile
  • Will push 2.5 gpm @ 2700 psi
  • Ideal for 5 to 6.5 HP engines
  • Diecast crankcase with large cooling fins
  • Seals designed to continuously self lubricate
  • Be Sure To Measure The Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee for returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions
  • Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

SJV25G27D-F7
specs product image PID-3977
Pump
Pump Brand
AR
Pump Type
Axial Cam
Adjustable Pressure
Yes
Chemical Injection
Siphon Tube
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
11 Pounds
Consumer Warranty
1 Year
UPC
192216216570
Accessories
Pump Brand
AR
Pump Type
Axial Cam
Shaft Size
3/4
Pump Design
Horizontal
Adjustable Pressure
Yes
Accessory Grade
Professional
Accessory Style
Gas
Outflow
3/8" Threaded (Male)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
2.5
Rated PSI
2700 PSI
Chemical Injections
Siphon Tube

Reviews

(10)
AR North America SJV25G27D-F7 Reviews & Ratings

Product Q&A

(7)
Expert avatar photo
Product Questions Answered by Jim, the Pressure Washer Expert
Will this fit onto a 5.5-horsepower Honda engine?
Elijah
from Michigan
October 01, 2023
What size are the threads on the inlet side of the pump? I need to get from my garden hose to the pump with an adapter.
David Allis
from Michigan
June 08, 2012
I have a Troy Built with 2.6 gpm,6.75hp,2850psi, 3/4 hollow shaft. Will the AR blue Clean #sjv25g27d fit, picture looks identical but cant see other end.
Steve
from
March 24, 2012
I hae a honda motor model number D25133 and it has a 7/8 horizontal shaft. I am looking for a AR water pump that will fit the 7/8 shaft. what do you recommend
Michael Sallus
from California
April 07, 2011
where do you add the oil in a preasure washer pump
Richard Forrester
from Alabama
April 04, 2011
Im replacing my pressure washer pump that has the part number ar xtv 3g22 with an ar sjv25g27d-f7-270. Do u know if the mounting holes are the same and if this part will even work for my pressure washer.
Kenneth E Smith
from Kansas
March 27, 2011
I need a new 2500-3000 psi pump to replace my existing. I have a 5 hp honda engine and need to know what details you need to size the correct replacement pump.
Dave Moeller
from Indiana
March 27, 2011
