Features
- Bimodal HDPE Poly Bottle
- A high density polyethylene (HDPE) bottle is corrosion-proof and provides fresh, clean water, while resisting chlorides, scale, or aggressive water.
- Mechanical Control
- This CH water heaters are equipped with a mechanical aquastat that allows for simple, reliable operation.
- Efficient Heat Exchanger
- CH's heat exchanger has a finned design that provides a more effective heat exchange and is also removable for easy cleaning and service.
- Unique Molded Insulation
- This molded insulation enhances efficiency by eliminating gaps that lead to heat loss.
For over three decades Amtrol has provided comfort, efficiency, and reliability since they introduced the industry's first indirect-fired water heater. The CH indirect-fired water heater continues to carry the values of Amtrol. These aquastat controlled water heaters quickly and effectively provide heated water throughout your home. A deep drawn dome offers unparalleled strength to the tank, while a corrosion proof high density polyethylene (HDPE) bottle keeps water clean, fresh, scale and chloride free. A removable finned heat exchanger heats up the stored water while a unique molded insulation minimizes heat loss and maintains efficiency.
Specifications
CH-41Z-B
Overview
Product Category
Water Heater - Indirect-Fired
UPC
642031632951
General Information
Type
Indirect Water Heater
Product Line
BoilerMate
Product Category
Water Heater - Indirect-Fired
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Application
Residential
Connection Type
NPT
Material
HDPE
Color
Blue
Capacity
41 Gallons
Performance
First Hour Delivery
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
170 Gallons
Continuous Recovery Rate
173 Gallons
Maximum Operating Temperature
180 F
Dimensions
Connection Size
3/4 Inch
Product Diameter
22 Inches
Product Height
48 Inches
Product Weight
124 Pounds
Shipping Height
48 Inches
Shipping Width
22 Inches
Shipping Length
22 Inches
Shipping Weight
124 Pounds
Certifications
Country of Origin
United States
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
6 Years
Reviews
(1)
Amtrol CH-41Z-B Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Ken, the eComfort Product Expert
Please explain "indirect fired." Does it need to be connected to a existing boiler?
Fernando
from District of Columbia
September 13, 2015
How-To Articles
An Intro to Indirect Water Heaters
If you heat your home with a boiler, you have the opportunity to get the most e...
Signs You Need a New Water Heater
You’ve heard the stories. A 60-gallon hot water heater tank ruptures, flo...
How to Pick the Perfect Tankless Water Heater
Imagine an unlimited supply of hot water. That's the tankless promise. Mo...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

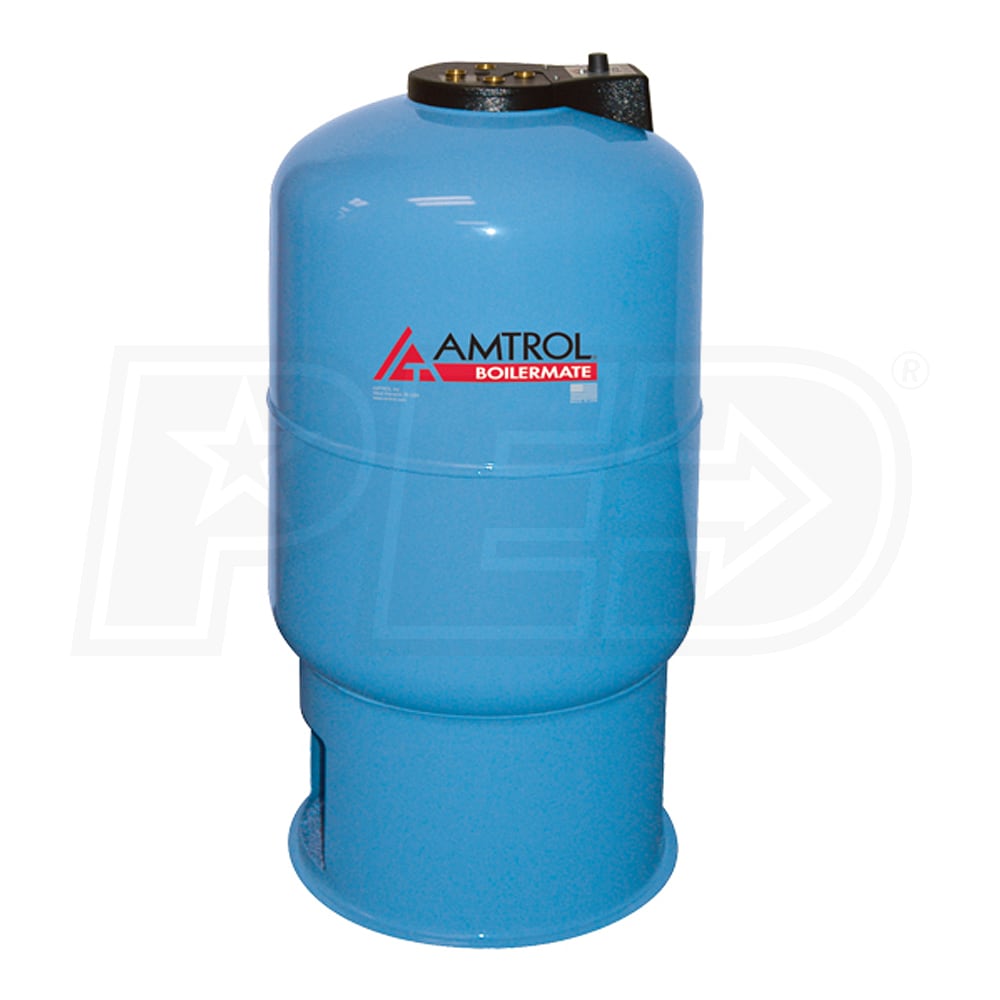

Amtrol CH-41Z - 41 Gallon - Indirect Water Heater - Blue
