Features
- Dependable 223cc Ariens AX223 4-Cycle Engine
- Controls and buttons are large, easy to see and user-friendly
- Snow guards keep snow and ice from vital controls and linkages
- Throws snow from 3 ft. up to 40 ft.
- Ariens' Exclusive Disc-O-Matic Drive System
- Easily shift into any of the six forward or two reverse speeds
- Cast iron gear case is covered by a five-year warranty
- 120 Volt Electric Start w/ Recoil
- Save your back and shoulders by simply pressing a button
- Cord not included on the electric start feature
- All-Steel Construction
- Handlebars, dash, housing, skid shoes, and multidirectional chute are all steel
- 205 Degree Chute Turning Radius
- Easily direct snow away from all walkways and drives
- Quick turn design makes chute aim a breeze
- Remote Chute Deflector
- Adjust discharge chute up and down from the operator position
- Large Directional Snow Track Tires
- Creates an ideal grip when it gets slippery
- Increases mobility and agility
- In-Dash Halogen Headlight
- Helps you see what's in front of you on the darkest winter nights
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
920029
Engine
Engine Brand
Ariens
Electric Start
Yes
Engine Type
4-Cycle OHV
CC
223 CCs
Starting System
120-Volt Electric /w Recoil
Auger Housing / Chute Control
Stage Type
Two-Stage
Auger Diameter
11 Inches
Impeller Diameter
12 Inches
Profile
Steel 3-Blade
Auger Material
Serrated Steel
Chute Material
Steel
Chute Rotation
Quick-Turn
Turning Radius
210 degrees
Max Throwing Distance
40 Feet
Clearing Width
24 Inches
Intake Height
20 Inches
Drive System
Drive
Disc-O-Matic
Steering
Auto-Turn
Gear Case
Cast Iron
Reverse Speeds
2 Reverse
Tire Type
Directional Snow Tread
Tire Size
15" x 5"
Forward Speeds
6 Forward
Options
Headlights
No
Remote Deflector Controls
Yes
Skid Shoes
Included - Reversible
Overview
Weight
187 Pounds
Consumer Warranty
3 Years
Commercial Warranty
90 Days
Product Length
53.8 Inches
Product Width
26.4 Inches
Product Height
44 Inches
Power Type
Gas
Reviews
(6)
Ariens 920029 Reviews & Ratings
How-To Articles
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

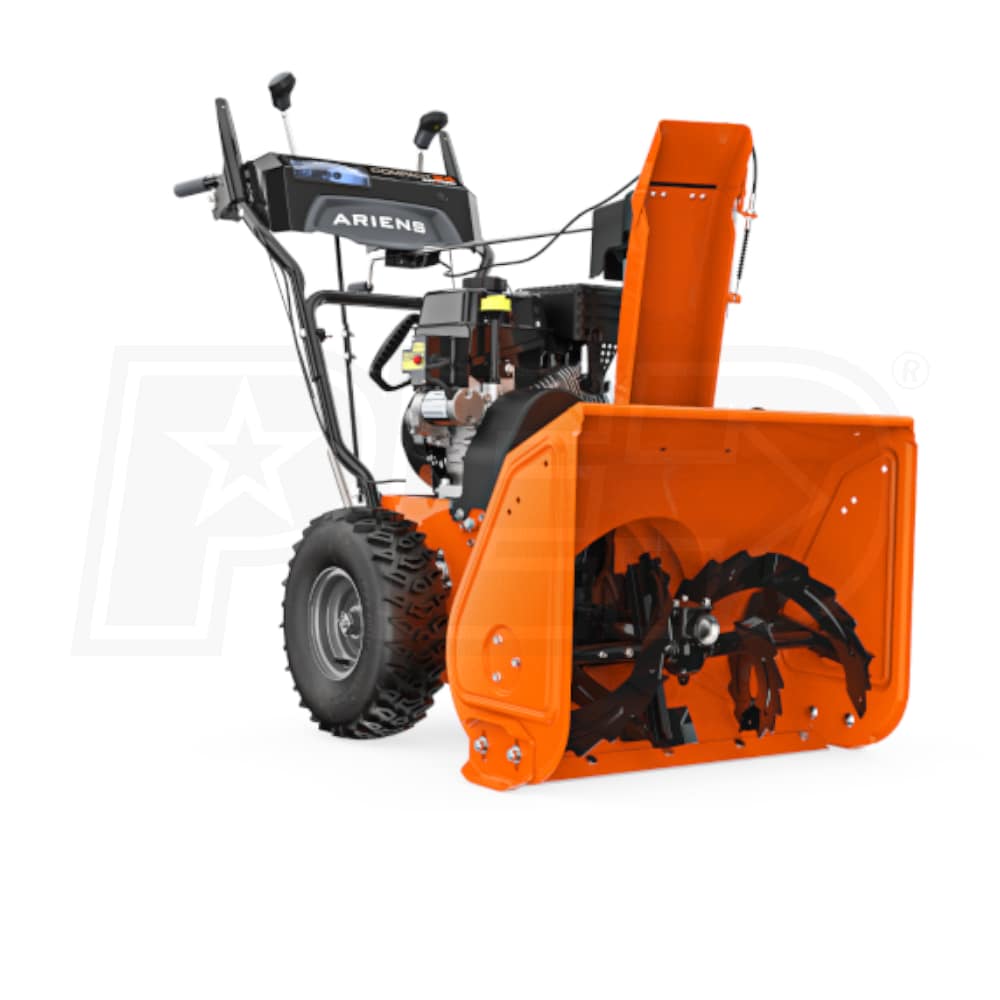

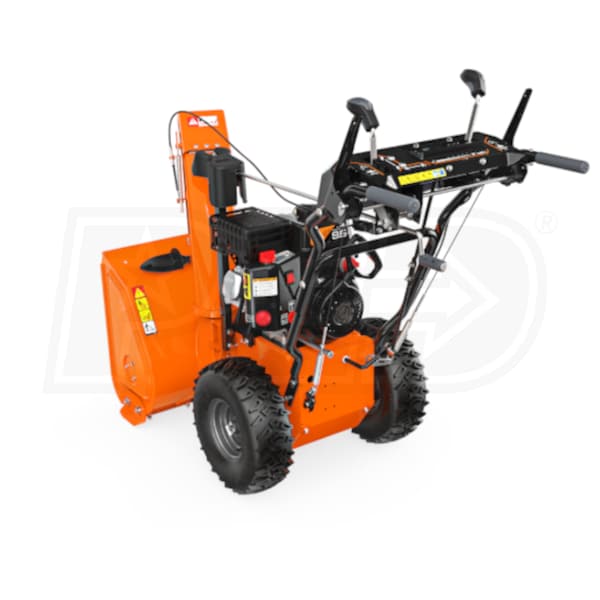

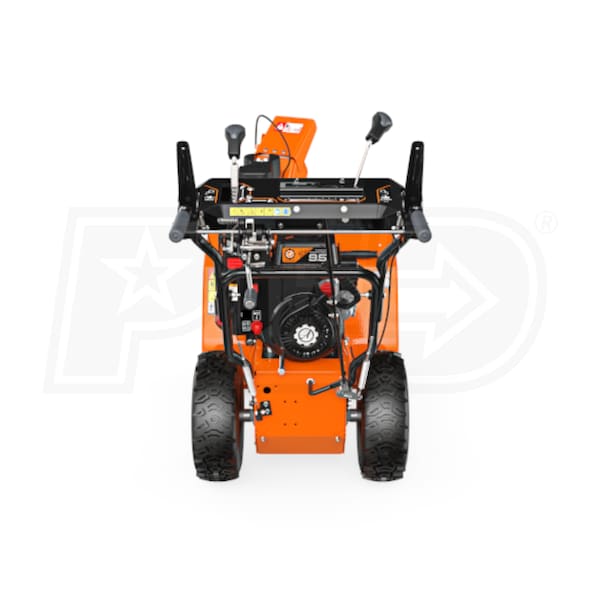

Ariens Compact (24") 223cc Two-Stage Snow Blower
