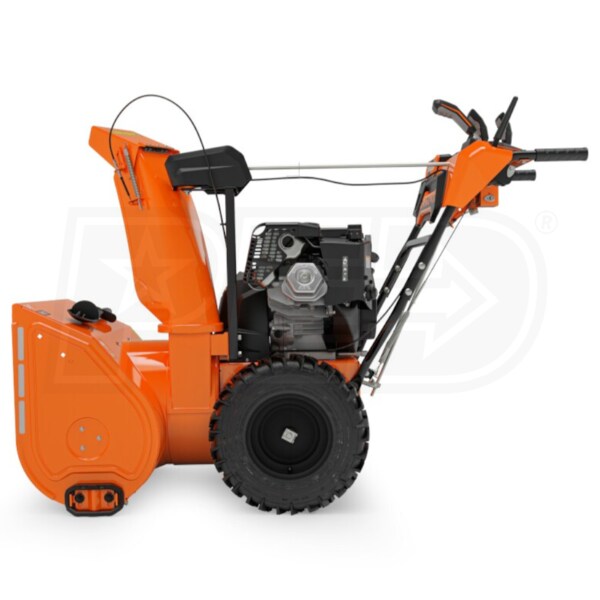

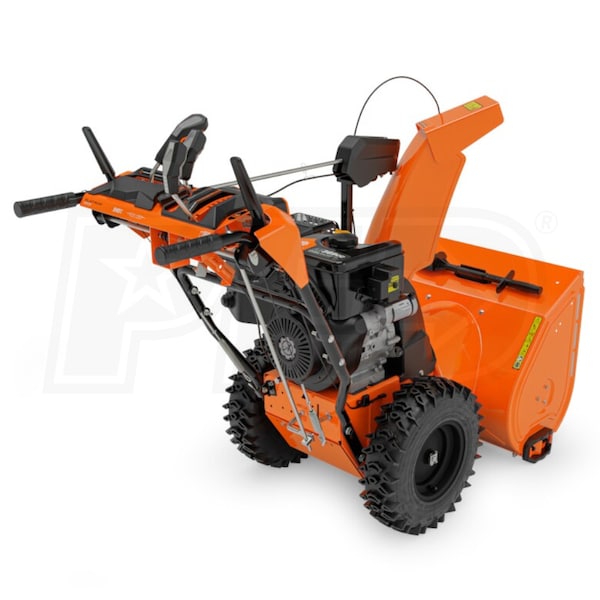

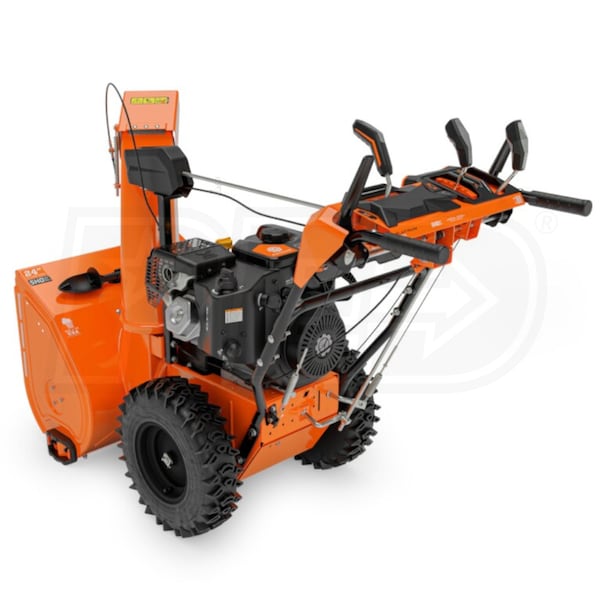

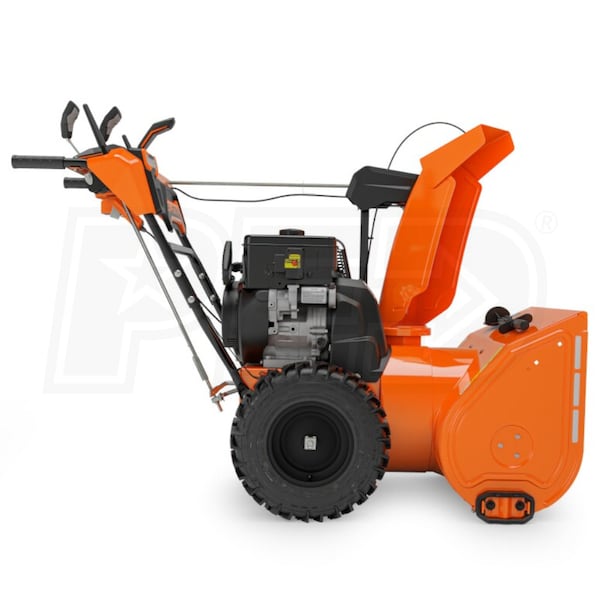

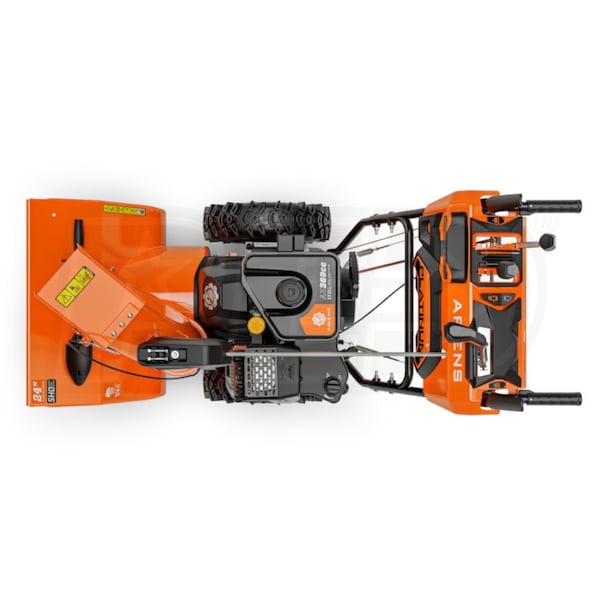

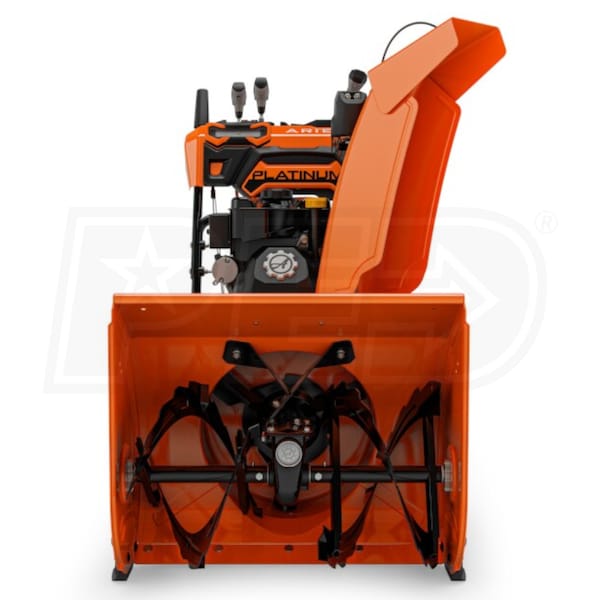

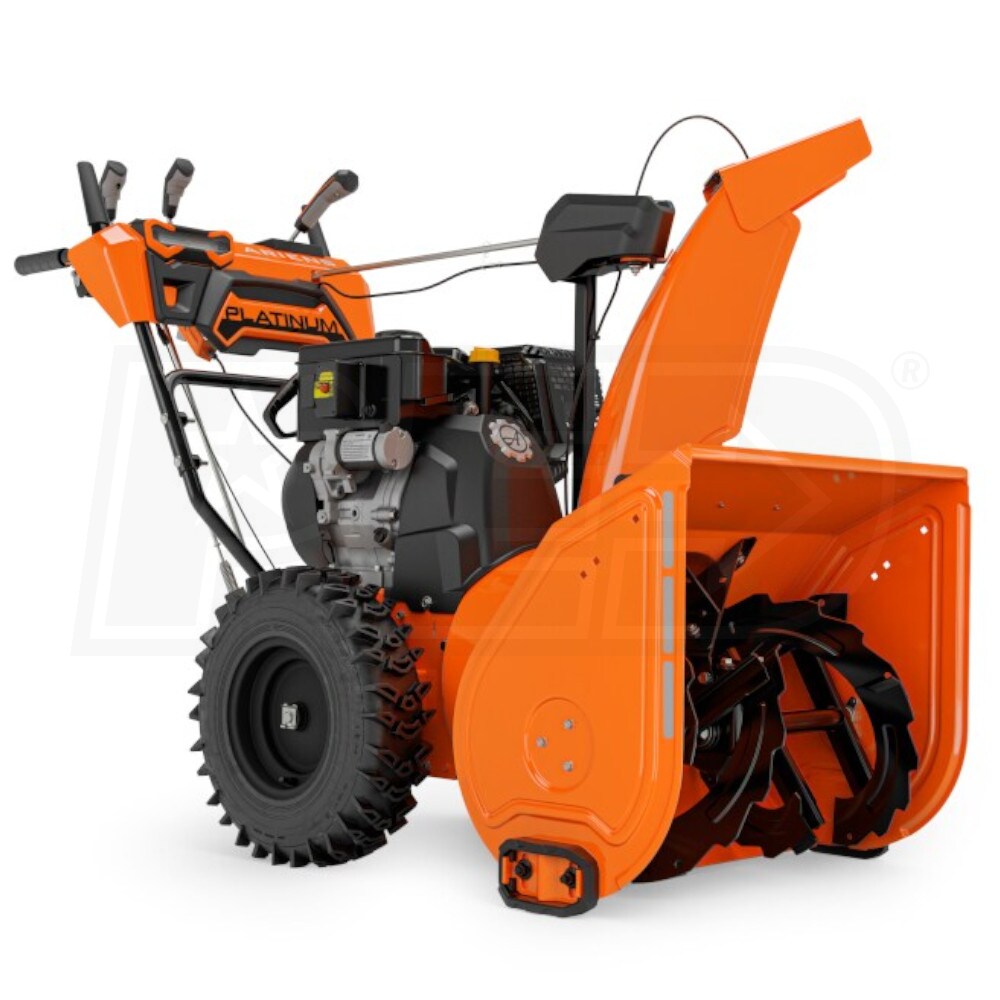

Ariens Platinum 24 SHO (24") 369cc Two-Stage Snow Blower

Model:

921063

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Ariens Platinum 24 SHO (24
Ariens Platinum 24 SHO (24") 369cc Two-Stage Snow Blower
Model: 921063
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Powerful 369cc Ariens AX 4-Cycle Engine
  • Designed to thrive in sub-zero conditions
  • 120-volt electric start with recoil backup (power cord not included)
  • Dual belt drive increases engine torque while minimizing belt wear and tear
  • Auto-Turn™ Steering Technology
  • Automatically senses the direction of your turns
  • Adjusts power to the inside track to make turning easier
  • Super High-Output Impeller (SHO)
  • Belts and pulleys designed and modified to optimize impeller speed
  • Increases the overall output and throwing distance
  • Disc-O-Matic Drive System & Large Cast Iron Gear Case
  • Easily shift into any of the six forward or two reverse speeds
  • Quick Turn Chute Control
  • Rotate the chute up to 200 degrees using a single lever
  • Remote Chute Deflector Control
  • Dash-mounted control to change position & angle of the deflector
  • Heated Handgrips
  • Keeps your fingertips toasty warm in sub-zero weather
  • A must-have feature for large jobs on those frigid days

Specifications

921063
specs product image PID-114100
General Information
Product Category
Snow Blower - 2-Stage
Engine
Engine Brand
Ariens AX
Electric Start
Yes
Engine Type
4-Cycle OHV
CC
369 CCs
Starting System
120-Volt Electric /w Recoil
Fuel Tank
0.74 Gallons
Auger Housing / Chute Control
Stage Type
Two-Stage
Auger Diameter
14 Inches
Impeller Diameter
14 Inches
Profile
Steel 3-Blade
Auger Material
Serrated Steel
Chute Material
Steel
Chute Rotation
Quick-Turn
Turning Radius
200 degrees
Max Throwing Distance
55 Feet
Clearing Width
24 Inches
Intake Height
21 Inches
Drive System
Drive
Disc-O-Matic
Steering
Auto-Turn
Gear Case
Cast Iron
Reverse Speeds
2 Reverse
Tire Type
Directional Snow Tread
Tire Size
16" x 4.8"
Forward Speeds
6 Forward
Options
Drift Cutters
Sold Separately
Hand Warmers
Yes
Headlights
Yes
Headlight Type
LED
Remote Deflector Controls
Yes
Skid Shoes
Included - Reversible
Overview
Product Category
Snow Blower - 2-Stage
Weight
286 Pounds
Consumer Warranty
3 Years
Commercial Warranty
90 Days
Product Length
58.3 Inches
Product Width
26.4 Inches
Product Height
45.9 Inches
Power Type
Gas
UPC
751058046471
