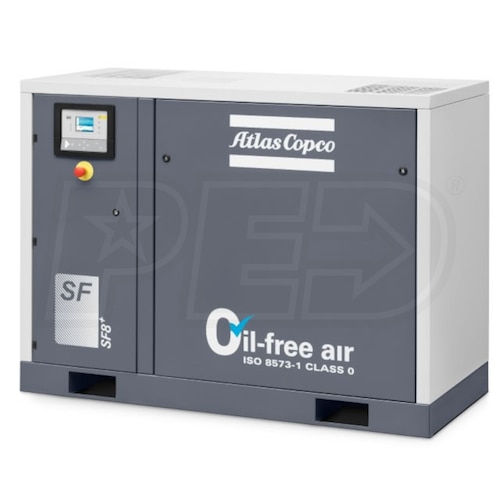

Atlas Copco SF8+ AP LC 5-HP / 10-HP Tankless Oil-Free Multi Scroll Air Compressor w/ Elektronikon Controller (460V 3-Phase 100 PSI)
Model:
8153602506
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
460 Volt AC
Phase
3-Phase
CFM
28.4
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Pure ISO 8573-1 CLASS 0 Certified Oil-Free Air (Not For Medical Use)
- Class 0 means zero risk of contamination; zero risk of damaged or unsafe products; zero risk of losses from downtime
- Scroll compressors have no metal to metal contact, so there's no need for oil lubrication in the compression chamber
- Modular Multi-Scroll
- Two modules are integrated in one canopy with smart controls to match output to air demand
- Elektronikon® Mk5 Graphic Controller
- 3.5" color display for easy visualization of status, performance, service interval, & parameter settings
- Variable Flow Technology (VFT)
- Automatically starts and stops the scroll elements to exactly match the demands of your compressed air system
- Super Silent Acoustic Enclosure
- Extremely low noise levels as low as 63 dBA allows the compressor to be installed directly into the work environment
- Energy Efficient IE3 TEFC IP55 Class F Motor
- Suited for sensitive applications which require flexibility and energy efficiency
- Scroll Compressor Elements With Air Cooled Aftercooler
- Delivers 100 PSI with proven durability & reliability along with solid efficiency; vertical setup improves cooling
- Integrated Vertical Design
- A minimal number of moving parts ensure reliable performance & easy serviceability
- Air inlet paper cartridge filter eliminates dust & particles down to 1 micrometer
- 1 Year Bumper To Bumper Factory Warranty
- Protects your investment
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
8153602506
General Information
Product Category
Air Compressor - Stationary
Engine
HP
10
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63
Amp Draw
14
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
28.4
CFM Rated @
100 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
100 PSI
Pump Type
Scroll Compressor
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Included
No
Tank Outlet
1 Inch
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
820 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
65 Inches
Product Width
30 Inches
Product Height
49 Inches
