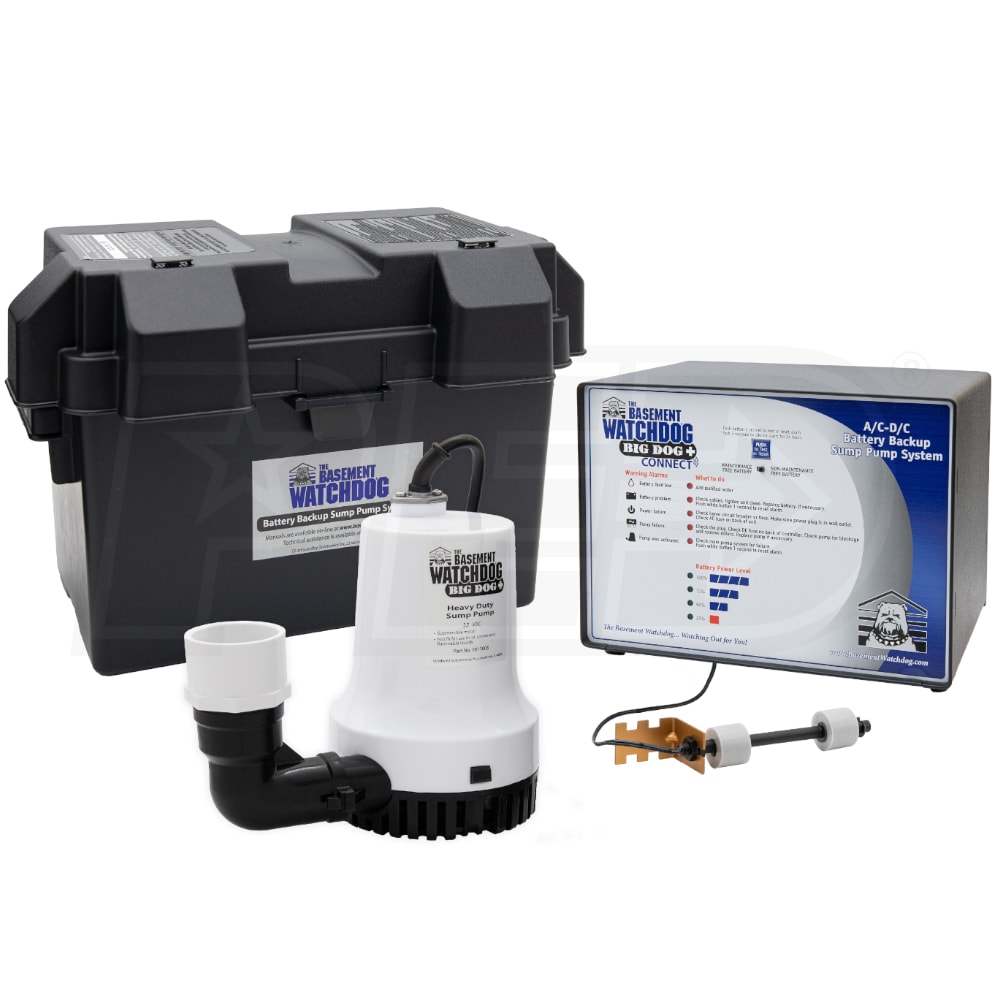

Basement Watchdog BWD12120C - Big Dog CONNECT® Backup Sump Pump (2200 GPH @ 10')
Model:
BWD12-120C
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Back-up
GPH
3500 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Protect Your Basement from Flooding
- Automatically starts when your existing sump pump fails
- Senses power outages, malfunctions, stuck floats and more

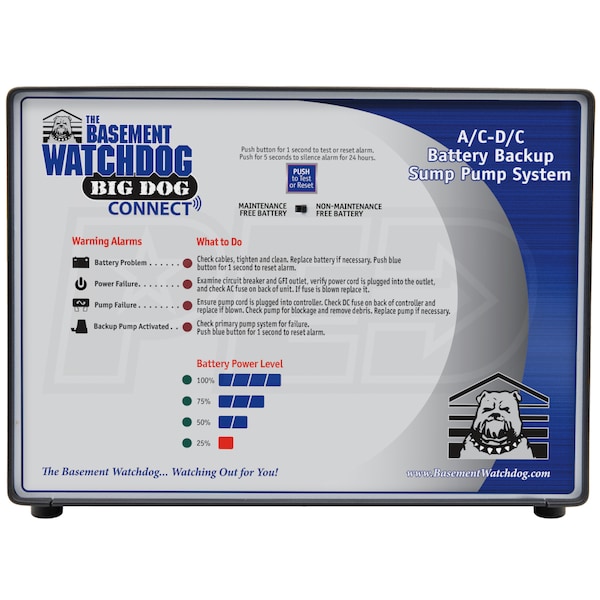

- Computer-controller monitors power conditions and battery level
- Exclusive Monitoring System w/ Weekly Self-Test
- Indicator light displays remaining battery strength
- Sounds alarm & flashes during failure or required maintenance
- Backup Sump Pump
- Empties the sump pit in seconds after a malfunction or outage
- Pumps 3500 gallons-per-hour @ 0' lift (or 2200 GPH @ 10' lift)
- Runs on 120-volt AC power when power is on
- Switches to 12-volt DC battery power when AC power fails
- 20-Amp Battery Charger
- Quickly recharges battery when power is restored
- Shuts off completely to prolong the life of the battery
- Dual Float Switch
- Turns on the pump to make sure its working
- Added redundancy for protection and piece of mind
- Only needs to move 1/4" to activate the pump
- USB Port For Connection to Watchdog / Pro Series Wifi Module
- Allows for advanced notification and system status
- Requires Watchdog / Pro Series Wifi Module (Sold Separately)
- BATTERY & BATTERY ACID IS SOLD SEPARATELY
- For Indoor Use Only
The Basement Watchdog Big Dog CONNECT® Computer-Controlled AC/DC Battery Backup Sump Pump System is a top of the line backup sump pump with a built-in monitoring system, a dual float switch, high capacity and an energy-efficient pump that automatically protects your basement when needed. This high-powered system-pumping up to 3,500 GPH--can take over for your primary pump, if necessary, so you're never without a way to pump water. With the purchase of the BW CONNECT® Module, text and email alerts will be sent to you automatically in case of any issue or maintenance needs. That's reliability you can count on!
Specifications
BWD12-120C
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Motor
Voltage
12 Volt DC/120 Volt AC
Running Amps
10
Battery Included
No
Starting Amps
12
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
3500
GPH @ 10 feet
2200
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Battery Recharger
20 Amps
Overview
Product Category
Sump Pump
Weight
30 Pounds
Consumer Warranty
2 Years
Product Width
9 Inches
Product Height
7.625 Inches
UPC
717301121203
Additional Model Numbers
BWD12120C, BWD12-120C
Accessories
Alarm
Yes
Wi-Fi enabled
No
Reviews
(11)
Basement Watchdog BWD12-120C Reviews & Ratings
Product Q&A
(8)
Product Questions
Answered by Jim, the Sump Pump Expert
Looking down the road, if and when the pump fails / wears out, would I be able to replace it or do I need to replace the entire unit? Hence, would I be able to use the power inverter or controller with other pumps? Thanks.
Larry
from Illinois
January 22, 2014
I am interested in the 2 battery system back up sump pump. Can I install this myself.+ I am fairly profecient .
JIm Dreyer
from New Jersey
June 23, 2012
Will the watchdog big dog bwd12120c pump out water at 20ft.
Jim W.
from Minnesota
March 24, 2012
Can this Big Dog System be run using 2 batteries in series for longer run time?
Howard Mark
from Pennsylvania
May 20, 2011
I currently have the small emergency backup sump pump (watchdog), which no longer works. I am looking to replace it with watchdog big dog backup system. Would the discharge pipe have to be modified to accommodate the new pump? Also, I just replaced the (6 hour)battery last year and it seems fine. Would it be possible to use this battery with the more powerful pump?
Bill
from Ohio
March 05, 2011
I have pumps and only want the battery backup electronic system. can i buy just the battery backup without the pump?
Bob Braga
from Massachusetts
February 12, 2011
Do I need to leave my battery backup system charging at all times?
Patrick Mcclone
from Wisconsin
January 03, 2011
how many hours backup does this provide in case the power goes out. we are looking for a 24 hour back up pump.
Diana
from New Jersey
January 03, 2011
