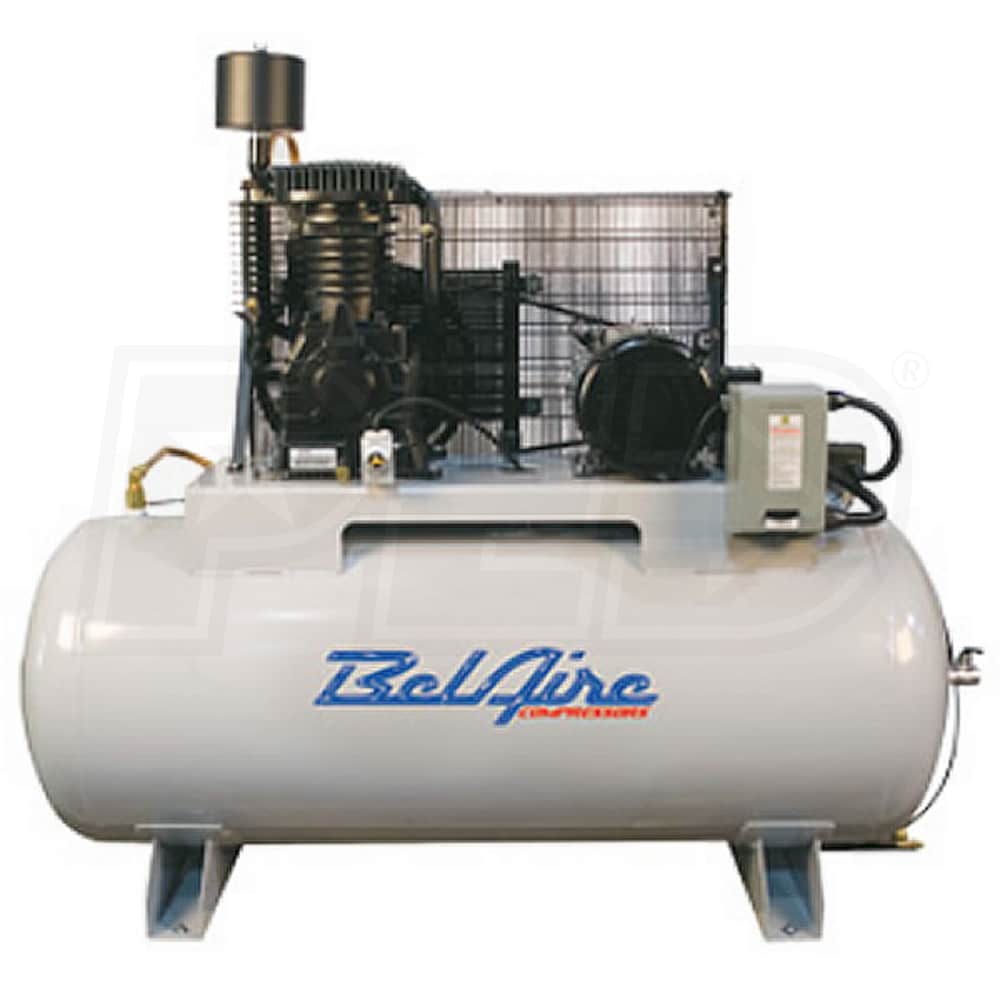

BelAire 5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)

Model:

338H4

Write A Review
$2,829.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 12-16 Weeks

BelAire 5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)
BelAire 5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)
Model: 338H4
$2,829.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

460 Volt AC

Phase

3-Phase

CFM

18.5

Tank Size

80

  • Solid Cast Iron Cylinder 2 Stage Pump
  • Delivers 18.5 CFM at 100 PSI
  • Rugged components provide long-lasting dependability
  • Start / Stop Pressure Switch Controls
  • Save time & energy
  • ASME Tank & Safety Valve
  • 80 gallon air reserve for big jobs or multiple users
  • 3/4" air outlet; 175 PSI maximum pressure
  • 2 Year Bumper To Bumper Factory Warranty
  • No additional purchase necessary
  • Fully Enclosed High-Flow Belt Guard
  • Protects the belt & the operator
  • Manual Air Tank Drain
  • Makes tank simple to maintain
  • 460 Volt Three Phase Power
  • Easily wires into your 460V-3 system
  • CPXHT25 dryer recommended (not included)
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

338H4
specs product image PID-11445
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
15 Amp Breaker
Engine
HP
5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18.5
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
471 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
71 Inches
Product Width
24 Inches
Product Height
49 Inches
Power Type
Electric
