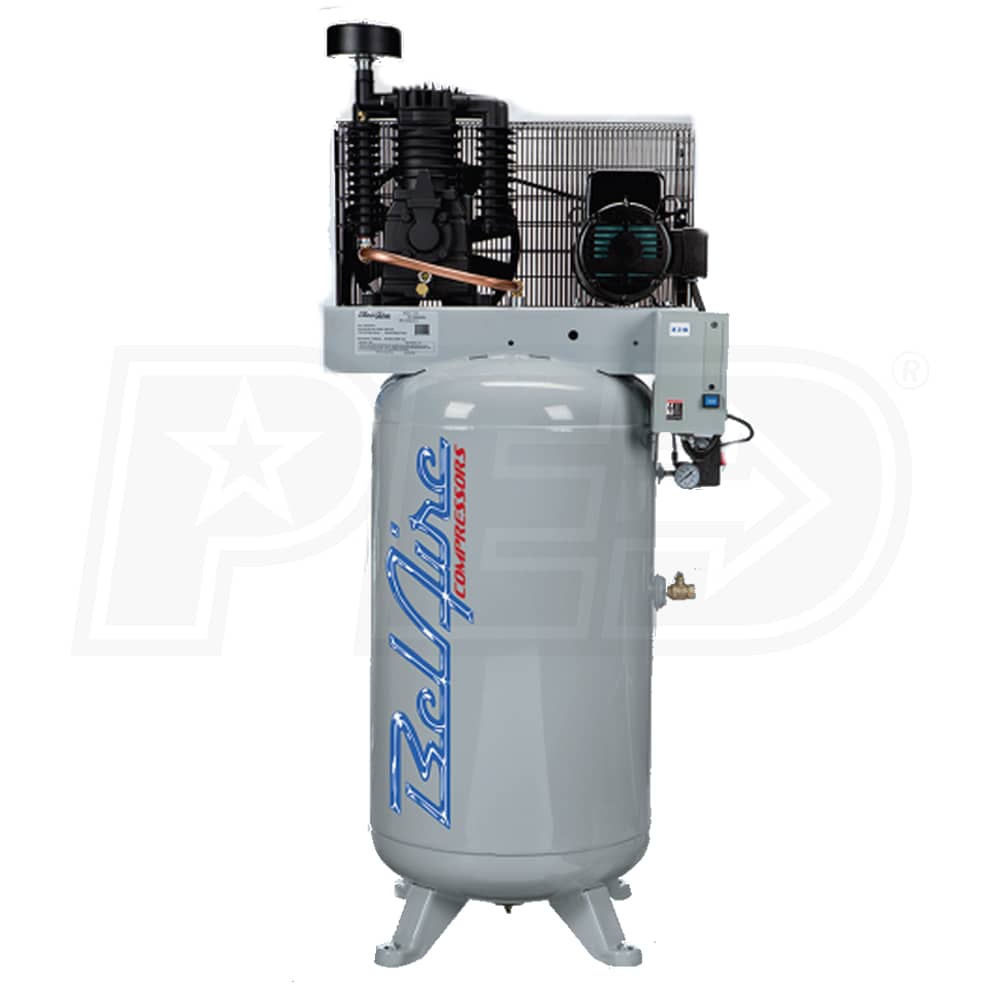

BelAire 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 3-Phase) w/ Magnetic Starter
Model:
338V
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208-230 Volt AC
Phase
3-Phase
CFM
18.5
Tank Size
80
- Two-Stage Hybrid Pump
- Designed for superior quality & extends the life of the pump
- Compact Design
- Ideal for work environments where space is a premium
- 5-HP Three-Phase Motor (208-230V) w/ Magnetic Starter Included
- No need to purchase additional starter
- 80-Gallon ASME Certified Vertical Air Tank
- 100% factory tested at full pressure
- High Flow Belt Guard
- Fully enclosed design provides added safety
- Oil Level Sight Glass
- Easily check the oil level at any time
- Start-Stop Pressure Switch Control
- Saves time and energy
- Stainless Steel Valves
- Extends the life of the compressor
- 3/4" air outlet works with many systems
- 2 Year Factory Warranty
- Protects your investment
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
338V
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
457 Pounds
Certification
ASME
Consumer Warranty
2 Years
Product Length
39 Inches
Product Width
24 Inches
Product Height
77 Inches
Power Type
Electric
