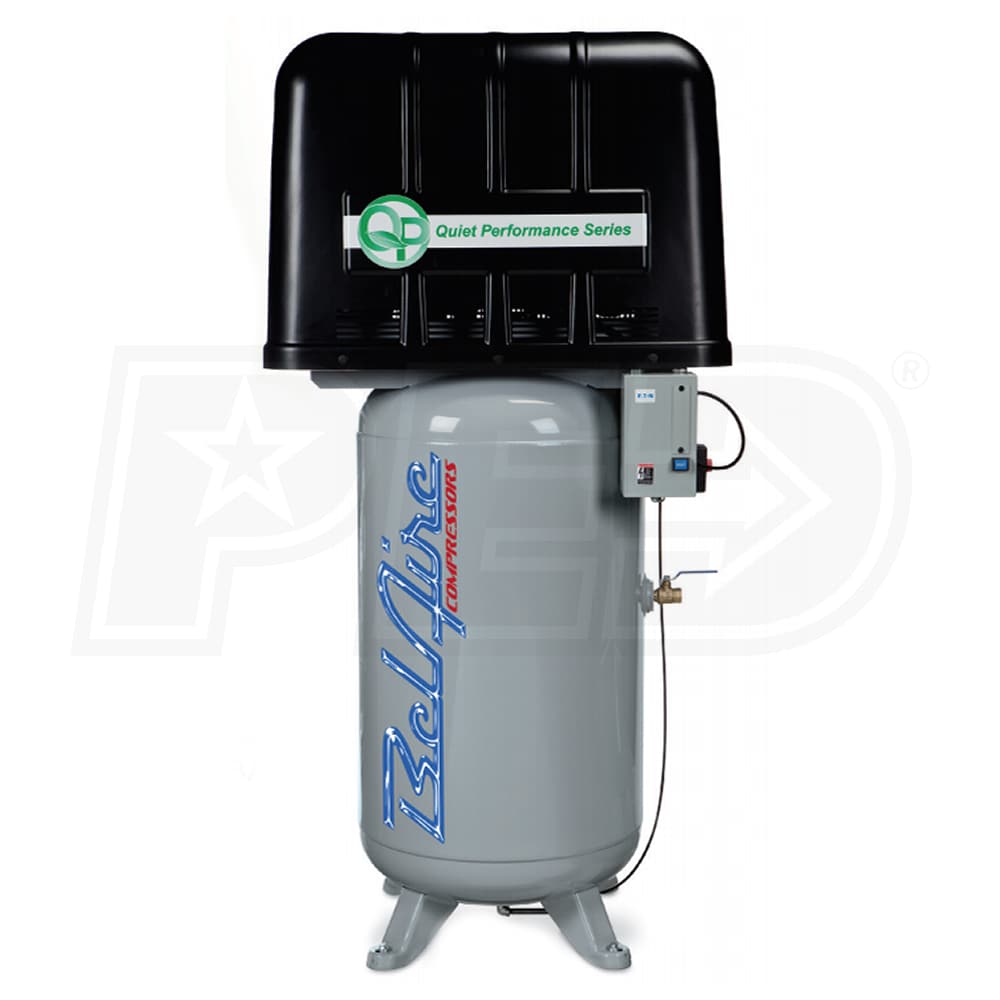

BelAire 5-HP 80-Gallon Two-Stage Quiet Performance Air Compressor (208-230V 3-Phase)

Model:

QP338VE

Write A Review
$4,509.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

BelAire 5-HP 80-Gallon Two-Stage Quiet Performance Air Compressor (208-230V 3-Phase)
BelAire 5-HP 80-Gallon Two-Stage Quiet Performance Air Compressor (208-230V 3-Phase)
Model: QP338VE
$4,509.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230 Volt AC

Phase

3-Phase

CFM

18.5

Tank Size

80

  • Quiet Compressor Air System
  • A piston air compressor with the noise level of a rotary screw
  • Compact Design
  • Ideal for work environments where space is a premium
  • 5-HP Three-Phase Motor (208-230V) w/ Magnetic Starter Included
  • Saves money, no need to purchase additional starter
  • Low Sound Enclosure
  • As low as 66 dbA, designed for a greener workplace
  • Less than half the noise of a standard piston compressor
  • High Strength ABS Enclosure & High Flow Fan
  • Keeps the compressor running cooler and quieter
  • Cast Iron Cylinder
  • Designed for superior quality & extends the life of the pump
  • 80-Gallon ASME Certified Vertical Air Tank
  • 100% factory tested at full pressure
  • Added Features
  • Low Oil Level Protection & High Temperature Shut Dow
  • Automatic Pressurized Tank Drain (Not Electronic)
  • ASME Safety Valves & Integrated Aftercooler
  • Shipped "Wet", Ready To Use
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

QP338VE
specs product image PID-4799
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
66
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
513 Pounds
Certification
ASME
Consumer Warranty
2 Years
Product Length
38.2 Inches
Product Width
24.3 Inches
Product Height
80 Inches
Power Type
Electric
