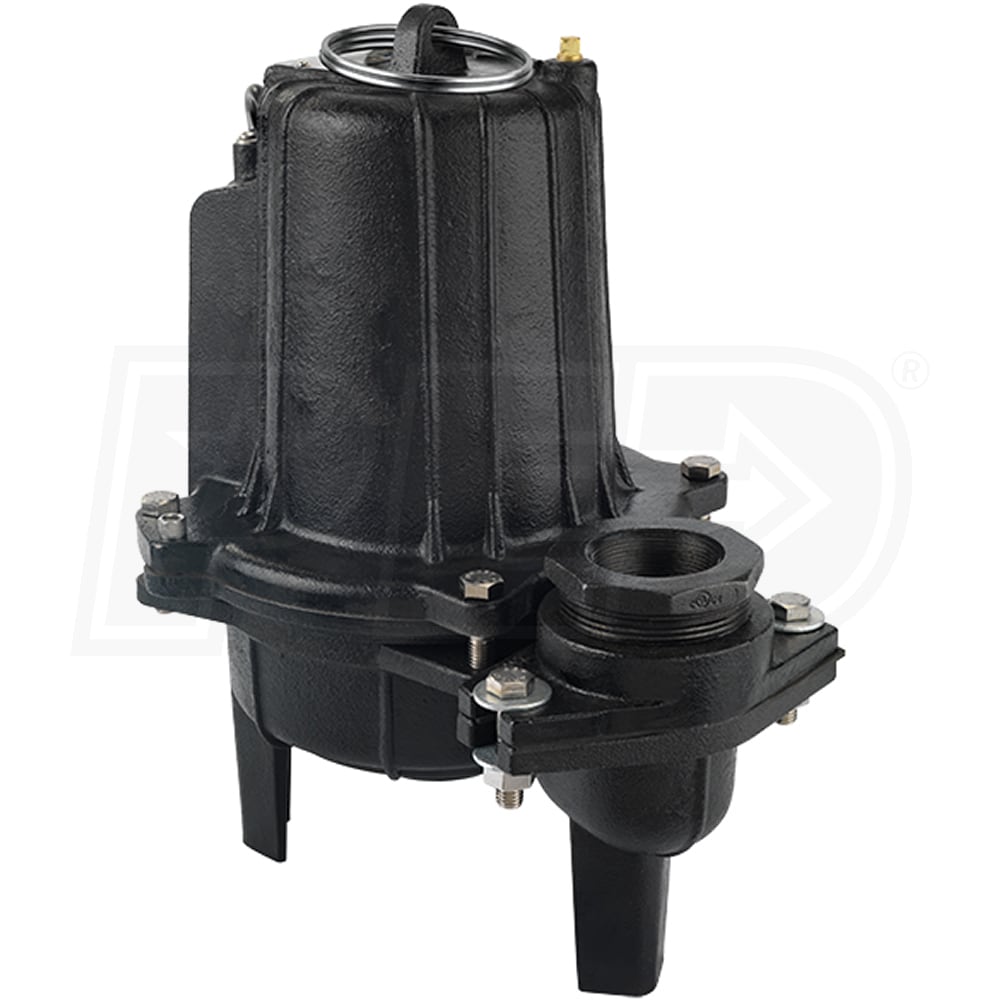

Blue Angel Pumps - 2 HP All Cast Iron Commercial-Grade Sewage Pump (2"/3") (240V - Non-Automatic)
Model:
200SW
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Sewage Pump
GPH
12900 Gallons
Switch Type
None
- 200SW - Blue Angel 2 HP Commercial-Grade Submersible Sewage Pump (240V)
- Assembled in the USA, with foreign and domestic parts
- *Non-Automatic* - Requires Control Box or Float Switch
- Cast Iron Motor Housing, Seal Plate & Volute
- Provides maximum durability and longevity in harsh sewage applications
- Stainless Steel Motor Shaft & Fasteners
- Robust design for extended pump life in high-volume sewage applications
- 2 HP Permanent Split Capacitor (PSC) Motor *240V*
- Oil-Filled, thermally protected to prevent overheating and burnout
- 3-Inch NPT Discharge w/ 2-Inch Discharge Adapter
- Capable of passing 2" spherical solids
- For use in 18" Diam. or larger sewage basins
- Heavy-Duty, 2-Vane Cast Iron Impeller
- Allows for high-volume discharge of 230 GPM @ 15'
- Carbon / Ceramic Shaft Seal
- Helps ensure increased durability in demanding sewage applications
- Heavy-Duty Upper/Lower Ball Bearings
- Allows for smooth, quiet operation and longer pump life
- 20 ft. SJTW Power Cord* w/ Neoprene Grommet (No Plug)
- Oil and water resistant that won't degrade overtime
- *Requires hardwired connection
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
200SW
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
240 Volt Single-Phase
Running Amps
12
Thermal Protection
Yes
Oil Free Motor
Yes
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
12900
GPH @ 5 feet
12900
GPH @ 10 feet
12900
GPH @ 15 feet
11100
GPH @ 20 feet
6600
Discharge Port Size
3 Inch
Check Valve Included
No
Manual Override
Yes
Max Head
40 Feet
Min Head
10 Feet
Engine
Oil-Cooled
Yes
Horsepower
2 HP
Overview
Weight
104 Pounds
Consumer Warranty
3 Years
Product Length
15.408 Inches
Product Width
11.957 Inches
Product Height
17.557 Inches
UPC
040066216298
