Bosch T9800 SE 199 - Residential 199,000 BTU - Natural Gas Tankless Water Heater - Indoor
Model:
T9800 SE 199
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
14
Model: PPKIT-3HC-78
Maximum Straight Run (Inches)
$374.00
$29.12
Only 2 In-Stock
Model: ScaleRx34
$150.00
In-Stock
Model: 7736504944
$129.00
Model: PPS-PAC
$21.28
Model: 44443WPR
$113.00
In-Stock
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quantity
$24.50
In-Stock
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quantity
$205.00
In-Stock
Model: PPKIT-2VC-42
Maximum Straight Run (Inches)
$450.00
Model: PPKIT-3VS-78
Maximum Straight Run (Inches)
$374.00
Model: PPKIT-2HS-18
Maximum Straight Run (Inches)
$150.00
Model: PPKIT-3HT-54
Maximum Straight Run (Inches)
$365.00
Features
Fuel
Natural Gas
Location
Indoor
# of Showers
3.2
UEF
0.96
Energy Star Certification
Yes
- Optiflow Mangement Technology
- This water heater features Bosch's Optiflow system, which uses self-calibrating sensors to automatically configure flue length, gas type, and altitude without a gas analyzer.
- Easy to Install

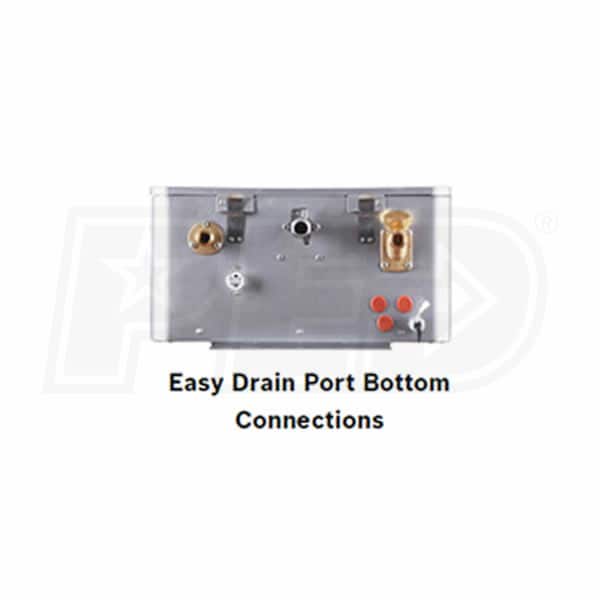

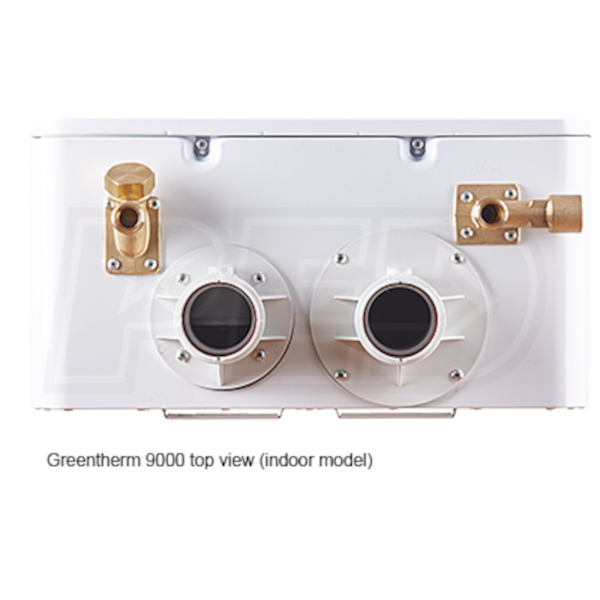

- Bosch Greentherm water heaters come with a flexbile and compact plug n' play design, top hyrdaulic connections, and bottom flush ports making them perfect to replace old tank-type heaters.
- Built-In Digital Control Panel
- The Greentherm tankless hot water heaters have a digital control panel on the front of your unit to adjust temperature and to make sure your system is running properly.
- Active Bypass
- The Greentherm models all come with an automated, fully modulating bypass for temperature stability to ensure you have a constant accurate temperature.
- Convenient Gas Hook Up
- The ability to use an existing 1/2" gas line makes the Greentherm an ideal option for storage tank retrofits.
- Optional Wi-Fi Control
- Control your water heater with the push of a button using Bosch's Wi-Fi app, available in the Apple Store and Google Play.
Bosch's Greentherm tankless water heaters provide whole home hot water while featuring some the best efficiency ratings on the market. Greentherm water heaters boast an impressive .99 Uniform Energy Factor, which allows them to meet your hot water needs while not draining your wallet. The 9000 series features Bosch's plug n' play design making installation a breeze when paired with its multiple venting options. Optional Wi-Fi connectivity gives you complete control of your hot water at your fingertips.
Product Note
Optional Wi-Fi controls require the Bosch 7736504944 Wi-Fi Module, a working internet connection, and appropriate Bosch app which can be found on the Apple Store and Google Play.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
T9800 SE 199

Overview
Product Category
Water Heater - Tankless
UPC
052575110455
General Information
Type
Tankless Water Heater
Product Line
Greentherm
Product Category
Water Heater - Tankless
Medium
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Venting Category
Venting Category
Venting Category describes what type of flue material can be used in water heater installations. Category III: Stainless Steel, Category IV: ABS, PVC, CPVC, PolyPro, Stainless Steel
IV
Storage Type
Tankless
Application
Residential
Mount Type
Wall
Installation Location
Indoor
Includes Pump
No
Gas Conversion Kit
Included
Performance
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
199000 BTU
Minimum Input Capacity
9000 BTU
Flow Rate at 40F Temperature Rise
Flow Rate at 40F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
10.0 GPM
Flow Rate at 50F Temperature Rise
Flow Rate at 50F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
8.0 GPM
Flow Rate at 60F Temperature Rise
Flow Rate at 60F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
6.7 GPM
Flow Rate at 70F Temperature Rise
Flow Rate at 70F Temperature Rise
Flow rate measures how much hot water your heater can deliver. Click Learn More to determine the appropriate temperature rise to use based on your location. Learn More
5.7 GPM
Uniform Energy Factor
Uniform Energy Factor
Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
0.96
Minimum Flow Rate
0.45 GPM
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Primary Vent Pipe Diameter
3 Inches
Gas Connection Size
3/4 Inch
Cold Water Inlet
3/4 Inch
Hot Water Outlet
3/4 Inch
Product Height
31 1/2 Inches
Product Width
18 29/48 Inches
Product Depth
9 41/48 Inches
Product Weight
77.5 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
AHRI Certified
Yes
UPC Listed
Yes
AHRI Reference Number
9963064
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
15 Years
Reviews
(4)
Bosch Thermotechnology T9800 SE 199 Reviews & Ratings
Customer Photos and Videos




Easy replacement of a tank heater
By Ryan M.
Central Valley, California
Purchased 02/03/2020 |
Review Posted 03/04/2020
I had a 30 year old tank water heater that was on its last legs and needed something that would be more reliable than current tanks plus wanted an energy efficiency upgrade.
Installation was very easy thanks to the water connections being on the top of the unit. It fit very nicely in the space where the tank was and hookup was as straightforward as hooking up a tank.
The by far most time consuming task was getting the exhaust and air intake lines routed and in place because of where I had to locate the unit in the structure, but that would be the same for any unit.
Installation was very easy thanks to the water connections being on the top of the unit. It fit very nicely in the space where the tank was and hookup was as straightforward as hooking up a tank.
The by far most time consuming task was getting the exhaust and air intake lines routed and in place because of where I had to locate the unit in the structure, but that would be the same for any unit.
Ryan M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

so far so good.
By Daniel M.
Bohemia, New York
Purchased 11/16/2019 |
Review Posted 12/30/2019



Easy to install. Hang in wall. Use proper concentric vent. Install 3/4” gas line with shut off valve. Install water lines with proper valves. Install condensate drain tube. Plug it in and done. Only took me 3 days. Ha had to get all the proper supplies but once you turn the power on it is all configured and ready to go. Perfect so far.
Daniel M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Easy To Use, Quiet, Reliable, High Quality
Cons:
Expensive

Great Tankless water heater
By Ryan J.
Wayland, Massachusetts
Purchased 07/22/2019 |
Review Posted 08/21/2019
While I have only owned this a month so can't comment on longevity (for me the most important aspect of a hot water heater) The unit has been great, instant hot water comes quickly and is endless , the units controls are self explanatory but have not had to adjust since initial setting. Have not had any issue with volume using 3 outlets simultaneously.
I chose this over Rinnai because it was somewhat cheaper than Rinnai for the feature set, and I had previously owned a Bosch tankless unit that was still running at 20 years. It is also easier to install than most units because the water piping out the top.
I chose this over Rinnai because it was somewhat cheaper than Rinnai for the feature set, and I had previously owned a Bosch tankless unit that was still running at 20 years. It is also easier to install than most units because the water piping out the top.
Ryan J. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

Good product reasonable cost
By Dwight N.
Richmond, Virginia
Purchased 07/17/2019 |
Review Posted 08/08/2019
Easy install started right up -no issues
Dwight N. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
