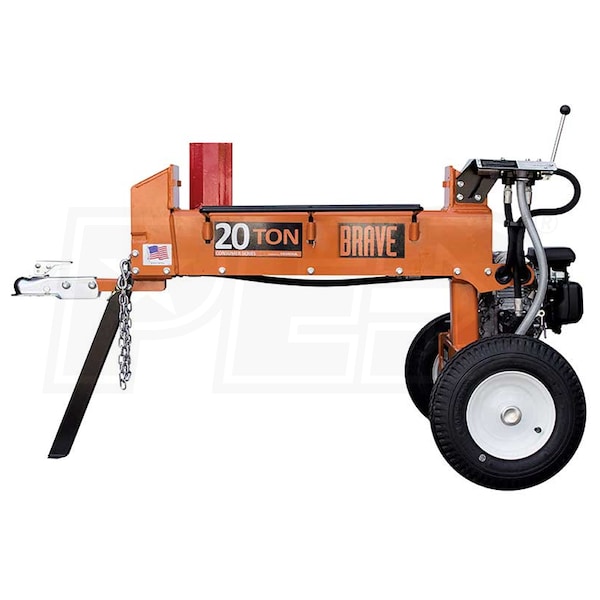

Brave 20-Ton Horizontal Dual-Action Gas Log Splitter w/ Honda 160cc Engine

Model:

PCLS2016GC

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Brave 20-Ton Horizontal Dual-Action Gas Log Splitter w/ Honda 160cc Engine
Brave 20-Ton Horizontal Dual-Action Gas Log Splitter w/ Honda 160cc Engine
Model: PCLS2016GC
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • 20 Tons Of Splitting Force
  • Make use of both the extend and retract stroke to make splits
  • Split wood twice as fast - on forward & backward strokes

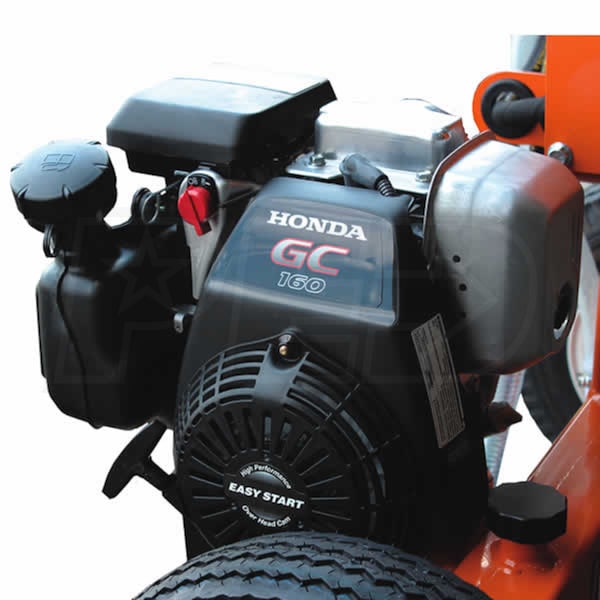

  • 160cc Honda GC 4-Cycle OHC Engine
  • Runs quiet and starts easy for reliable splitting power
  • Horizontal Operating Position
  • Work at a comfortable height
  • 2-Stage, 11 GPM Hydraulic Pump
  • 3 gallon hydraulic system; hydraulic fluid not included
  • Splits Logs Up To 24" Long
  • Split a 24" log on forward stroke; split another on the return

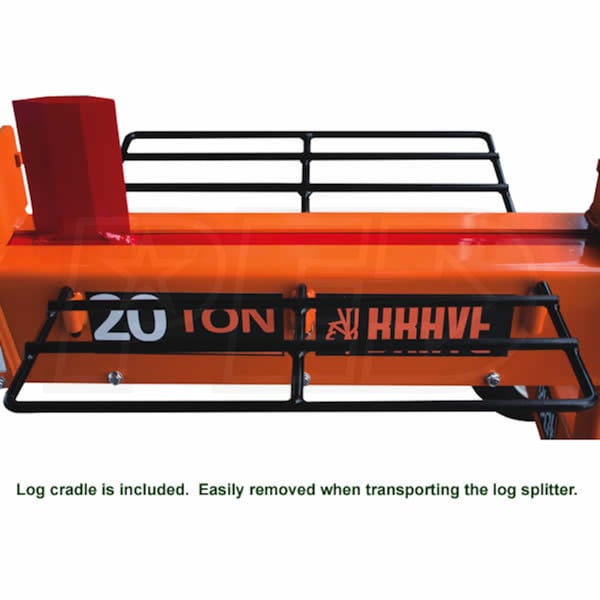

  • Removable Log Cradles
  • Keeps split wood at a convenient height; saves back strain
  • Cradles remove for easy transport
  • High Speed Highway Rated Tires
  • 35 mph maximum towing speed
  • Includes safety chains and 2" hitch coupler
  • Some Assembly Required
  • Assembles in a short time with simple hand tools
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm, and Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

PCLS2016GC
specs product image PID-14621
Engine
Engine Brand
Honda GC
Starting System
Recoil Start
CC
160 CCs
Hydraulics
Auto Return
No
Hydraulic Oil Included
No
Hydraulic Reservoir Size
3 Gallons
Max Pump PSI
3000 PSI
Cylinder Diameter
4 Inches
Cylinder Length
24 Inches
Tonnage
20 Tons
Dual Action
Yes
Overview
Assembly Required
Yes
Weight
360 Pounds
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Length
62.0 Inches
Product Width
39.0 Inches
Product Height
33.0 Inches
Power Type
Gas
UPC
011343001302
Additional Model Numbers

PCLS2013GC, PCLS2016GC

Wedge
Wedge Material
Steel
Wedge Size
8 Inches
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
24 Inches
Towing
Towable
Yes
D.O.T. Lights
No
Fenders
No
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
35 MPH
Accessories
Jack Stands
Included
Log Cradles
Included
Wood Type Hardness Rating 6" Seasoned 6" Green 12" Seasoned 12" Green 24" Seasoned 24" Green
Alder 590 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Ash 1320 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Aspen 420 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Basswood 410 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Beech 1300 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Birch 1470 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Boxelder 720 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Buckeye 350 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Catalpa 550 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Cedar 900 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cherry 950 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cottonwood 430 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Dogwood 2150 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Elm 1540 Lbs. 10+ Tons 13+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Fir 710 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Hickory 1820 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Locust 1700 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Magnolia 1020 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Maple 1450 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Oak 1620 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Pine 860 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Poplar 540 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Spruce 510 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Sweet Gum 850 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Walnut 1010 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
