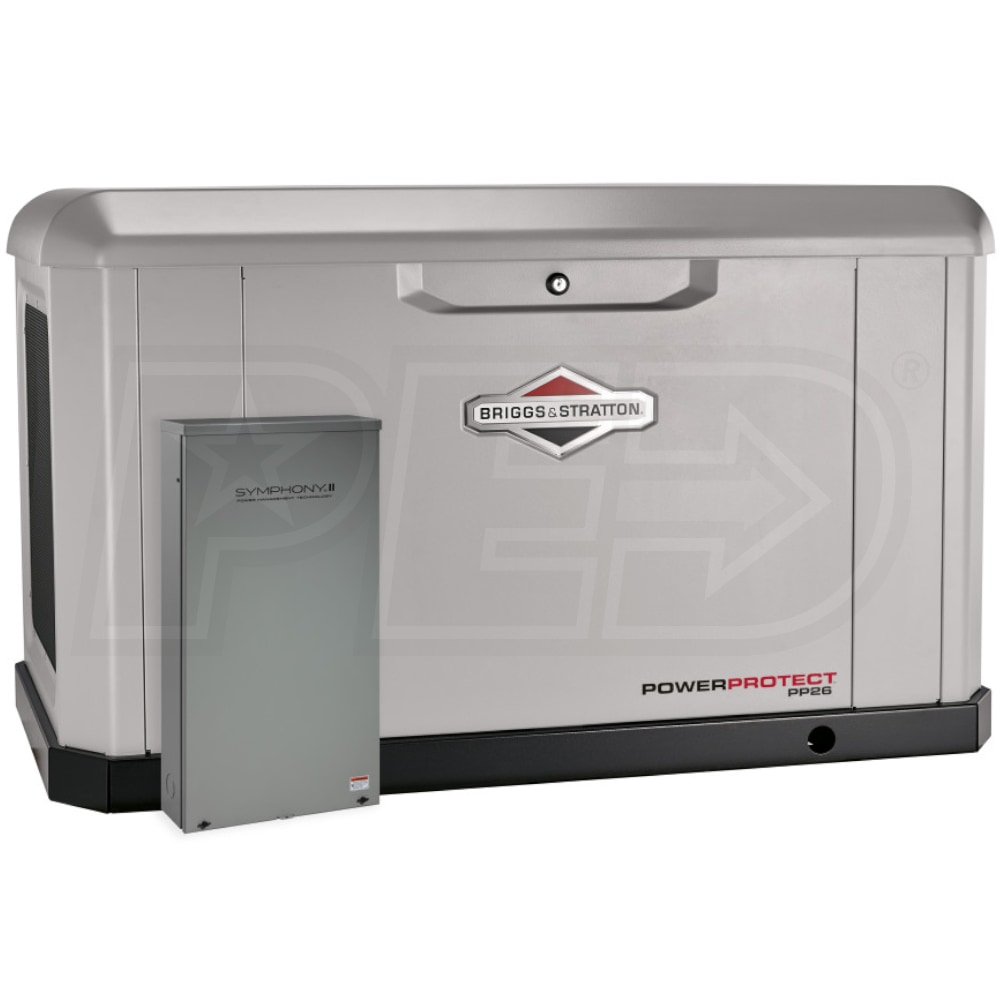

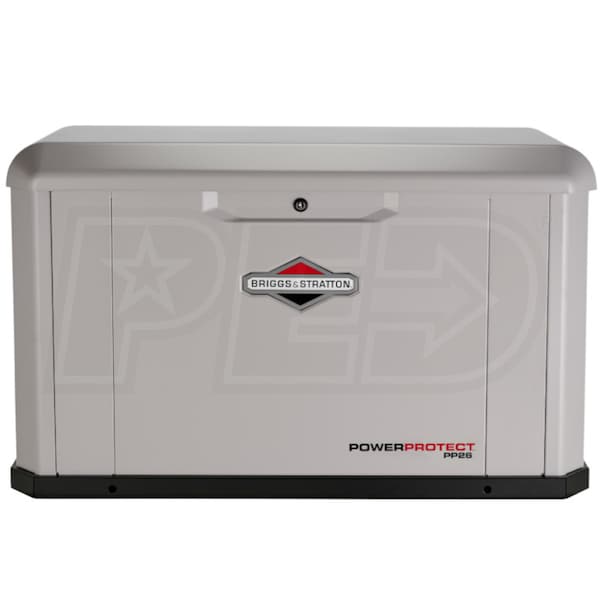

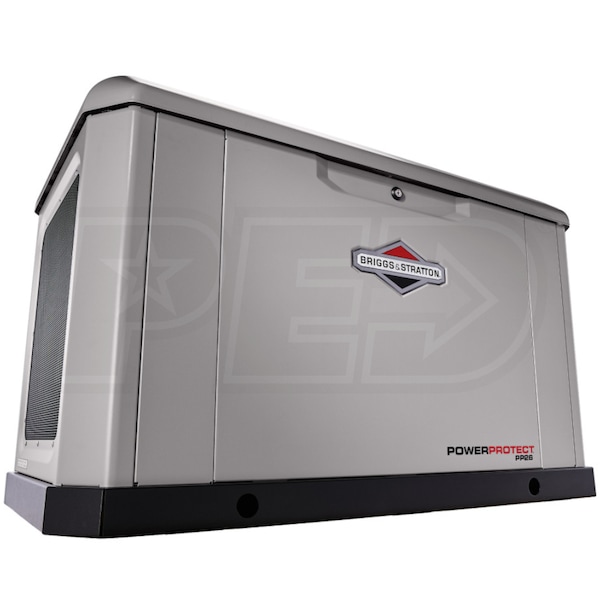

Briggs & Stratton Power Protect™ 26kW Aluminum Standby Generator (400A Split Service Disc.)

Model:

040679

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Briggs & Stratton Power Protect™ 26kW Aluminum Standby Generator (400A Split Service Disc.)
Briggs & Stratton Power Protect™ 26kW Aluminum Standby Generator (400A Split Service Disc.)
Model: 040679
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

26,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Power Protect™ 26kW (LP) /24kW (NG) Air-Cooled Standby Generator System
  • Industry's most powerful air-cooled generator
  • 6-Year Limited Warranty
  • Parts, labor and travel included for the entire term
  • 400-Amp Service Entrance Auto Transfer Switch (71057) (NEMA 3R)
  • A UL Listed solution for 2 x 200-Amp Service Breakers
  • Easy install - one less switch, less wiring/time, fewer expenses
  • Smaller Transfer Switch
  • A cost effective, cleaner looking installation
  • Symphony® II Power Management (Up To 8 High-Wattage Loads)
  • Automatically manages & balances loads while preventing overload
  • Uninterrupted, whole house power, with a smaller generator
  • Runs on Natural Gas (NG) or Liquid Propane (LP)
  • Simple field conversion for easier installations

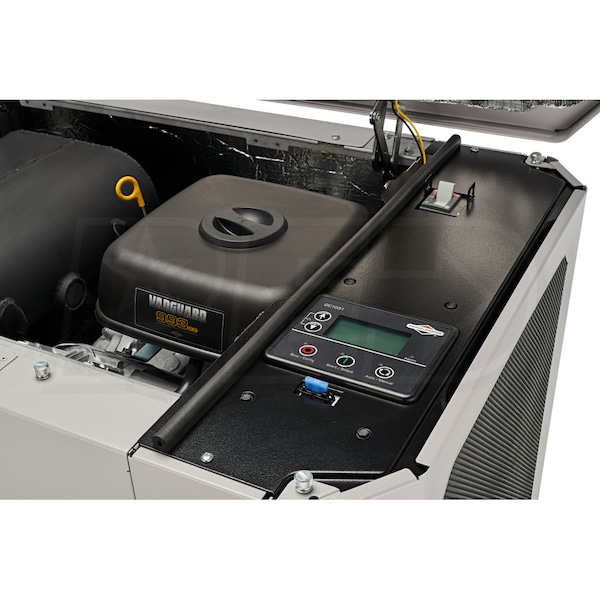

  • Super High Output, Commercial-Grade Vanguard Engine
  • CDI (Capacitive Discharge Ignition) coils for optimum starting and performance
  • Full-pressure lubrication system w/ spin-on oil filter
  • Briggs & Stratton Alternator - Less Than 5% THD
  • Improved frequency (HZ) regulation for cleaner power
  • Automatic Voltage Regulation (+/-1%)
  • Helps prevent damaging voltage spikes
  • Quiet Weekly Test
  • Low idle mode w/ 15-second weekly test cycle
  • Corrosion Resistant Aluminum Enclosure & Base
  • Certified to withstand hurricane-force winds up to 175 mph
  • Flexible Placement (Please Verify Local Building Codes)
  • Tested against tough National Fire Protection Agency standards
  • Can be placed as close as 18' from structure
  • Toolless Panel Removal
  • Designed for easier serviceability and maintenance
  • Independent 3-Stage Battery Charger
  • Provides optimized charge for longer battery life
  • Assembled and Engineered In The USA
  • From global and domestic parts
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

040679
specs product image PID-115534
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
540 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
6 Years
Product Style
Standby Generator
Product Length
46.5 Inches
Product Width
26.8 Inches
Product Height
28.4 Inches
UPC
011675406790
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
26000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
24000 Watts
LP Power Capacity
26000 Watts
NG Fuel Consumption @ 50% Load
206 ft³/hr
NG Fuel Consumption @ 100% Load
323 ft³/hr
LP Fuel Consumption @ 50% Load
2.6 gallons/hr
LP Fuel Consumption @ 100% Load
4.7 gallons/hr
Rated Amps
108.3 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Hour Meter
Yes
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
400-Amps
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
125 Amps
Mounting Pad
Steel (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Prime Power
No
Engine
Starting System
12v Auto Start
Consumer Engine Warranty
6 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
