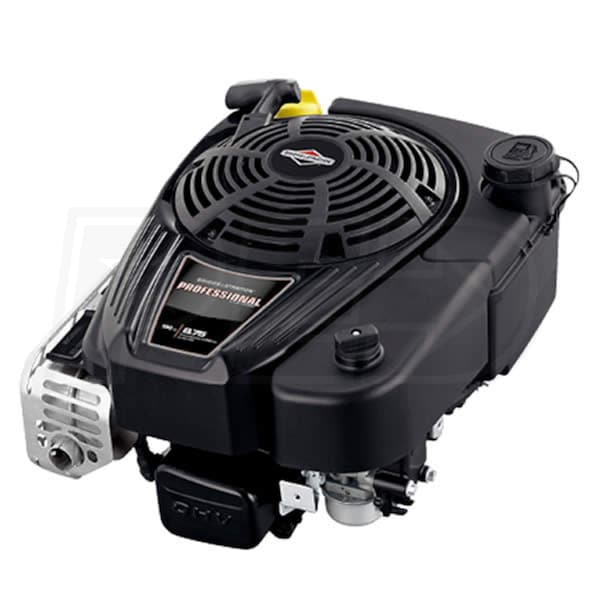

Briggs & Stratton Professional Series 190cc Vertical Engine, 7/8" x 3-5/32" Crankshaft, Tapped 3/8"-24, 2 #505 Woodruff Keys & 3/16" Straight Keyway
Model:
121S02-2015-F1
+
Share This Product
Features
- Model# 121S07-2062-F1 - 25mm x 3-5/32" Crankshaft, Tapped 3/8-24", 2 #605 Woodruff Keys & 1/4" Straight Keyway
- For use on walk behind/push mowers
- Briggs & Stratton Professional Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Produces 8.75 lbs/ft torque* - Power levels are stated gross torque per SAE J1995
- Overhead Valve (OHV) Technology
- More power, less fuel-use & lower emmisions
- Runs cooler for longer engine and valve life
- Keeps the engine running cooler for maximum productivity
- ReadyStart Starting System
- No prime, no choke, no worries
- Dual-Sealing Air Cleaner
- Improved debris resistance
- Longer life of your engine
- Acoustically-Engineered Muffler
- Quiet operation and excellent tonal quality
- Larger Rewind Starter
- Reduces pulling effort for easy starting
- Float-Feed Carburetor & Mechanical Governor
- Allows for fast fuel delivery for reliable starting and operation
- Increases throttle response to maximize usable power for higher torque applications
- 0.8 Gallon Gas Tank Included
- 2-Year Consumer & 90-Day Commercial Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
121S02-2015-F1
Engine
Engine Series
B&S Professional Series
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
30 Lbs
CC
190 CCs
Max Torque
8.75 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
2.04 Inches
CARB
Yes
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
0.8 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
7/8 x 3-5/32 Inches
Crankshaft Type
Straight
Crankshaft Diameter
7/8"
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
2 #505 Woodruff Keys & 3/16" Straight Inches
Overview
Weight
30 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
15.803 Inches
Product Width
12.981 Inches
Product Height
9.366 Inches
UPC
024847088403
