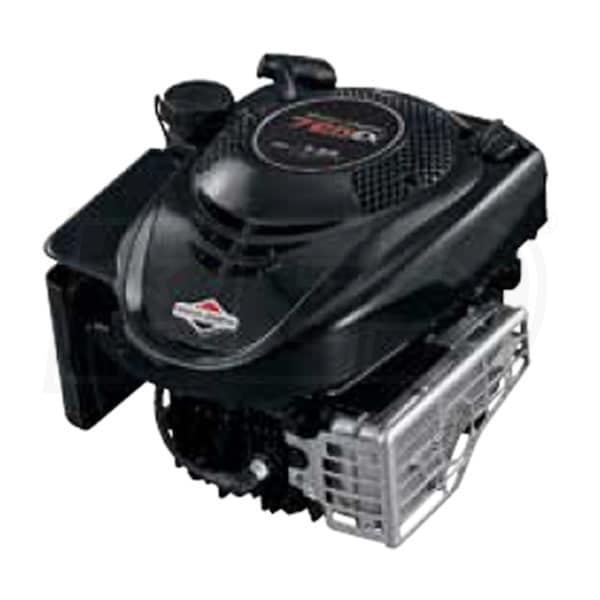

Briggs & Stratton 725 Series™ 190cc Vertical Engine, 25mm x 3-5/32" Crankshaft, Tapped 7/16"-20, 3/16" Straight Keyway

Model:

128M02-0133-F1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton 725 Series™ 190cc Vertical Engine, 25mm x 3-5/32
Briggs & Stratton 725 Series™ 190cc Vertical Engine, 25mm x 3-5/32" Crankshaft, Tapped 7/16"-20, 3/16" Straight Keyway
Model: 128M02-0133-F1
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model# 128M02-0133-F1 - 25mm x 3-5/32" Crankshaft, Tapped 7/16"-20, 3/16" Straight Keyway
  • For walkbehind / push mowers
  • Briggs & Straton 725 Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 7.25ft-lbs of torque* - Power levels are stated gross torque per SAE J1944
  • Aluminum-Alloy Kool Bore™ Engineering
  • Keeps the engine running cooler for maximum productivity
  • Float-Style Carburetor w/ Primer
  • Provides consistent starting even when engine is cold
  • Magnetron® Electronic Ignition System
  • Extremely reliable design, for consistent starting while being maintenance-free
  • Large Diameter Recoil Starter
  • With mechanical compresson release for easier starting with less effort
  • Mechanical Torque Control
  • Maximizes usable power of the engine when high torque is required
  • Maxi-Clean™ Automotive-Type Air Filter
  • Pleated paper design, provides excellent debris filtration
  • Aluminized Lo-Tone™ Muffler
  • Decrease engine noise during operation
  • 2-Year Consumer Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

128M02-0133-F1
specs product image PID-65696
Engine
Engine Series
725 Series
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
28 Lbs
CC
190 CCs
Max Torque
7.25 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
2.04 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.25 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
25mm x 3-5/32 Inches
Crankshaft Type
Straight
Crankshaft Diameter
25 mm
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
3/16 Inches
Overview
Weight
28 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
12.2 Inches
Product Width
13 Inches
Product Height
9.8 Inches
UPC
047282015711
