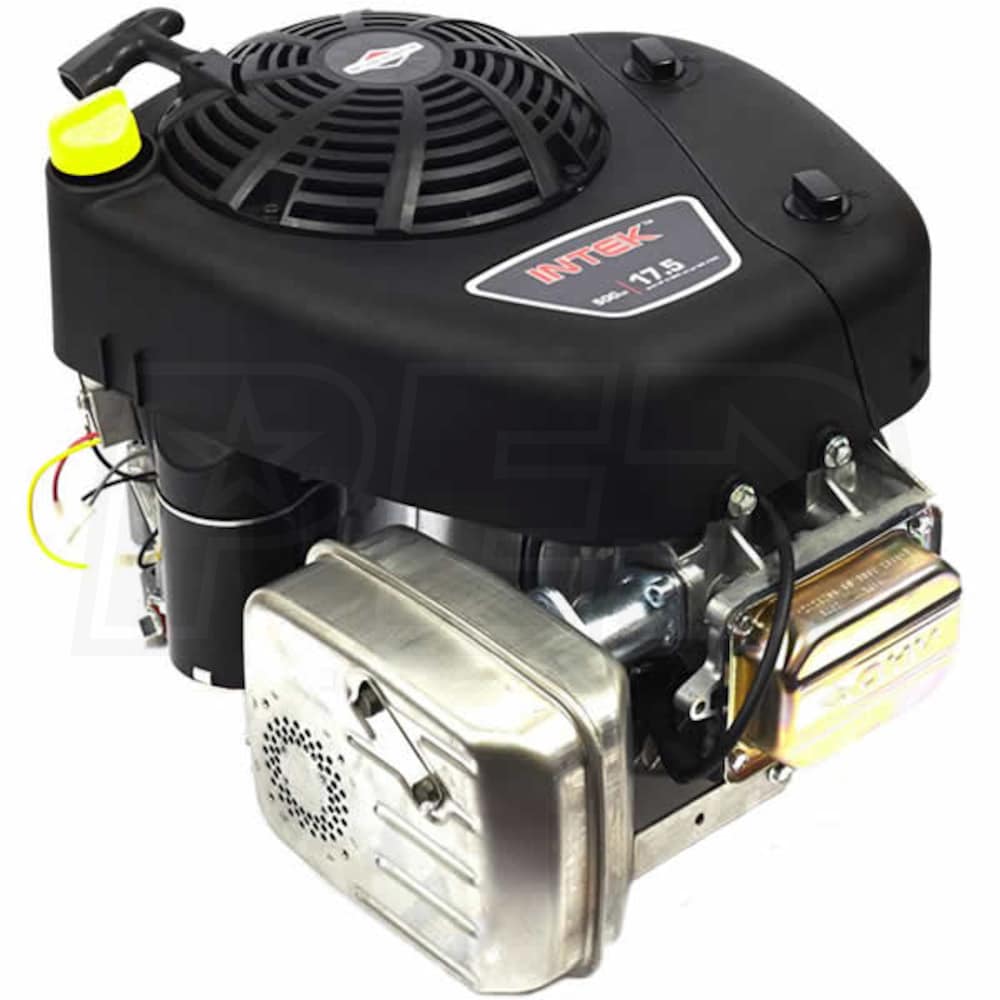

Briggs & Stratton Intek™ 500cc 17.5 Gross HP OHV Electric/Recoil Start Vertical Engine, 1" x 3-5/32" Crankshaft

Model:

31R907-0006-G1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton Intek™ 500cc 17.5 Gross HP OHV Electric/Recoil Start Vertical Engine, 1
Briggs & Stratton Intek™ 500cc 17.5 Gross HP OHV Electric/Recoil Start Vertical Engine, 1" x 3-5/32" Crankshaft
Model: 31R907-0006-G1
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Model# 31R907-0006-G1 - 1" x 3-5/32" Crankshaft Keyed 7/16-20
  • For lawn tractors and wide area walk mowers
  • Briggs & Straton Intek™ 17.5 HP* Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Reliable and durable engine rated in accordance with SAE J1995
  • Overhead Valve (OHV) Technology
  • More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
  • DuraLube™ Splash Lubrication System & Dura-Bore™ Cast Iron Cylinder Sleeve
  • Ensures maximum lubrication to protect engine components
  • Assures long engine life and improved oil control
  • Anti-Vibration System - AVS®
  • Provides a smoother ride and more coperator comfort
  • Advanced Debris Management System
  • High-volume cooling fan helps the engine breath freely
  • High Capacity Dual-Clean™ Carthdidge-Style Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
  • Float-Feed Carburetor & Mechanical Governor
  • Allows for fast fuel delivery for reliable starting and operation
  • Increases throttle response to maximize usable power for higher torque applications
  • Magnetron® Electronic Ignition System
  • Extremely reliable design, for consistent starting while being maintenance-free
  • 12V Electric Starter w/ Recoil & 9A DC Alternator
  • Easily compatible with most tractor/mower starting systems
  • Product Notes:
  • Includes Muffler; No Fuel Pump or Fuel Tank Inlcuded
  • 2-Year Consumer Warranty & 1-Year Commercial Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

31R907-0006-G1
specs product image PID-65649
Engine
Engine Series
B&S Intek
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
88 Lbs
CC
500 CCs
HP
17.5 HP
Cylinder Bore Type
Cast Iron
Bore
3.56 Inches
Stroke
3.06 Inches
Systems
Charging System
9 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
88 Pounds
Consumer Warranty
2 Years
Commercial Warranty
1 Year
UPC
047282017524
