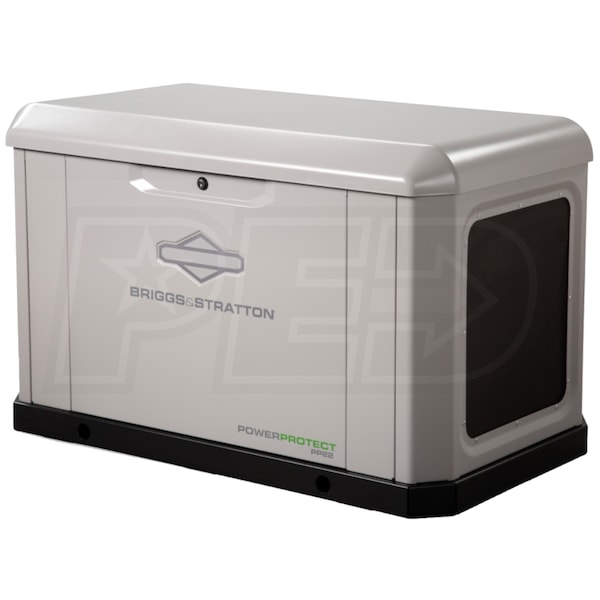

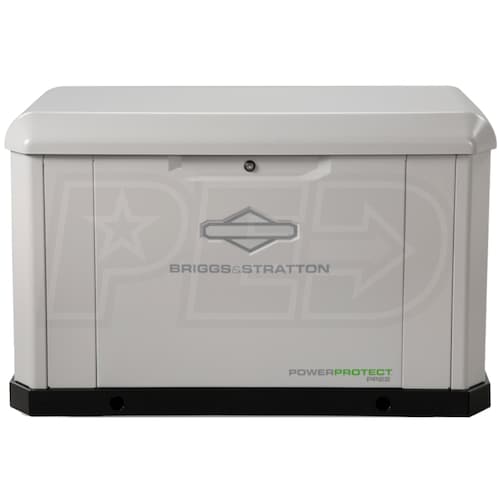

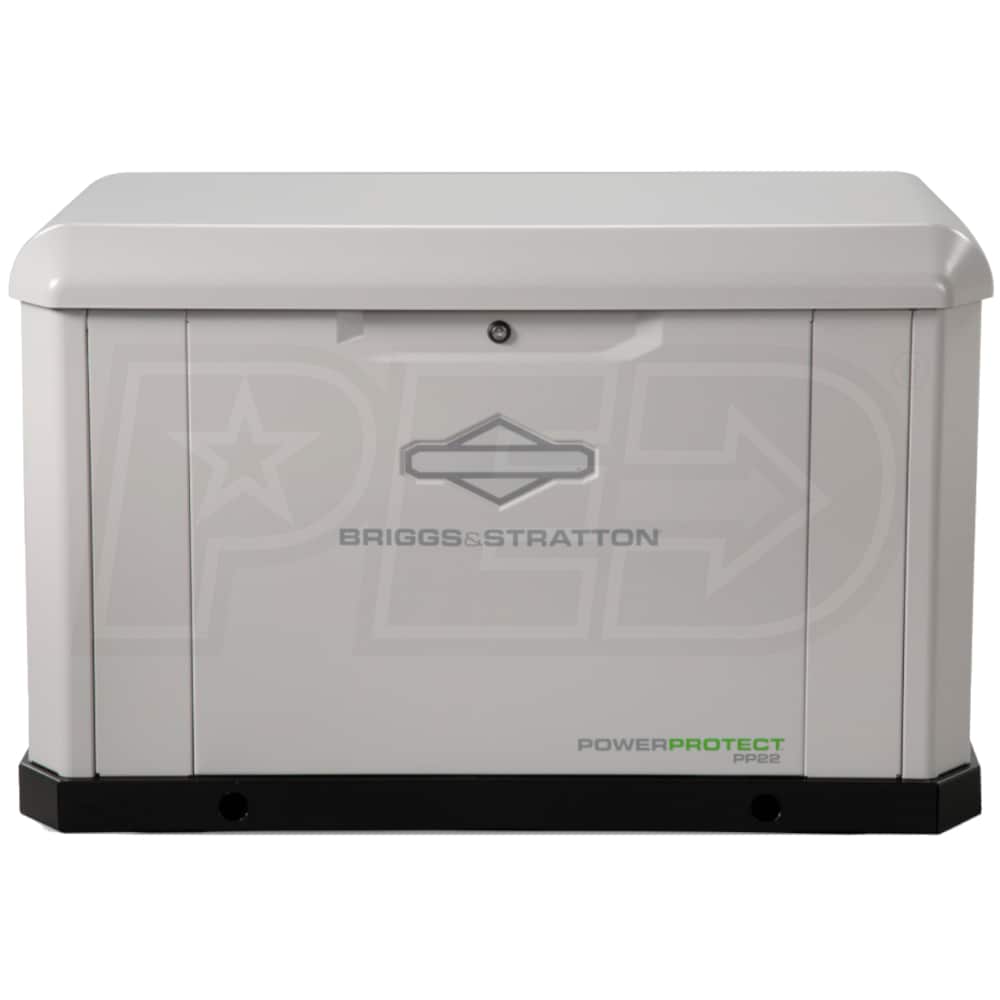

Briggs & Stratton Power Protect™ PP22 - 22kW Aluminum Standby Generator
Model:
040786
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
22,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Briggs and Stratton Vanguard
- Power Protect™ PP22 - 22kW Air-Cooled Standby Generator
- Automatically powers your home in seconds after sensing an outage*
- 7-Year Limited Warranty
- Parts, labor and travel included for the entire term
- NGMax™ Technology
- Provides more power on natural gas
- Now get a full 22kW of power regardless of fuel type
- Runs on Natural Gas (NG) or Liquid Propane (LP)
- Simple field conversion for easier installations
- Super High Output, Commercial-Grade Vanguard Engine
- CDI (Capacitive Discharge Ignition) coils for optimum starting and performance
- Full-pressure lubrication system w/ spin-on oil filter
- Briggs & Stratton Alternator - Less Than 5% THD
- Improved frequency (HZ) regulation for cleaner power
- Automatic Voltage Regulation (+/-1%)
- Helps prevent damaging voltage spikes
- Eco-Cise™ Weekly Test Mode
- Low idle mode w/ 16-second weekly test cycle
- Dura-Zen™ Coated, Corrosion Resistant Aluminum Enclosure & Base
- Certified to withstand hurricane-force winds up to 175 mph
- Flexible Placement (Please Verify Local Building Codes)
- Tested against tough National Fire Protection Agency standards
- Can be placed as close as 18' from structure
- Toolless Panel Removal
- Designed for easier serviceability and maintenance
- Independent 3-Stage Battery Charger
- Provides optimized charge for longer battery life
- Includes Schaeffer® Full Synthetic Generator Oil
- Provides enhanced cold weather protection to -20°F
- Assembled and Engineered In The USA
- From global and domestic parts
- Requires (Sold Separately)
- Briggs & Stratton Automatic Transfer Switch* & Battery
- ^*^Suitable for Off-Grid Use or Demand Response Programs^*^
- Certified for non-emergency use
- Partner with your utility company's demand response program
- Receive rewards for helping reduce the overall load on the power grid
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
040786
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
465 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
7 Years
Product Style
Standby Generator
Product Length
46.5 Inches
Product Width
26.8 Inches
Product Height
28.4 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
22000 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
194 ft³/hr
NG Fuel Consumption @ 100% Load
281 ft³/hr
LP Fuel Consumption @ 50% Load
2.4 gallons/hr
LP Fuel Consumption @ 100% Load
4.1 gallons/hr
Rated Amps
91.7 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Hour Meter
Yes
Transfer Switch
Automatic (Not Included)
Battery
Not Included (540 CCA)
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
Mounting Pad
Steel (Included)
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Prime Power
Yes
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
993 CC
Consumer Engine Warranty
7 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
