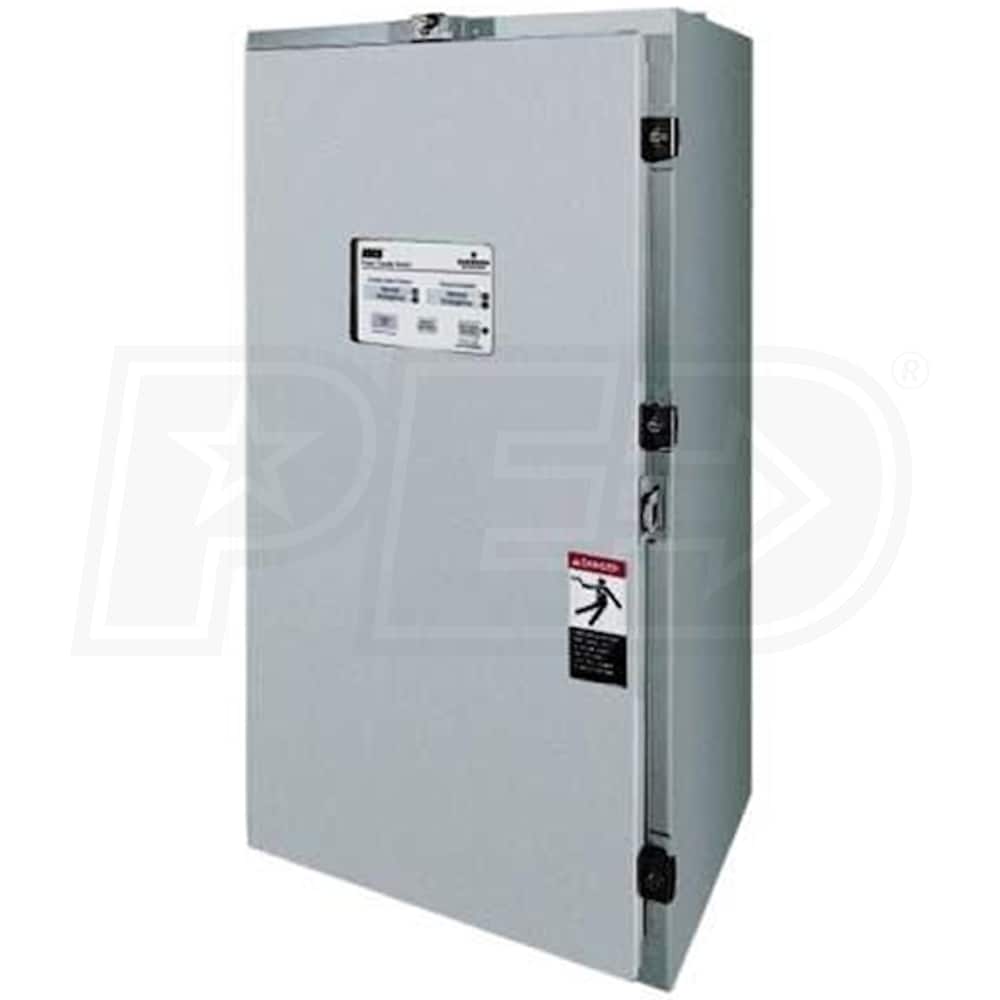

Briggs & Stratton By ASCO Series 285 - 100-Amp Automatic Transfer Switch (277/480V 3-Phase)

Model:

071103

Write A Review
$1,580.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Estimated Availability 29-29 Weeks
  Learn More
Estimated Availability
Secure your place in line to receive this item once the manufacturer has provided us new inventory. Keep in mind orders are fulfilled in the order they are received. If you wish to no longer wait on the item, you are more than welcome to cancel the order. However, please keep in mind you will lose your place in line.
Shipping to60601
synchrony card logo
$28 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Briggs & Stratton By ASCO Series 285 - 100-Amp Automatic Transfer Switch (277/480V 3-Phase)
Briggs & Stratton By ASCO Series 285 - 100-Amp Automatic Transfer Switch (277/480V 3-Phase)
Model: 071103
$1,580.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Standard

Amp Rating

100

Load Mgmt.

Not Compatible

Voltage

277/480 Three-Phase

Enclosure

NEMA 3R

  • 100-Amp 285 Series By ASCO Automatic Transfer Switch (277/480V 3-Phase)
  • Compatible with Briggs & Stratton 3-phase generators
  • NEMA 3R Outdoor Rated Enclosure
  • Approved for indoor or outdoor installations
  • Standard Installation
  • Requires a sub-panel for overload protection

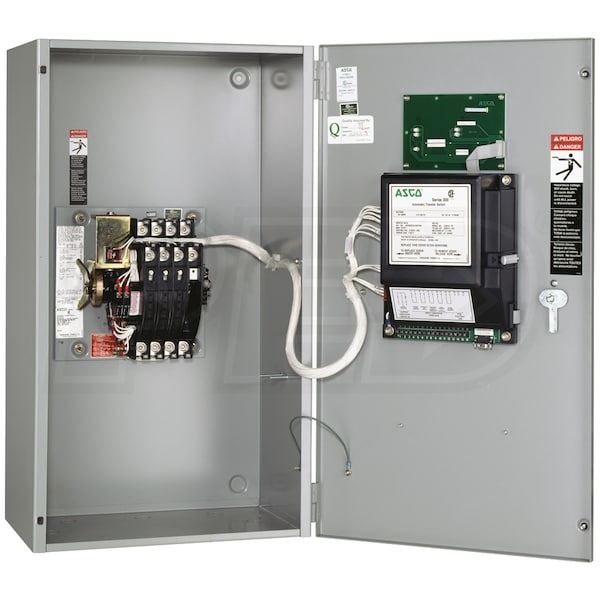

  • True Double-Throw Contacts w/ Inherent Mechanical Interlocking
  • Prevents connection of generator and utility source for maximum safety
  • Terminals For Connection of Neutral and Ground Conductors
  • Allows for easier installation
  • Convenient Control Interface w/ Symbols & Visual Indicators
  • Makes it easy to see transfer switch and power source status
  • Built-In Auxiliary Contacts For Switch Position Indication
  • Provides immediate indication when the switch positions changes
  • Additional Features:
  • Meets Article 702, NFPA-70 National Electric Code (NEC) Requirements
  • Listed to UL 1008 for optional standby systems
  • Please See Spec Sheet For Additional Compliance & Safety Standards
  • 3-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

071103
specs product image PID-77452
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Consumer Warranty
3 Years
UPC
011675711030
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
