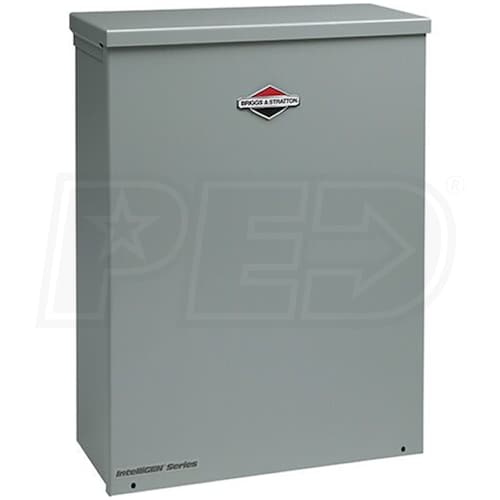

Briggs & Stratton 100-Amp Automatic Transfer Switch w/ 16-Circuit Load Center + AC Shedding

Model:

071212

Write A Review
$713.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
synchrony card logo
$119 / Month
Suggested monthly payments with 6 month financing.
Briggs & Stratton 100-Amp Automatic Transfer Switch w/ 16-Circuit Load Center + AC Shedding
Briggs & Stratton 100-Amp Automatic Transfer Switch w/ 16-Circuit Load Center + AC Shedding
Model: 071212
$713.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Load Center

Amp Rating

100

Circuits

16

Voltage

120/240 Single-Phase

Enclosure

NEMA 3R



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    *Note - Not Compatible w/ Generators Made Prior To 2019
  • Maximum Safety, Comfort and Efficiency
  • Compatible with 12-20kW Intelligen Standby Generator
  • Rated at 100-Amps @ 240V
  • 16-Circuit Design (Breakers Not Included)
  • Allows you to select your priority circuits
  • Manage up to 2 AC units
  • AC Power Control Module (ACCM)
  • Imprints starting wattage of your AC in the control board
  • Monitors usage/watts until your AC can be started
  • Assures usage while preventing overload
  • Built-In AC Delay For AC Start-up
  • Allows for pressure to bleed off AC motor
  • Makes start-up less power intensive
  • Nema 3R Enclosure
  • Flexibility in mounting locations - indoor or outdoor
  • UL1008 Listed
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

071212
specs product image PID-102421
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
37 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
24 Inches
Product Width
14 Inches
Product Height
6 Inches
UPC
011675712129
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
UL Listed
Yes
