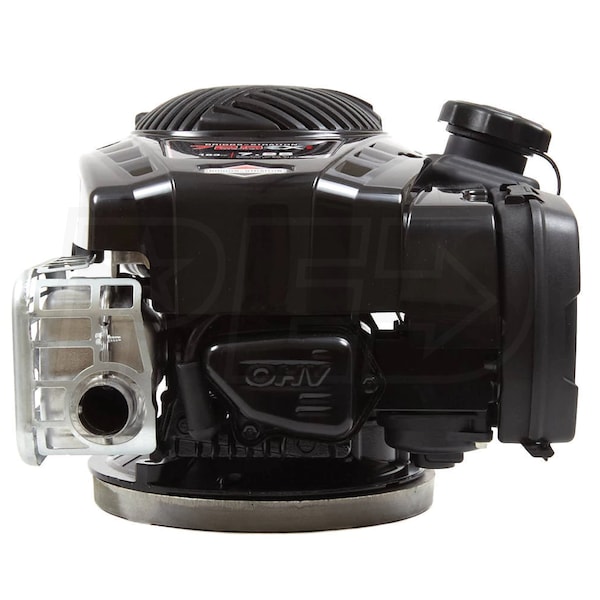

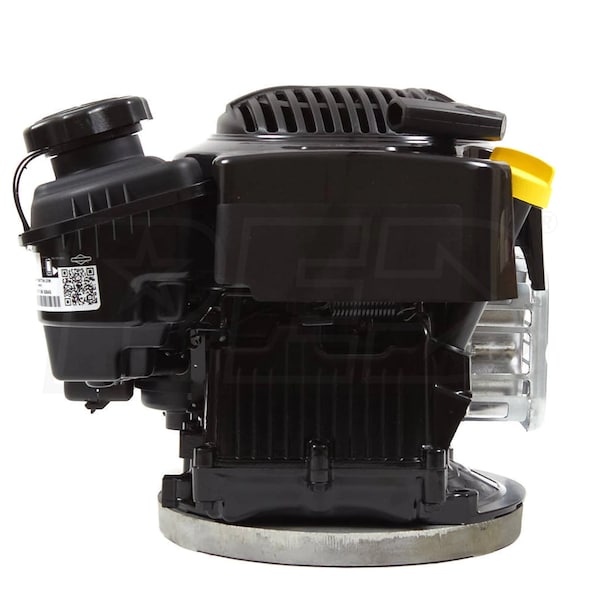

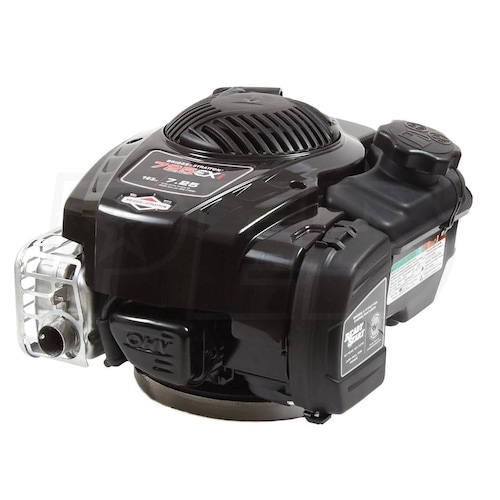

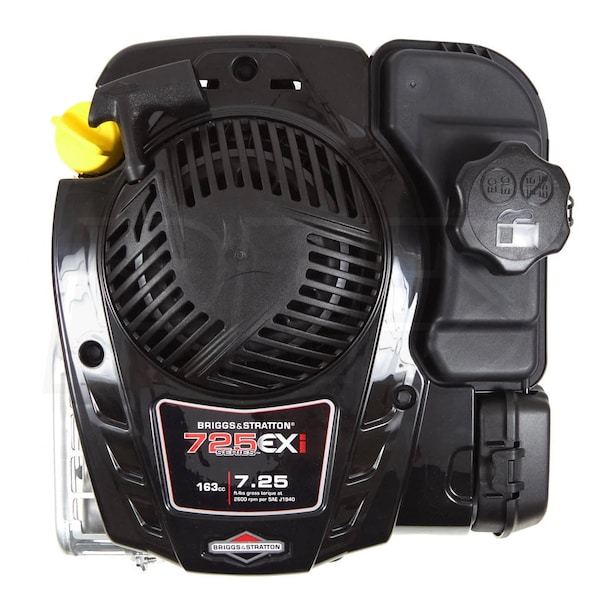

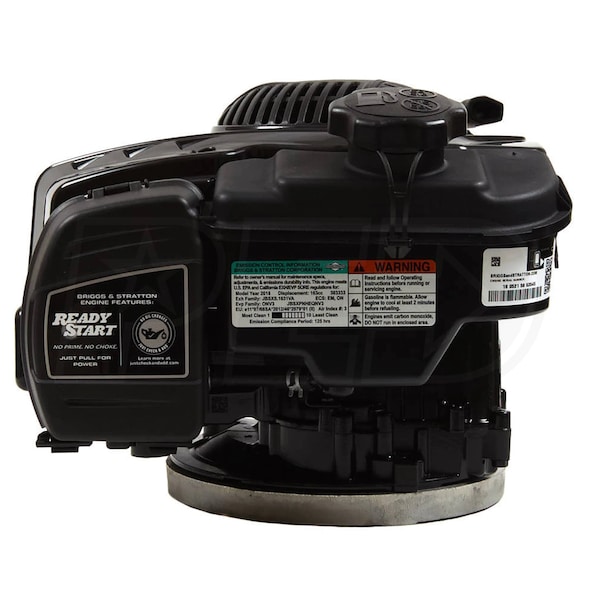

Briggs & Stratton 725EXi™ Series 163cc Vertical Engine, 25mm x 3-5/32" Crankshaft, Tapped 7/16"-20, 3/16" Square Keyway
Model:
104M02-0198-F1
+
Share This Product
Features
- Replaces Engine Models #104M02-0028-F1 & #126M02-1031-F1
- Model# 104M02-0198-F1 - 25mm x 3-5/32" Crankshaft, Tapped 7/16"-20, 3/16" Square Keyway
- For walk-behind / push mowers - not intended for log splitters or pressure washers
- Briggs & Stratton 725EXi Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
- Produces 7.25ft-lbs of torque - Power levels are stated gross torque per SAE J1940
- ReadyStart® Engine Starting System
- Just pull to start, no primer and no choke to worry about!
- Overhead Valve (OHV) Technology
- More power, less fuel-use & lower emissions
- Runs cooler for longer engine life
- DuraLube™ Splash Lubrication System
- Gear-driven system keeps engine well oiled for continuous protection
- Large Diameter Recoil Starter
- With mechanical compression release, you will enjoy easier starting with less effort
- Mechanical Torque Control
- Maximizes usable power of the engine when higher torque is required
- Maxi-Clean™ Automotive-Type Air Filter
- Pleated paper design, provides excellent debris filtration
- Aluminized Super Lo-Tone™ Muffler
- Significantly reduces engine noise during operation
- 2-Year Consumer Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
104M02-0198-F1
![specs product image PID-100180](/products-image/150/104M02-0198-F1_100180_1000.png)
Engine
Engine Series
B&S EXi
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
19 Lbs
CC
163 CCs
Max Torque
7.25 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
1.75 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
15 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.27 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
25mm x 3-5/32 Inches
Crankshaft Type
Straight
Crankshaft Diameter
25 mm
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
3/16 Inches
Overview
Weight
19 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
13.4 Inches
Product Width
10.2 Inches
Product Height
10 Inches
