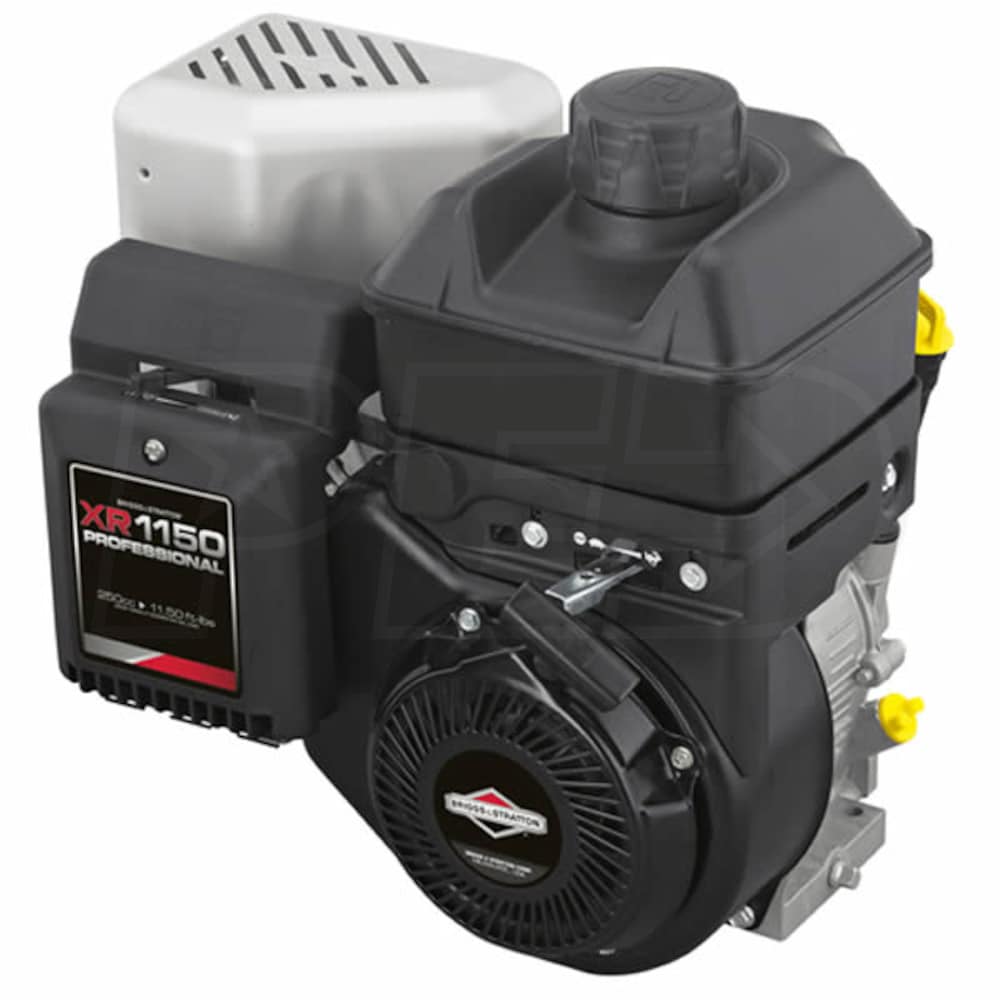

Briggs & Stratton 1150 XR Series™ 250cc Horizontal Engine, Tapered 2-23/32" Length, Tapped 3/8-24 Crankshaft

Model:

15T212-0008-F8

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton 1150 XR Series™ 250cc Horizontal Engine, Tapered 2-23/32
Briggs & Stratton 1150 XR Series™ 250cc Horizontal Engine, Tapered 2-23/32" Length, Tapped 3/8-24 Crankshaft
Model: 15T212-0008-F8
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model# 15T212-0008-F8 - 7/8" x 2-23/32" Tapered Crankshaft
  • For ultility applications like tillers, log splitters, pressure washers etc.
  • Briggs & Stratton 1150 XR Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 11.5 ft-lbs of torque* - Power levels are stated gross torque per SAE J1940
  • Overhead Valve (OHV) Technology
  • More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
  • Aluminum-Alloy Kool Bore™ Engineering & DuraLube™ Splash Lubrication System
  • Keeps the engine running cooler for maximum productivity
  • Gear-driven system keeps engine well oiled for continous protection
  • Float-Feed Carburetor & Mechanical Governor
  • Allows for fast fuel delivery for reliable starting and operation
  • Increases throttle response to maximize usable power for higher torque applications
  • Magnetron® Electronic Ignition System
  • Extremely reliable design, for consistent starting while being maintenance-free
  • Dual-Clean™ Premium Air Filter
  • Cartridge design w/ foam pre-cleaner keep more debris out of the engine
  • Recoil-Starter w/ Automatic Compression Release
  • Requires less effort so you can enjoy 1-2 pull starts
  • Includes Muffler & Fuel Tank
  • 2-Year Consumer Warranty & 90-Day Commercial Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

15T212-0008-F8
specs product image PID-65704
Engine
Engine Series
B&S XR Professional Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
43 Lbs
CC
250 CCs
Max Torque
11.50 Lbs
Cylinder Bore Type
Aluminum
Bore
2.97 Inches
Stroke
2.20 Inches
CARB
No
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.8 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
7/8 x 2-23/32 Inches
Crankshaft Type
Tapered
Crankshaft Diameter
7/8"
Crankshaft Length
2-23/32"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
None Inches
PTO Height
4.17 Inches
Overview
Weight
33 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
UPC
024847071825
