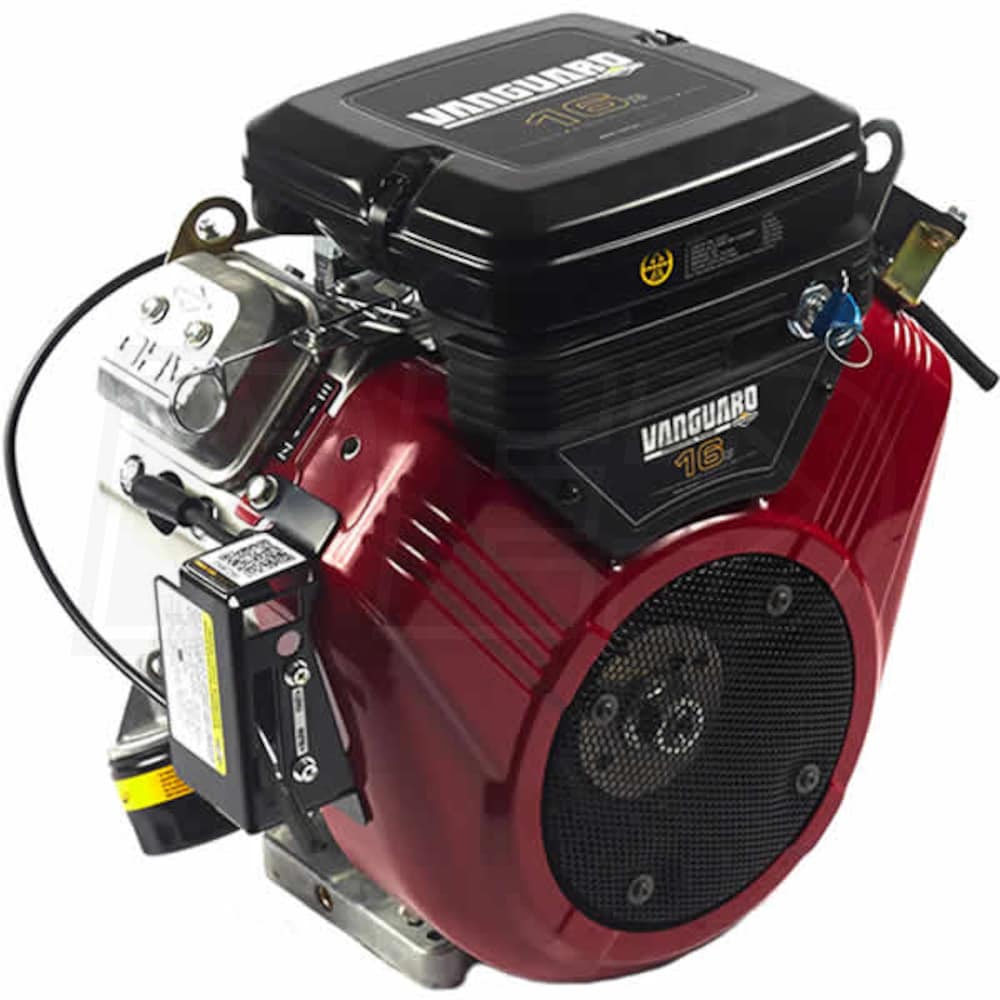

Briggs & Stratton Vanguard™ 479cc 16 Gross HP V-Twin OHV Electric Start Horizontal Engine w/Back-Up Recoil, 1" x 3" CS, Fuel Tank

Model:

305447-0615-F1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton Vanguard™ 479cc 16 Gross HP V-Twin OHV Electric Start Horizontal Engine w/Back-Up Recoil, 1
Briggs & Stratton Vanguard™ 479cc 16 Gross HP V-Twin OHV Electric Start Horizontal Engine w/Back-Up Recoil, 1" x 3" CS, Fuel Tank
Model: 305447-0615-F1
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model # 305447-0615-F1 - 1" x 3" Crankshaft, Tapped 3/8-24, 1/4" Keyed, 16A DC Alternator
  • 3-Year Commercial Warranty
  • Utility / General engine applications like Compressors, Pressure Washers, Chipper/Shredders
  • Professional-Grade Vanguard™ 16 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
  • High-performance commercial engine rated in accordance with SAE J1995
  • 90° V-Twin Overhead Valve (OHV) Technology
  • Low vibration, exceptional balance provides smooth power for extend valve life
  • Increased fuel economy and HP/Weight ratio while reducing engine emissions
  • Oil Pump Provides Full-Pressure Lubrication w/ Spin-On Oil Filter
  • Centerally located pump for increased angle of operation and faster priming
  • Keeps the oil cleaner from debris that can damage internal engine parts
  • Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeve
  • Efficient fan reduces engine & oil temperature by 20-30 degrees
  • Long engine life & improved oil control while reducing airborn intake debris
  • Commercial-Style Float Carburetor w/ Sediment Filter
  • Proven-design for consitent starting, smoother operation & easy maintenance
  • High Capacity Dual-Clean™ Commercial Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
  • 9-Gallon Fuel Tank & Keyed Stop/Start Switch
  • Provides the added convenience for your specific application
  • 12V Electric (Gear) Starter & Magnetron® Electronic Ignition
  • Maintenance-free design, plus larger ignition coil for easy dependable starting
  • PTO Ball Bearing, (Remote) Manual Choke, & Remote Adjustable Throttle (3600 RPM Max)
  • Designed for easier engine replacement for your current application
  • Additional Features: 2.5-Gallon Fuel Tank
  • On-Board Fuel Pump & 16A Regulated Charger System
  • Please Note - No Exhaust Included
  • Model 305447-0615-F1 Replaces Models 305447-0523-F1 & 305447-0568-F1
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

305447-0615-F1
specs product image PID-105287
Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
75 Lbs
CC
479 CCs
HP
16 HP
Cylinder Bore Type
Cast Iron
Bore
2.68 Inches
Stroke
2.60 Inches
Compression Ratio
8.2:1
CARB
Yes
Systems
Charging System
16 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank Size
2.25 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
1/4 Inch
PTO Height
5.25 Inches
Overview
Weight
72 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
047282812600
