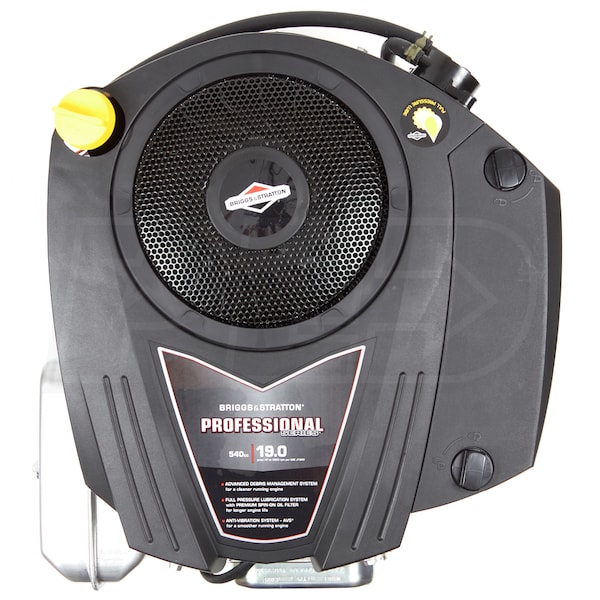

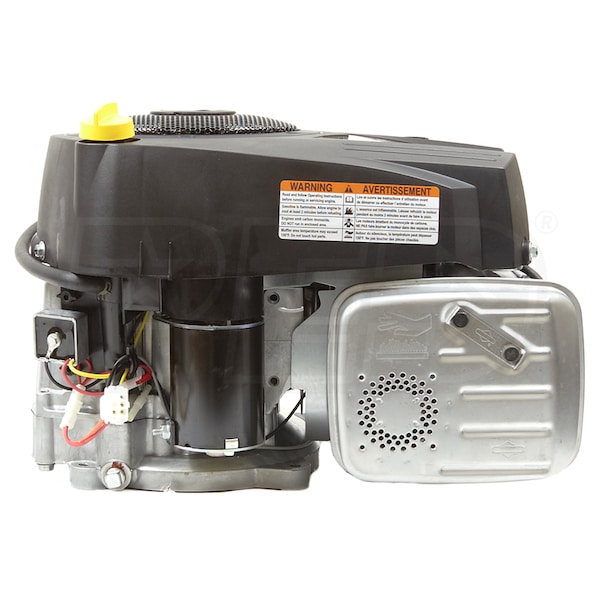

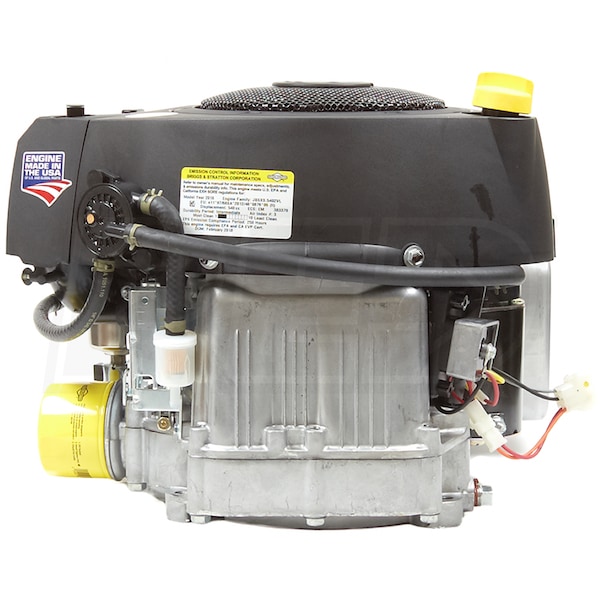

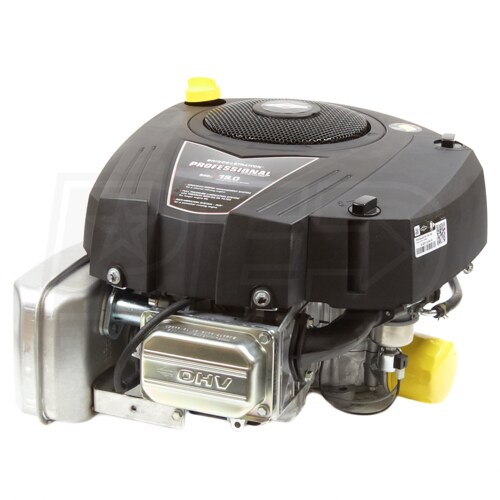

Briggs & Stratton Professional Series™ 540cc 19 Gross HP OHV Electric Start Vertical Engine, 1" x 3-5/32" Crankshaft, 1/4" Straight Keyway

Model:

33S877-0019-G1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton Professional Series™ 540cc 19 Gross HP OHV Electric Start Vertical Engine, 1
Briggs & Stratton Professional Series™ 540cc 19 Gross HP OHV Electric Start Vertical Engine, 1" x 3-5/32" Crankshaft, 1/4" Straight Keyway
Model: 33S877-0019-G1
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals

Features

  • Model# 33S877-0019-G1 - 1" x 3-5/32", Tapped 7/16-20 & 1/4" Straight Keyway
  • For lawn/garden tractors and wide-area walk mowers
  • Briggs & Stratton Professional Series™ 19 Gross HP Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Reliable and durable engine rated in accordance with SAE J1995
  • Overhead Valve (OHV) Technology
  • More power, less fuel-use & lower emissions; runs cooler for longer engine life
  • Full-Pressure Lubrication w/ Spin-On Oil Filter
  • Keeps the oil cleaner from debris that can damage internal engine parts
  • Dura-Bore™ Cast Iron Cylinder Sleeve
  • Assures long engine life and improved oil control
  • Anti-Vibration System - AVS®
  • Provides a smoother ride and more operator comfort
  • Advanced Debris Management System
  • High-volume cooling fan helps the engine breath freely
  • High Capacity Dual-Clean™ Cartridge-Style Air Cleaner
  • Industrial pleated paper w/ foam pre-cleaner for demanding applications
  • Float-Feed Carburetor & Mechanical Governor
  • Allows for fast fuel delivery for reliable starting and operation
  • Increases throttle response to maximize usable power for higher torque applications
  • Magnetron® Electronic Ignition System
  • Extremely reliable design, for consistent starting while being maintenance-free
  • 12V Electric Starter & 9A Regulated Charging System
  • Easily compatible with most tractor/mower starting systems
  • Includes Pulse-Type Fuel Pump (Gas Tank Not Included)
  • 2-Year Consumer Warranty & 1-Year Commercial Warranty Made in USA
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

33S877-0019-G1
specs product image PID-93291
Engine
Engine Series
B&S Professional Series
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
77 Lbs
CC
540 CCs
HP
19 HP
Cylinder Bore Type
Cast Iron
Bore
3.70 Inches
Stroke
3.06 Inches
Systems
Charging System
9 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
77 Pounds
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Length
17 Inches
Product Width
17 Inches
Product Height
12.5 Inches
UPC
047282149935
