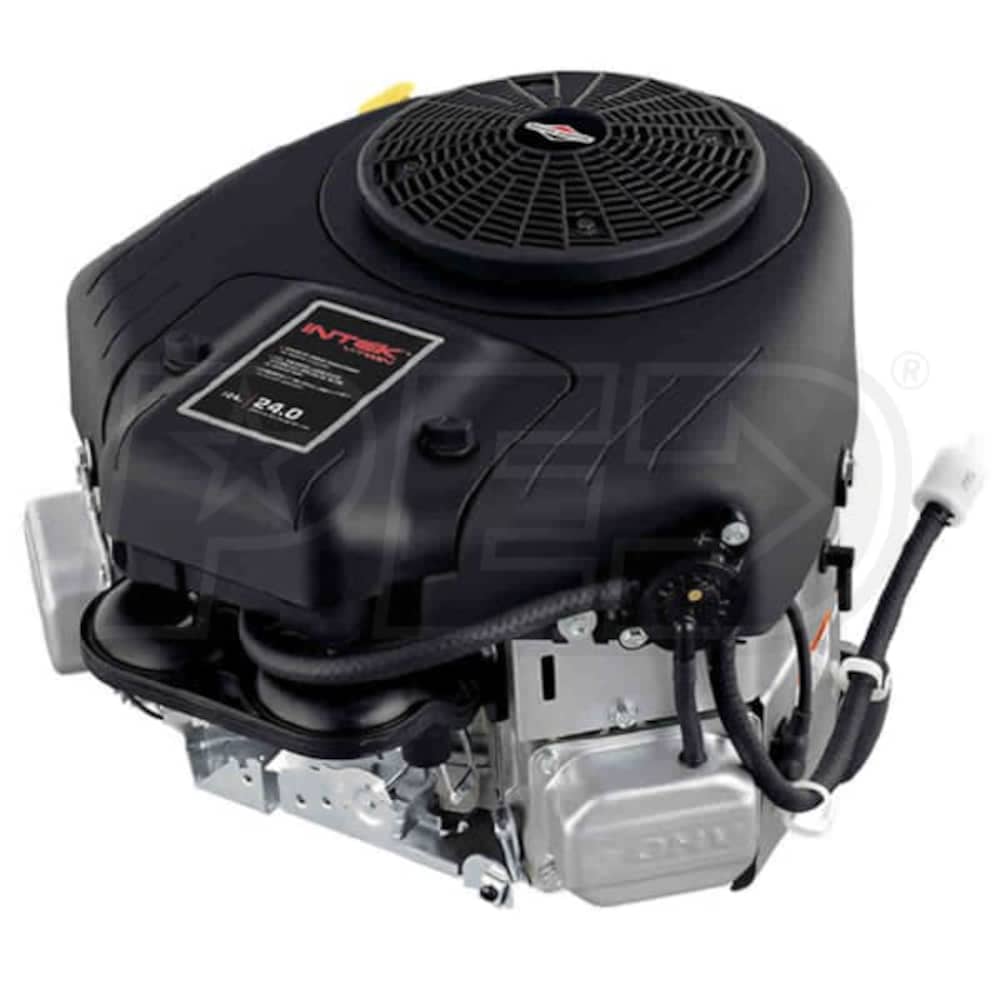

Briggs & Stratton Intek Series™ 724cc 24 Gross HP Electric Start Vertical Engine, 1" x 3-5/32" Crankshaft, Tapped 7/16"-20, 1/4" Keyway

Model:

44S977-0016-G1

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Briggs & Stratton Intek Series™ 724cc 24 Gross HP Electric Start Vertical Engine, 1
Briggs & Stratton Intek Series™ 724cc 24 Gross HP Electric Start Vertical Engine, 1" x 3-5/32" Crankshaft, Tapped 7/16"-20, 1/4" Keyway
Model: 44S977-0016-G1
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model# 44S977-0016-G1 - 1" x 3-5/32" Crankshaft, Tapped 7/16"-20, 1/4" Keyway
  • Dynamically balanced crankshaft for use on lawn/garden tractors and ZTR
  • Supersedes to model 44R877-0013-G1
  • Briggs & Stratton Intek Series™ Twin Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 24 gross HP* - Power levels are stated gross torque per SAE J1995
  • Overhead Valve (OHV) Technology
  • More power, less fuel-use & lower emmisions
  • Runs cooler for longer engine and valve life
  • Dura-Bore™ Engineering
  • Cast iron cylinder sleeve
  • Keeps the engine running cooler for maximum productivity
  • Advanced Debris Management System
  • High-volume cooling fan helps the engine breath freely
  • Full-Pressure Lubrication w/ Spin-On Oil Filter
  • Keeps the oil cleaner from debris that can damage internal engine parts
  • Float-Feed Carburetor & Mechanical Governor
  • Allows for fast fuel delivery for reliable starting and operation
  • Increases throttle response to maximize usable power for higher torque applications
  • 12-Volt Electric Start To Save Your Shoulder
  • Easily compatible with most tractor/mower starting systems
  • Includes 16-amp alternator
  • High Capacity Dual-Clean™ Premium Air Filter
  • Cartridge design w/ foam pre-cleaner keep more debris out of the engine
  • Includes Pulse-Type Fuel Pump (Gas Tank Not Included)
  • 2-Year Consumer Warranty & 1-Year Commercial Warranty
  • Replaces Engine #44N877-0013-G1
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

44S977-0016-G1
specs product image PID-77063
Engine
Engine Series
B&S Intek
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
90 Lbs
CC
724 CCs
HP
24 HP
Cylinder Bore Type
Cast Iron
Bore
3.12 Inches
Stroke
2.89 Inches
CARB
Yes
Systems
Charging System
16 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-5/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
90 Pounds
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Length
18.22 Inches
Product Width
17.9 Inches
Product Height
14.96 Inches
UPC
047282055328
