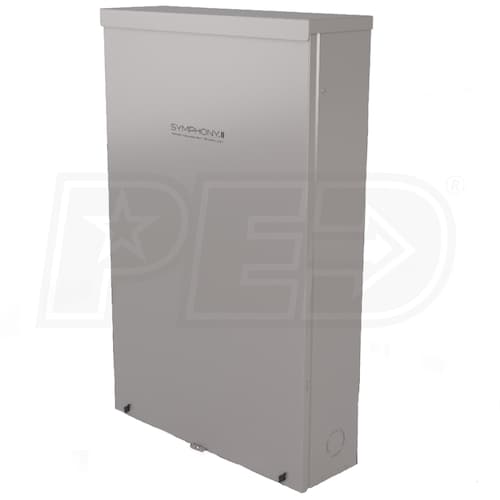

Briggs & Stratton 400-Amp Split Service Automatic Transfer Switch + AC Shedding (Service Disconnect)
Model:
71057
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Type
Service Disconnect
Amp Rating
400
Load Mgmt.
Built-In
Voltage
120/240 Single-Phase
Enclosure
NEMA 3R
- ONLY COMPATIBLE w/ 20-45kW BRIGGS & STRATTON GENERATORS
- 400-Amp Service Entrance Auto Transfer Switch
- A UL Listed solution for 2 x 200-Amp Service Breakers
- First In Its Class
- Eliminates the need for 2 separate auto transfer switches
- Service Entrance Rated - Power All Circuits Without A Sub-Panel
- Rated at 400-Amps @ 240V (2 x 200A)
- Faster Installation
- Pre-wired generator power distribution inside switch
- Less wiring & less time than typical 2 switch installations
- Smaller Transfer Switch Footprint
- Eliminates the space needed for two separate switches
- Resulting in a smaller, cleaner looking installation
- Symphony™ II Whole House Power Management
- Manages demands of up "8" high wattage loads (AC, Hot Water, etc.)
- Powers your whole home (load dependent) while preventing overload
- Versatile Design
- NEMA 3R cabinet allows for outdoor or indoor placement
- *Please Note* Reference Local Building Codes
- To determine if an ATS w/ seperate SE disconnects is required
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
71057
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
111 Pounds
Made in USA
Yes
Consumer Warranty
6 Years
Product Length
37 Inches
Product Width
23.7 Inches
Product Height
7 Inches
UPC
011675710514
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
