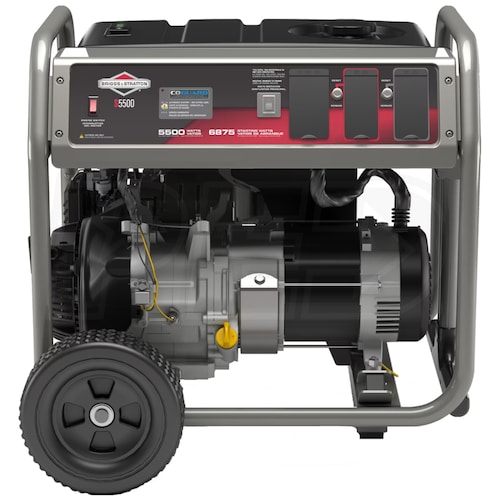

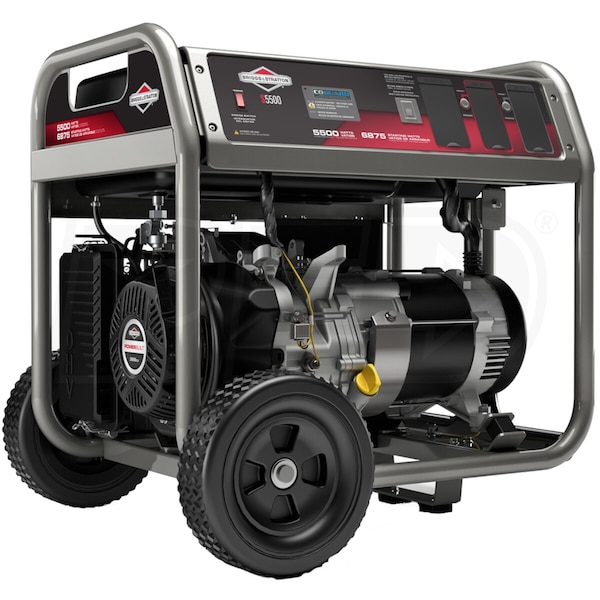

Briggs & Stratton S5500 - 5500 Watt Portable Generator w/ CO Guard® (CARB)
Model:
030744
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Portable
Run Watts
5,500 Rated Watts
Surge Watts
6,875
Starting Watts
Fuel
Gasoline
Engine
Briggs and Stratton OHV
- Briggs & Stratton S5500 Portable Generator (CARB)
- A good home backup portable generator option
- Enough power for small appliances or a few household items
- CO Guard Carbon Monoxide Shutdown
- Shuts down your generator when harmful CO levels accumulate
- Briggs & Stratton 389cc OHV Engine
- Provides long life, high performance, and great fuel efficiency
- Power Surge™ Alternator
- Produces up to 25% more starting wattage for all your power needs
- Single-Sided Control Panel
- All user touch points are conveniently located
- Features rubber outlet covers
- 7-Gallon Metal Fuel Tank w/ Fuel Gage
- Provides up to 12.5 hours of run time at 1/2 load
- Designed For Easy Mobility
- 10" Never go flat wheels move with ease over most surfaces
- Fold-down "T-Handle", takes up less space when stored
- Easy Maintenance
- Built-in hour meter helps you keep track of oil changes
- CARB Compliant
- 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
030744
Overview
Product Category
Generator - Standby
Assembly Required
Yes
Weight
187 Pounds
CARB Compliant
Yes
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Style
Portable Generator
Product Length
29 Inches
Product Width
21.5 Inches
Product Height
25.5 Inches
UPC
011675307448
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
No
Rated Watts
5500 Watts
Surge Watts
6875 Watts
Fuel Type
Gasoline
Rated Amps
23 Amps
Portability Kit
Never Flat Wheels
Tank Size
7 Gallons
Run Time @ 50% Load
12.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Battery
Not Applicable
Grade Type
Emergency
CO Sensing
Yes
Low THD
No
Engine
Engine Brand
Briggs and Stratton OHV
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
No
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
