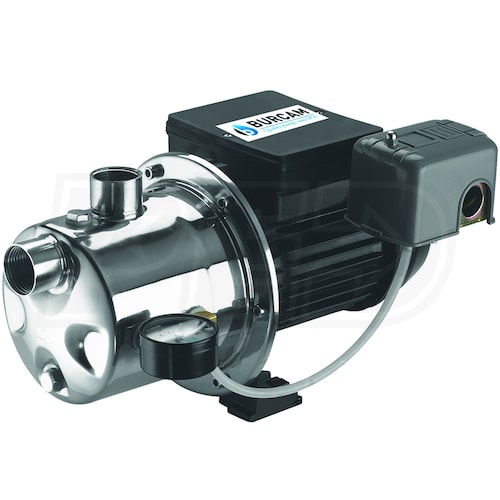

Burcam Pumps 16 GPM 3/4 HP Stainless Steel Shallow Well Jet Pump

Model:

506518SS

Write A Review
$281.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Nov 25th
Shipping to60601

Burcam Pumps 16 GPM 3/4 HP Stainless Steel Shallow Well Jet Pump
Burcam Pumps 16 GPM 3/4 HP Stainless Steel Shallow Well Jet Pump
Model: 506518SS
$281.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1 Inch

Style

Shallow Well

GPM

16.4 Gallons

  • 3/4 HP Shallow Well Jet Pump
  • Ideal for use in pumping depths of 25' or less
  • 115/230V TEFC Motor
  • Totally enclosed, bearing to bearing
  • 3.75A (Run) / 7.5A (Start) @ 230V
  • Thermal & Overload Protection
  • Provides added safety to protect your investment
  • Stainless Steel Pump Body, Shaft & Rotary Mechanical Seal
  • High quality components for years of reliable operation
  • Noryl Impeller & Built-In Injector
  • Provides quiet performance
  • Easy-Priming Design
  • Due to design and large pump body
  • Continuous Duty Operation
  • Great for demanding applications
  • To be used with a pre-charged air pressure tank
  • Includes 30/50 Pressure Switch
  • 2-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Isoprene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

506518SS
specs product image PID-7178
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Running Amps
7.5
Starting Amps
16
Pump
Gallons Per Minute
16.4 Gallons
Inlet Diameter
1 Inch
Outlet Diameter
1 Inch
Housing Material
Stainless Steel
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
70
Submersible
No
Engine
Continuous Operation
Yes
Oil-Cooled
No
Shaft Seal
Stainless Steel
Horsepower
0.75 HP
Overview
Product Category
Water Pump
Weight
18 Pounds
Consumer Warranty
2 Years
Product Length
12 Inches
Product Width
10 Inches
UPC
772910065188

Reviews

(8)
Burcam 506518SS Reviews & Ratings

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Jim, the Water Pump Expert
What is the maximum depth of a "shallow" well pump? I want to use an on top pump if possible and my well is 150 ft. deep
Alfred H
from Arkansas
April 03, 2013
