Features
Inlet Size
1-1/4 Inch
Style
Convertible Jet
GPM
13 Gallons
- Burcam Noryl Convertible Tankless Jet Pump
- Ideal for use in shallow wells (less than 25')
- Ideal for use in deep wells (up to 70')
- Noryl Thermoplastic Pump Body & Injector
- Corrosion-resistant design helps reduce rust contamination
- 115/230-Volt TEFC Motor
- Totally enclosed, fan-cooled design
- Thermal & Overload Protection
- Provides added safety to protect your investment
- Continuous Duty Capacitor
- Eliminates starting wear
- Radial Type Impeller
- Provides quiet operation
- Stainless Steel Shaft & Rotary Mechanical Seal
- High quality components for years of reliable operation
- Fluomac Pump Control System
- No need for a conventional type tank
- Maintains A Constant Pressure
- No need for a pressure switch
- Fully Electronic
- Regulates & controls the delivery of water, maintains pressure
- Added Features
- Protects the pump from running dry & requires no maintenance
- 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
506732P
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
13 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Pump Housing Drain
Yes
Housing Material
Thermoplastic
Impeller Material
NORYL
Suction Head
70 Feet
Maximum PSI
70
Submersible
No
Engine
Horsepower
0.75 HP
Overview
Product Category
Water Pump
Weight
32 Pounds
Consumer Warranty
2 Years
UPC
772910557324
Reviews
(2)
Burcam 506732P Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Jim, the Water Pump Expert
What is the max head lift?
Aaron
from Pennsylvania
June 13, 2022
How-To Articles
How to Pick the Perfect Well Pump
Using centrifugal force, a well pump shoots water from its underground reservoi...
Priming Your Well Pump
Well pumps have been around for centuries, but the days of using a bucket and r...
How to Pick the Perfect Specialty Water Pump
All water pumps are built for the same purpose: moving water. But there are sp...
Manuals
506732P
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

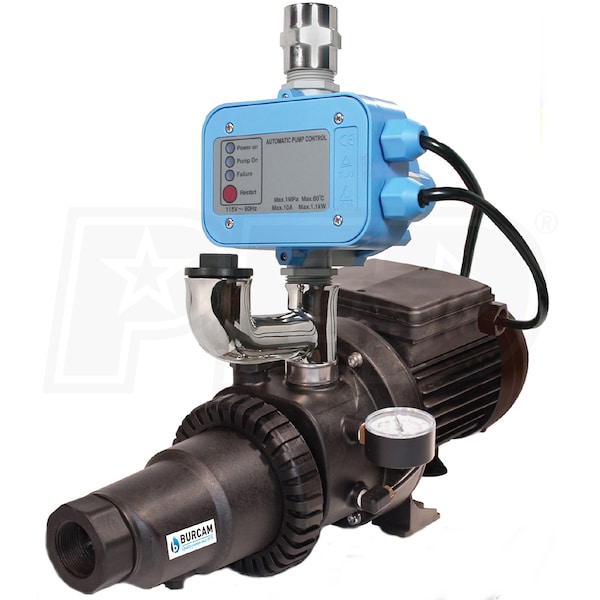

Burcam Pumps 3/4 HP Noryl Convertible Tankless Jet Pump
