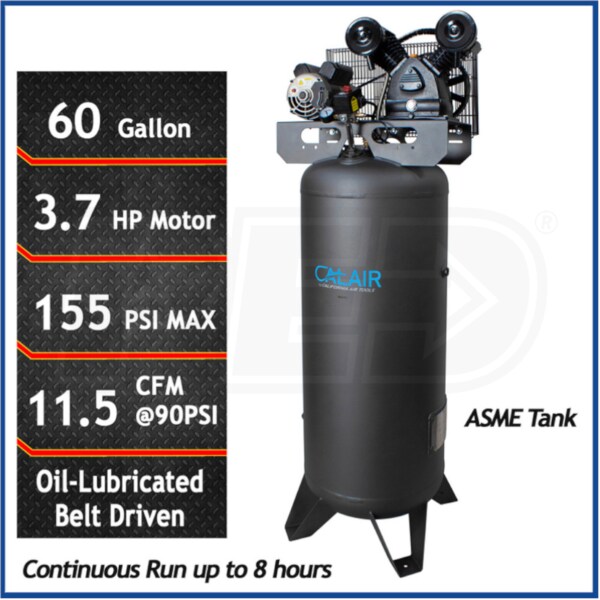

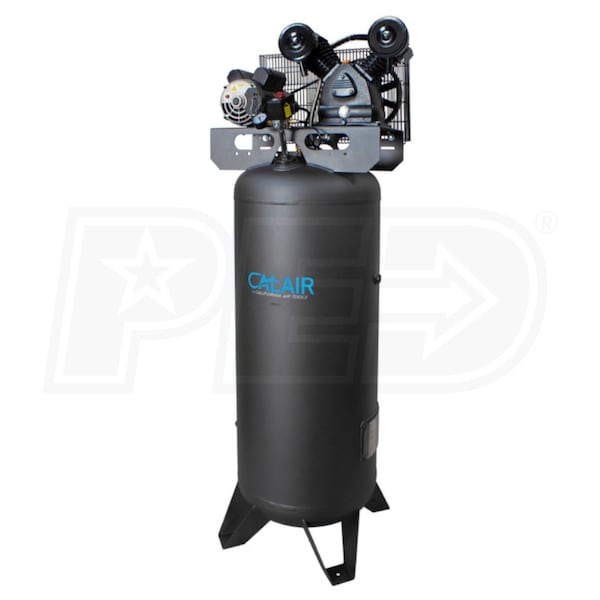

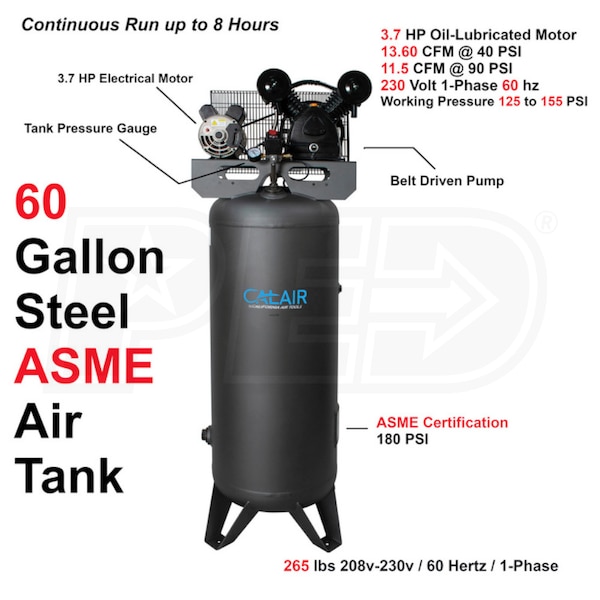

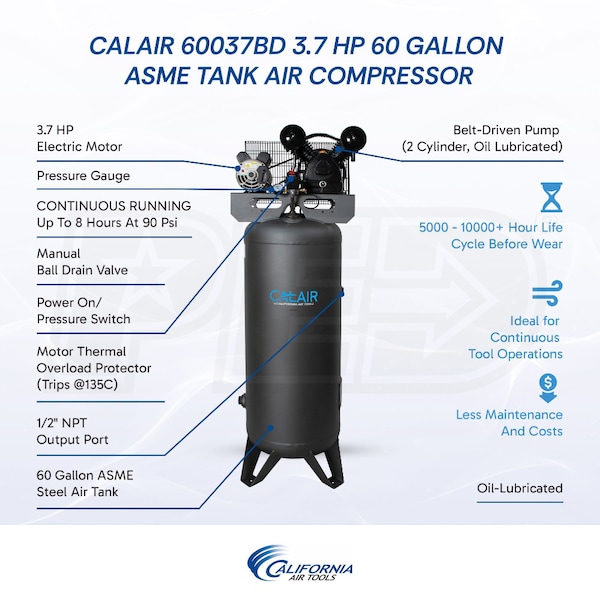

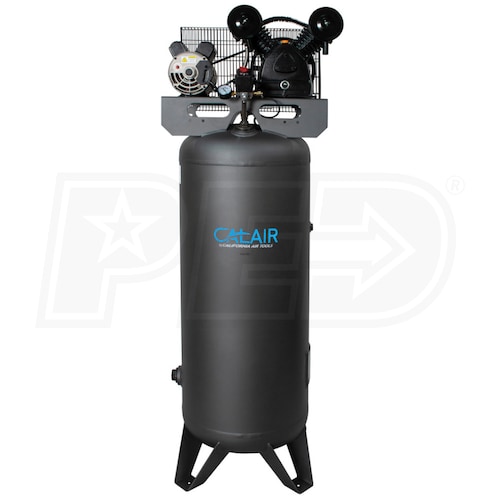

California Air Tools CALAIR 60037BD 3.7HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase)

Model:

60037BD

Write A Review
$1,149.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days

California Air Tools CALAIR 60037BD 3.7HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase)
California Air Tools CALAIR 60037BD 3.7HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase)
Model: 60037BD
$1,149.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Single Stage 1-Phase

CFM

11.5

Tank Size

60

  • CALAIR Single-Stage Oil-Lubricated Belt Driven Air Compressor
  • Tackle airbrushing, drilling, sanding and bolting/wrenching
  • Perfect for DIY projects to the professional air compressor user
  • Heavy-Duty 3.7-HP Induction Motor
  • Provides maximum performance and efficiency

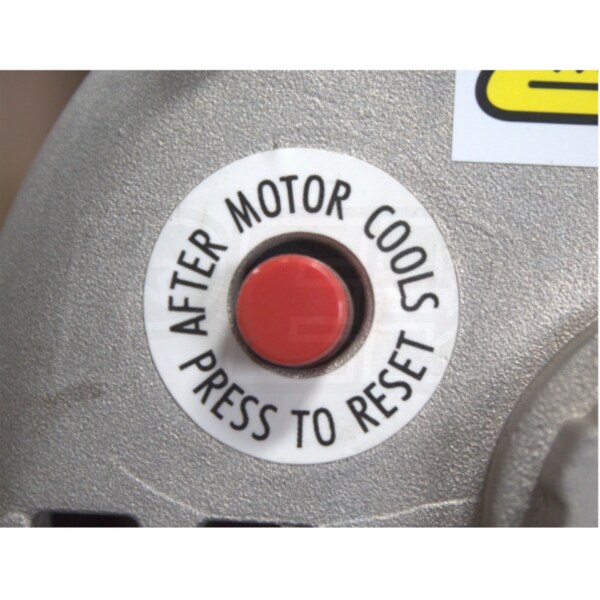

  • Motor thermal overload for maximum protection
  • Includes NEMA 6-15P plug (6' power cable) may be connected to either a 6-15R or 6-20R receptacle
  • Continuous Run Up to 8 Hours (10 Hours Maximum)
  • Plenty of power to run a wide range of air tools
  • Tackle airbrushing, drilling, sanding and bolting/wrenching

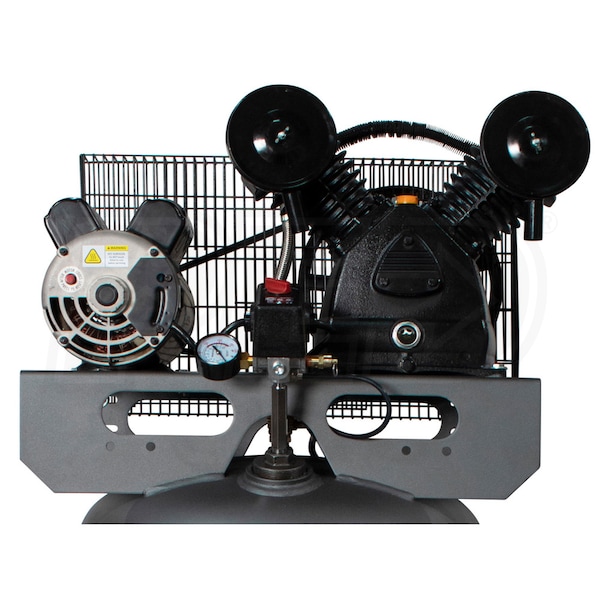

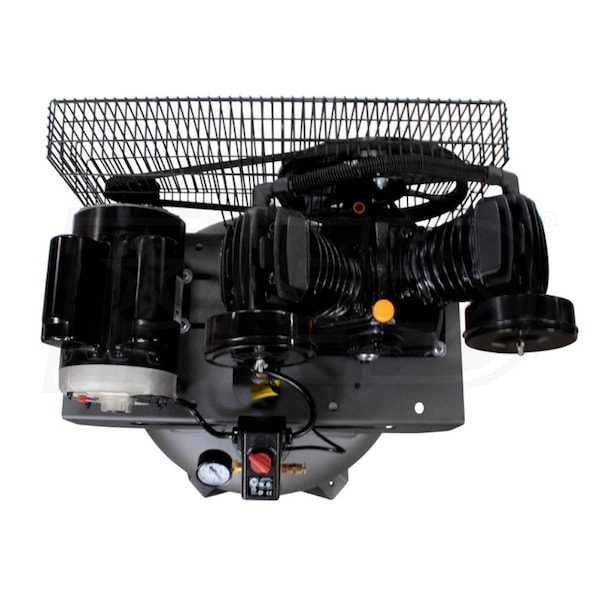

  • Cast Iron V-Twin Oil Lubricated Pump
  • Thermally stable cast iron cylinder body
  • Power on/pressure switch and safety relief valve
  • Life cycle before maintenance/service of 5,000 to 10,000 hours of usage
  • Working Pressure: 125 - 155 PSI
  • Time to fill tank from empty to full (155 PSI) - 6 min 52 second
  • Recovery time from 125 PSI to 155 PSI - 1 min 37 seconds
  • Maximum Operating (ambient) Temperatures: 36 to 108°F

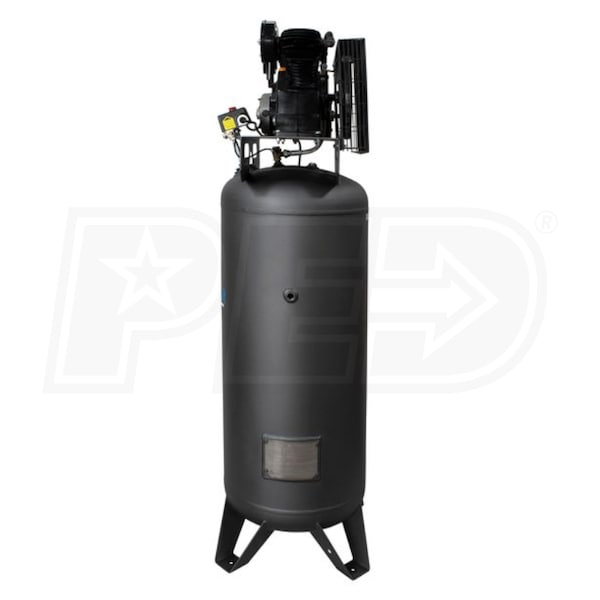

  • 60-Gallon ASME Vertical Tank
  • Fully enclosed belt guard protects you and the belt

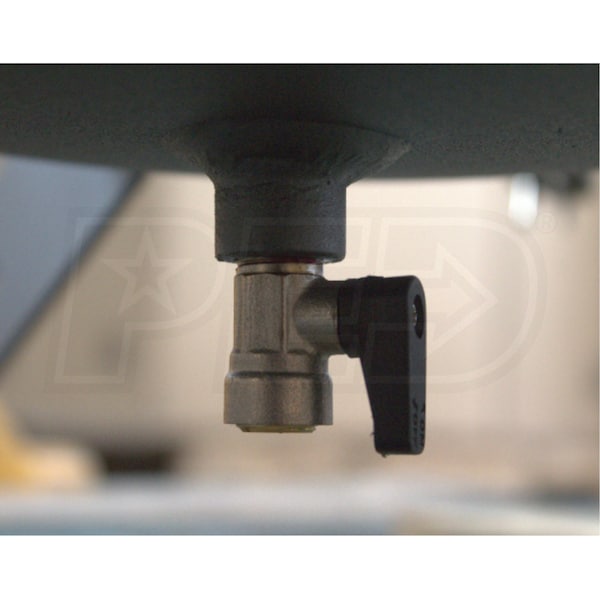

  • Easy-access manual drain simplifies routine maintenance
  • Easy Viewing Oil Sight Glass On Pump
  • Easily check compressors pump oil level
  • Conveniently accessible oil fill for fast maintenance
  • 1-Year Limited Manufacturer Warranty
  • 2 limited warranty on pump; Protect your investment
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

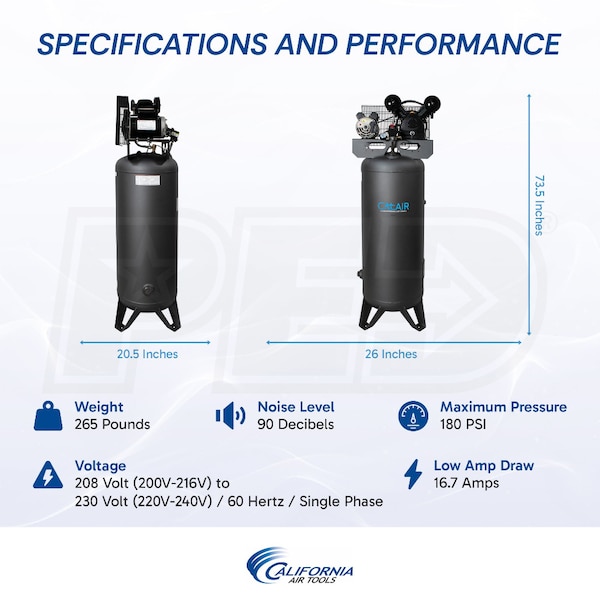

Specifications

60037BD
specs product image PID-154009
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
16.87
Recommended Breaker
20 Amp Breaker
Engine
HP
3.7
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
11.5
CFM Rated @
90 PSI
CFM @ 40 PSI
13.6
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
418 Pounds
Certification
265
Consumer Warranty
1 Year
Product Length
26 Inches
Product Width
20.5 Inches
Product Height
73.5 Inches
Power Type
Electric
UPC
850053943935
