California Air Tools SP Ultra Quiet & Oil-Free 2-HP 10-Gallon Steel Tank Air Compressor w/ Dryer (220V 1-Phase)
Model:
CAT-10020DC-22060
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Style
Single Stage 1-Phase
CFM
5.3
Tank Size
10
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Powerful 2-HP SP-Series 220V Single-Phase Motor (Not For Medical Use)
- 70 dBA is ideal for indoor use where noise is an issue
- Low 1400 RPM creates less noise & wear; low 7 Amp draw

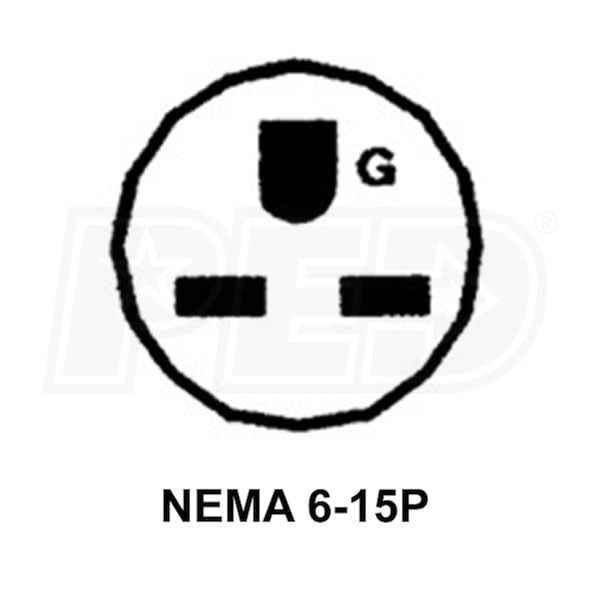

- Top mounted controls provide easy access; NEMA 6-15P outlet required
- Oil-Free Dual Piston Pump System
- 6.4 CFM @ 40 PSI; 5.3 CFM @ 90 PSI; 125 PSI maximum
- Minimum pump life of 3000 hours before service
- Works in a variety of temperatures & surroundings
- Designed For Increased Duty Cycles & Run Times
- Time to fill tank from empty to full - 130 Seconds
- Recovery time from 118 PSI to 125 PSI - 40 Seconds
- Air Dryer With Activated Alumina Desiccant
- Removes water vapor from compressed air to protect tools & machinery
- Activated Alumina has a 4000 hour service life
- Provides high water, carbon dioxide, & sulphur compound adsorption
- Aftercooler Condenser
- Heat exchanger cools the discharge air, causing condensation
- The water vapor is pushed into the air dryer for evaporation
- 10 Gallon Steel Air Tank
- Kick-on pressure 95 PSI; kick-off pressure 125 PSI
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
CAT-10020DC-22060
General Information
Product Category
Air Compressor - Stationary
Engine
HP
2
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
70
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
7
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.3
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
91 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
16 Inches
Product Width
23 Inches
Product Height
35 Inches
Power Type
Electric
UPC
743369710240
