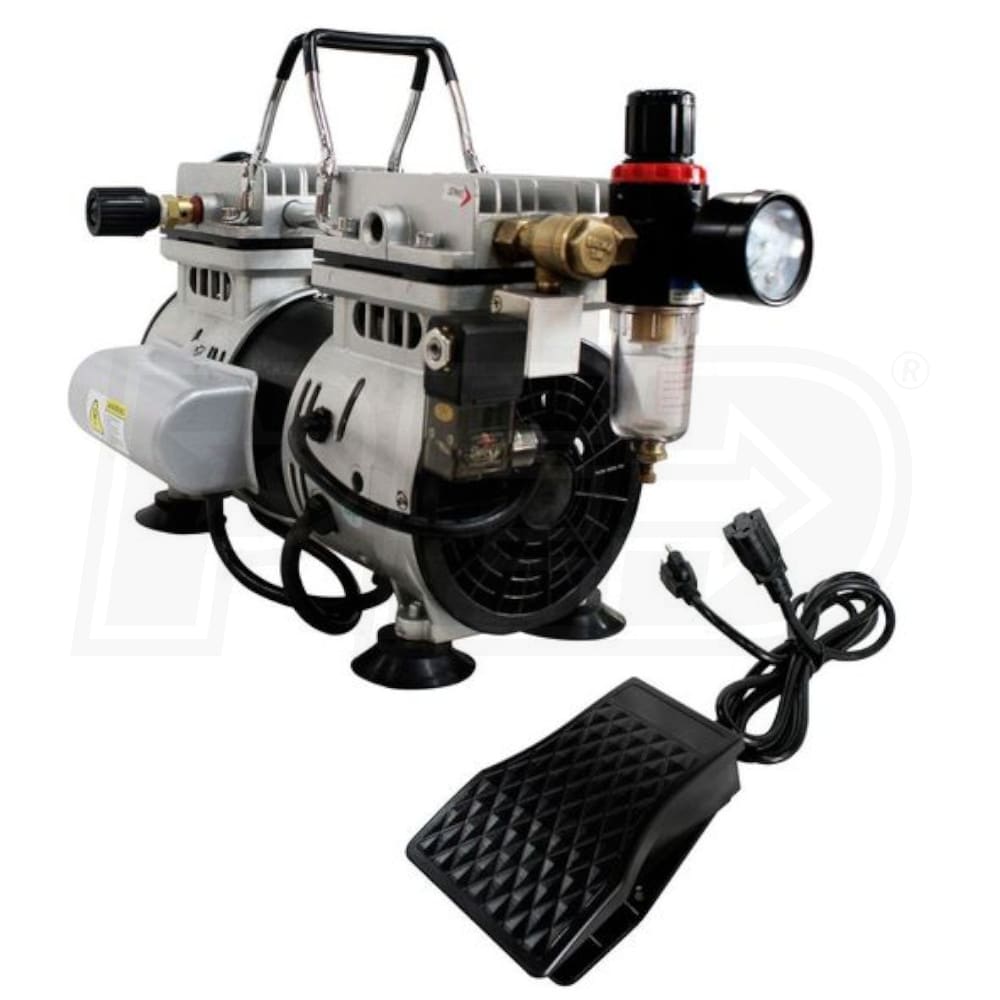

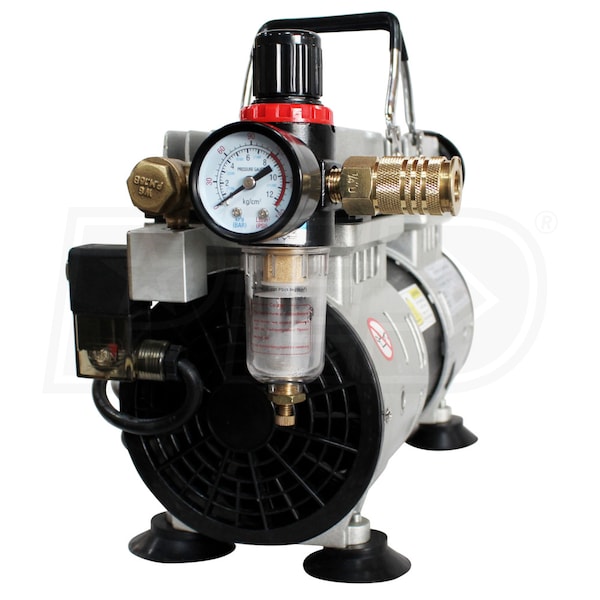

California Air Tools Ultra Quiet & Oil Free 1-HP Tankless Air Compresssor w/ Power Pedal

Model:

CAT-10TL

Write A Review
$279.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

California Air Tools Ultra Quiet & Oil Free 1-HP Tankless Air Compresssor w/ Power Pedal
California Air Tools Ultra Quiet & Oil Free 1-HP Tankless Air Compresssor w/ Power Pedal
Model: CAT-10TL
$279.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Portable - Horizontal

CFM

2.20

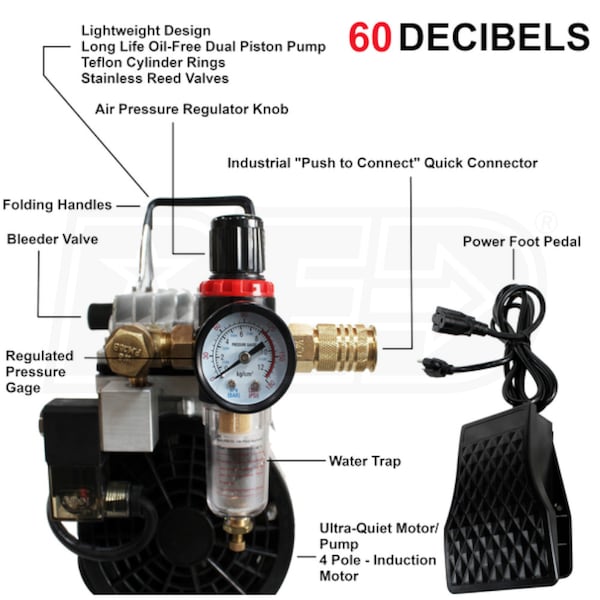

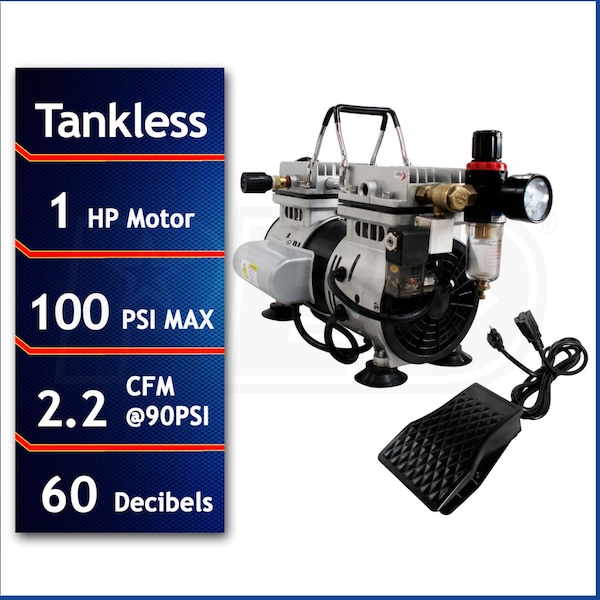

  • Ultra-Quiet Tankless Air Compressor
  • 65 dBA is ideal for indoor use where noise is an issue
  • Pair with air tank (sold separately) that fits your needs
  • Great for inflating, engraving, airbrushing & many other air tools
  • Durable 1-HP Motor (2.0-HP Peak)
  • 1680 RPM creating less noise and less wear
  • 1-hour max (non-stop) continuous running motor
  • Oil-Free Dual Piston Pump System
  • Works in a variety of temperatures & uneven terrains
  • 3000+ hour life cycle before wear; comparable units are 500 hours or less
  • Bleeder Valve
  • Lets you adjust pressure from 100 PSI to 0 PSI
  • Reduces excess pressure to protect motor/pump stalling or hard starts on restarts

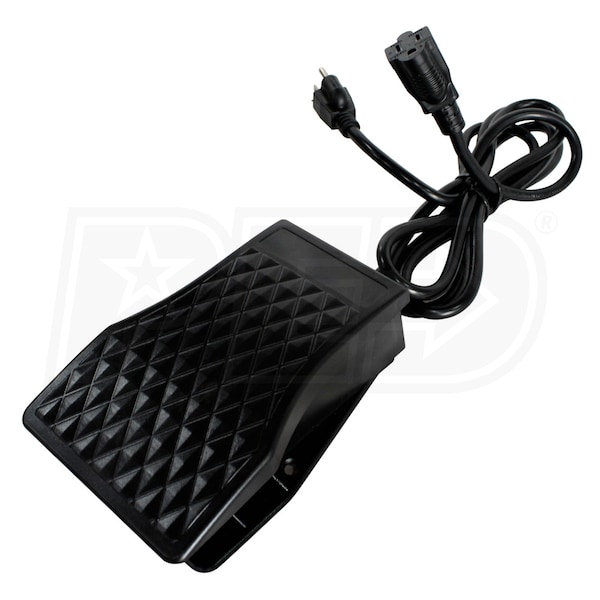

  • Power Foot Pedal
  • Frees up hands by allowing you to control the power with your foot
  • Thermal Overload Protector
  • Protects the motor from overheating
  • 7.5 amp draw works on most household outlets
  • Top Mounted Controls & Folding Handles

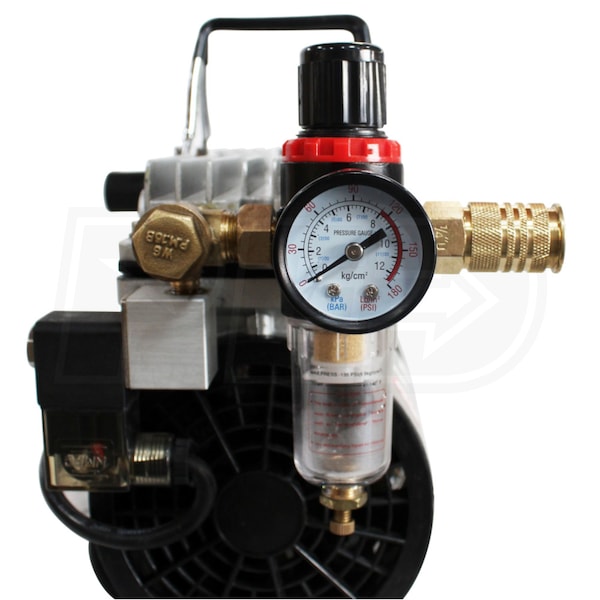

  • Dual gauges let you check tank & tool pressure easily
  • 1/4" air outlet with a quick connector for fast hose changes
  • Air Filter & Attached Water Trap
  • Delivers cleaner air for better tool operation
  • Helps to remove moisture, dust and dirt from the air
  • Exceeding 1 Hour Of Continuous Running Can Cause Motor Damage
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAT-10TL
specs product image PID-97884
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
7.5
Engine
HP
1
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.20
CFM Rated @
90 PSI
CFM @ 40 PSI
3.10
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
100 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
25 Pounds
Consumer Warranty
1 Year
Product Length
16.6 Inches
Product Width
8 Inches
Product Height
12.75 Inches
Power Type
Electric
UPC
850004451182
