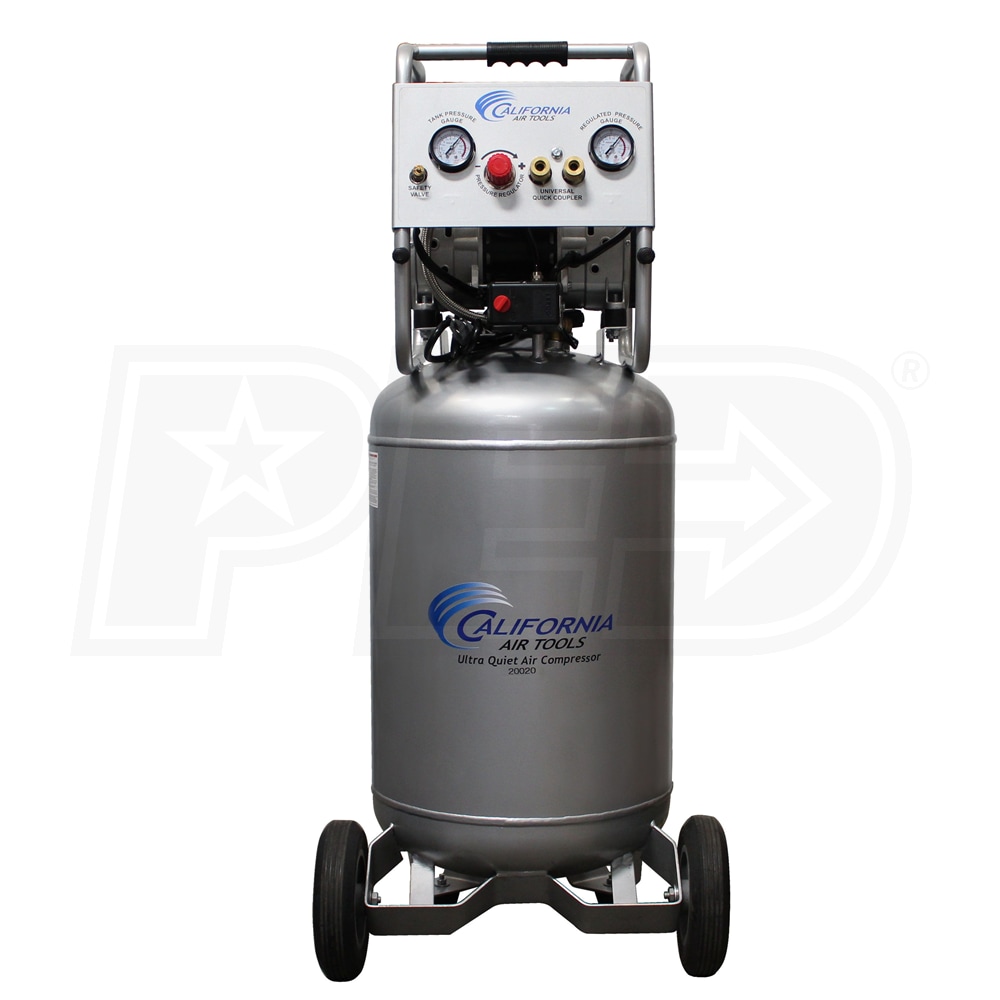

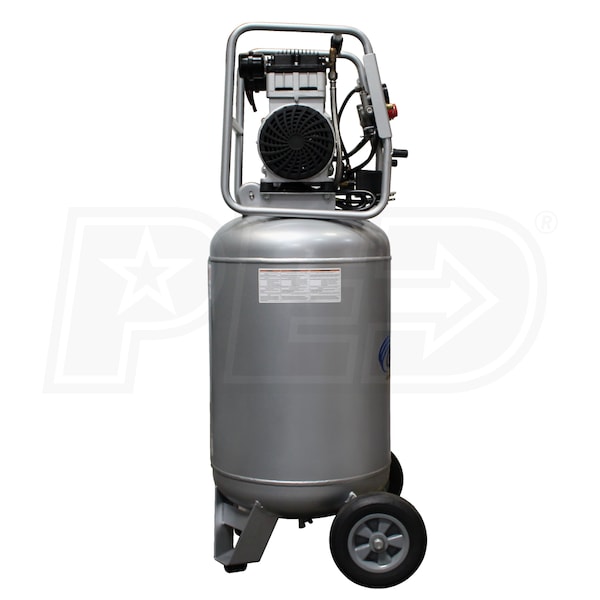

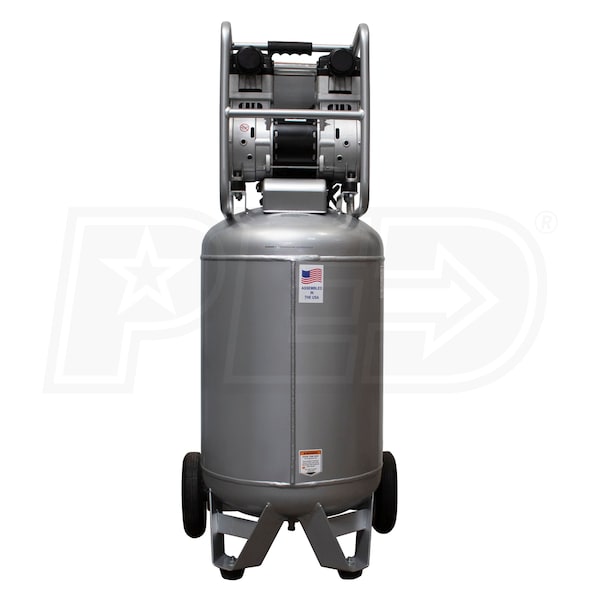

California Air Tools SP Ultra Quiet & Oil-Free 2-HP 20-Gallon Steel Tank Air Compressor (220V 1-Phase)

Model:

CAT-20020-22060

Write A Review
$535.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

California Air Tools SP Ultra Quiet & Oil-Free 2-HP 20-Gallon Steel Tank Air Compressor (220V 1-Phase)
California Air Tools SP Ultra Quiet & Oil-Free 2-HP 20-Gallon Steel Tank Air Compressor (220V 1-Phase)
Model: CAT-20020-22060
$535.00
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Optional Accessories 7
$11.99
Factory-Direct
$113.00
Factory-Direct
$49.00
Factory-Direct
$170.99
Factory-Direct
$216.00
Factory-Direct

Features

Grade

Consumer

Style

Portable - Vertical

CFM

5.3

Tank Size

20

California Air Tools SP Ultra Quiet & Oil-Free 2-HP 20-Gallon Steel Tank Air Compressor (220V 1-Phase)


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Ultra-Quiet & Dependable Portable Air Compressor
  • Designed to be one of the quietest 2.0-HP in the industry
  • Perfect for continuous tools, staple guns, nail guns and airbrushes
  • Oil-Free Dual Piston Pump System
  • Use in a variety of temperatures (cold starts) and uneven terrains
  • Air filters included for extra protection against dust and dirt
  • 3000+ hour life cycle before wear; comparable units are 500 hours or less
  • Powerful 2-HP SP Series 220V 1-Phase Motor
  • Operates at only 1680 RPM creating less noise and less wear
  • Increased duty cycle allows for longer continuous run times
  • Thermal Overload Protector & Easy Start Valve
  • Protects motor from overheating; 7 amp draw
  • No-load startup allows for easier starting by using less starting amps
  • 20-Gallon Steel Air Tank w/ Wheel Kit
  • Time to fill tank from empty to full - 4 Minutes
  • Recovery time from 95 PSI to 125 PSI - 1 Minute
  • Top Mounted Controls
  • Two 1/4" air outlets with quick connectors for fast tool changes
  • Large dual pressure gauges let you check tank and tool pressure at a glance
  • Built-In Regulator & Pressure Switch
  • Maintains constant outlet pressure for tools
  • Efficient pressure control reduces wear and tear on the unit
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAT-20020-22060
specs product image PID-113763
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
220 Volt
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
70
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
7
Engine
HP
2
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.3
CFM Rated @
90 PSI
CFM @ 40 PSI
6.40
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
114 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
20 Inches
Product Width
20 Inches
Product Height
45 Inches
Power Type
Electric
UPC
850004451472

Reviews

(3)
California Air Tools CAT-20020-22060 Reviews & Ratings
Customer Photos and Videos
review image 1
Verified Buyer
Verified Buyer
Great Quality, Super Quiet
By Jason E
Tennessee
Purchased 04/07/2023 |
Review Posted 05/03/2023
Bought this 220V compressor based on its decibel rating. It does not disappoint. Runs super quiet and quality seems to be great although I have only had it a few weeks.
Jason E Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, I'd Buy It Again
Cons:
None
As Advertised
By Henry S
Ohio
Review Posted 09/24/2022
Works as advertised, fast startup and recovery. Not ultra quiet but much quieter then my old one.
Henry S Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Excellent Customer Service And Great Product
By Bill G
California
Review Posted 09/21/2022
review 3 image 1
Ordered the 20 Gal 110V version first, then changed my mind as I discovered the 220V receptacle was behind the old compressor that was being used via 110V . Called ACD customer service and explained my situation and would prefer the 220V unit. Excellent customer service, very friendly and agreeable. Told me my 110V unit had shipped, however they would recall the shipment. Asked me if I wanted to wait for the credit minus the return freight before ordering the 220V unit. Since the customer service was very agreeable I ordered the new unit at the same time. The new 220V unit arrived as stated with delivery updates and the 110V unit credit came through the following week with prior email updates. Can't ask for much more. Great service. And as to the Calif Air compressor.....quiet, as stated.

Now I don't have to leave the shop after turning on the compressor. It's much quieter than other shop compressors I've had and performs as stated. Very nice unit, I think you will be very pleased with the Calif Air Compressor and the customer service. They even gave me the contact number to the manufacturing facility as I had a couple questions regarding the plug and receptacle configuration. I would not hesitate to purchase from them again.
Bill G Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, I'd Buy It Again, Easy To Store, Quiet
Cons:
None, shipper banged up the packaging, skewed the decal logo and dinged the paint job in a couple places.
