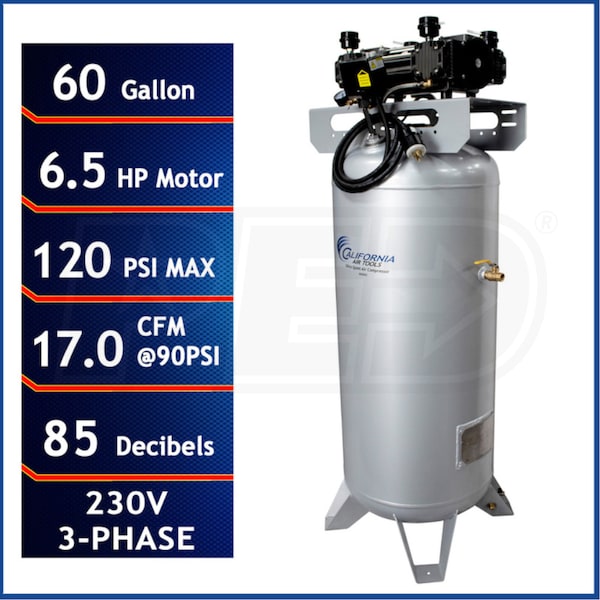

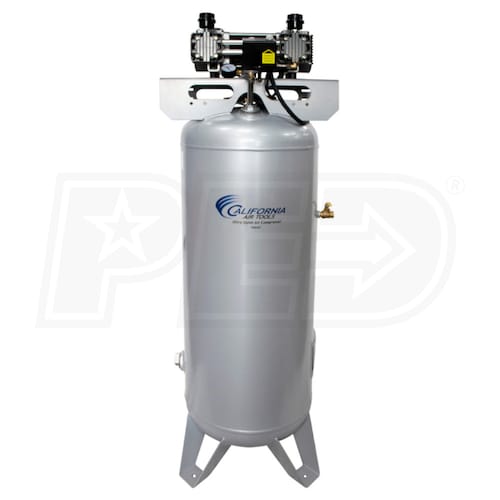

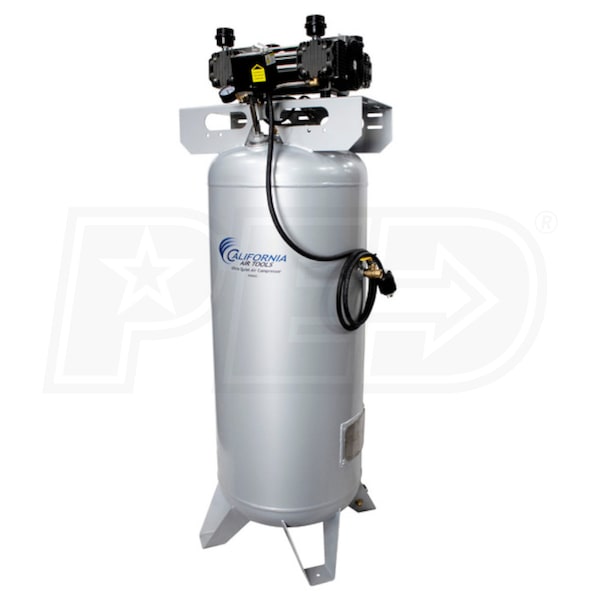

California Air Tools Ultra Quiet & Oil-Free 6.5-HP 60-Gallon Steel Tank Air Compressor (230V 3-Phase)

Model:

CAT-60065C

Write A Review
$2,079.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

California Air Tools Ultra Quiet & Oil-Free 6.5-HP 60-Gallon Steel Tank Air Compressor (230V 3-Phase)
California Air Tools Ultra Quiet & Oil-Free 6.5-HP 60-Gallon Steel Tank Air Compressor (230V 3-Phase)
Model: CAT-60065C
$2,079.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

CFM

17

Tank Size

60

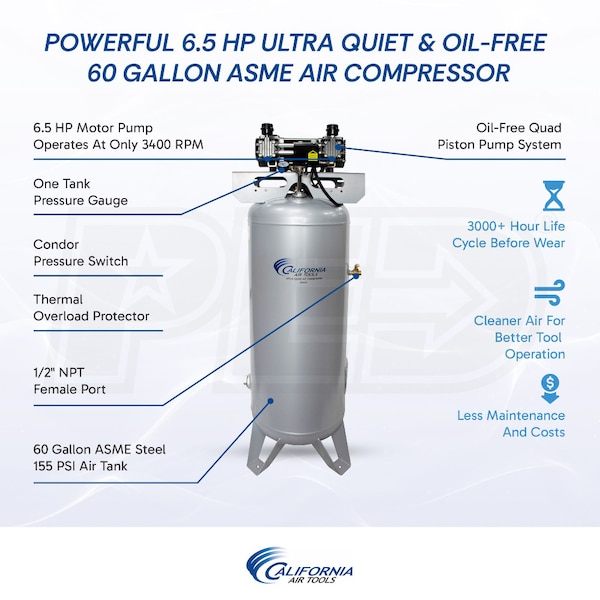

  • Powerful 6-HP Ultra Quiet & Oil-Free Air Compressor
  • Designed for larger companies running on 3-phase only
  • Ideal commercial business, manufacturing operations, autobody shops & other general pneumatic
  • Powerful 6.5-HP 230V 3-Phase Motor

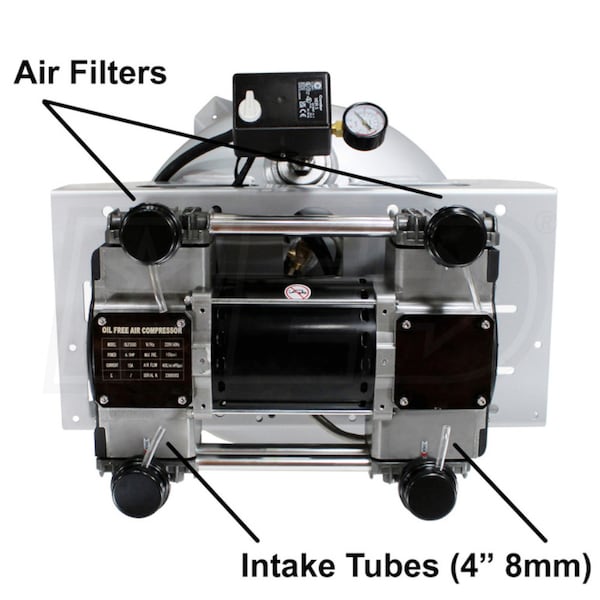

  • Comes complete with 4 air filters
  • Operates at 3400 RPM creating less noise and less wear
  • Ultra-Quiet at only 75 decibels

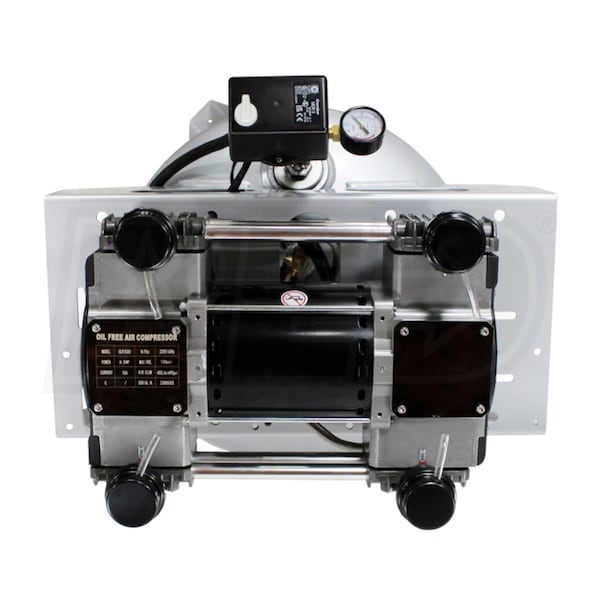

  • Oil-Free Piston Pump
  • Use in a variety of temperatures (cold starts) and uneven terrains
  • Oil-free offers less maintenance, cost, and clean air for tools
  • 60 Gallon ASME Steel Air Tank
  • Time to fill tank from empty to full - 191 Seconds
  • Recovery time from 92 PSI to 120 PSI - 35 Seconds
  • Condor Pressure Switch
  • Protects the motor from overheating
  • Regulates air pressure in the compressor
  • Thermal Overload Protector
  • Protects the motor from overheating

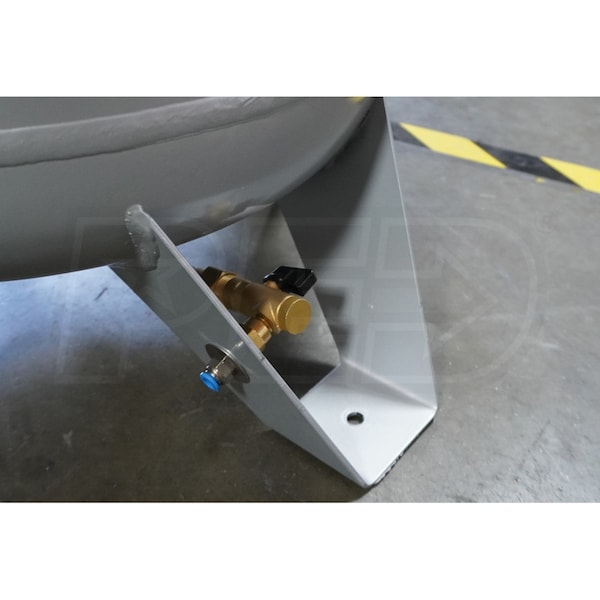

  • Manual Tank Drain w/ Strainer Cleanout
  • Routine draining prevents air contamination & prolongs tool life
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAT-60065C
specs product image PID-154182
General Information
Product Category
Air Compressor - Stationary
Motor

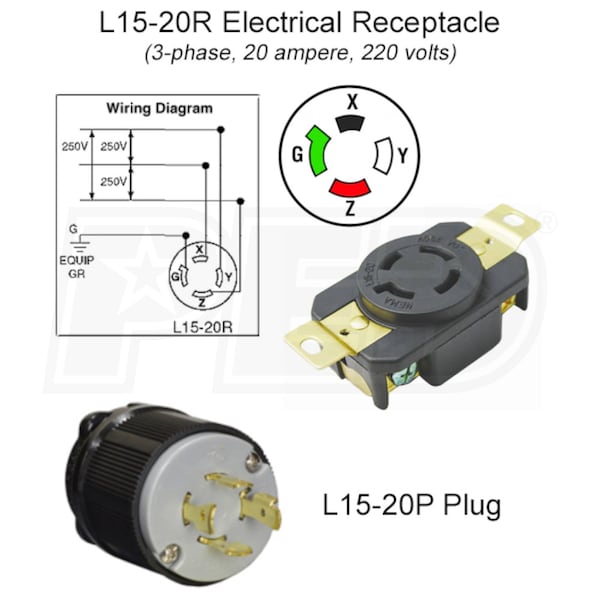

Voltage
230 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
85
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
15
Recommended Breaker
20 Amp Breaker
Engine
HP
6.5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
17
CFM Rated @
90 PSI
CFM @ 40 PSI
20
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
120 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
260 Pounds
Certification
ASME
Consumer Warranty
1 Year

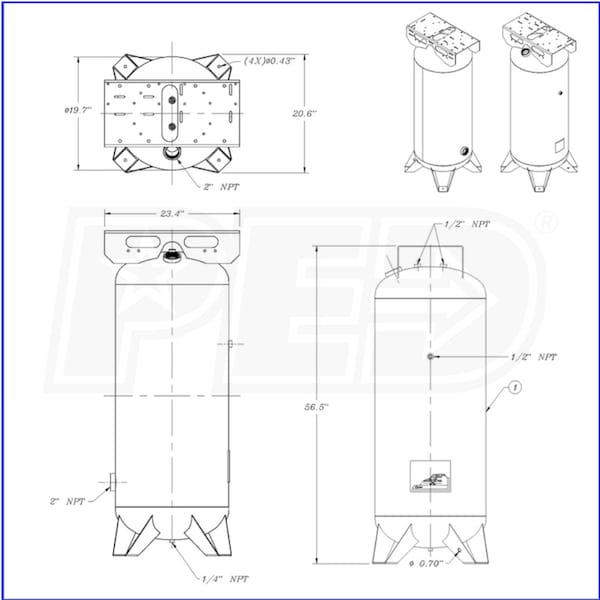

Product Length
32.5 Inches
Product Width
28 Inches
Product Height
60.5 Inches
Power Type
Electric
UPC
850053943553
