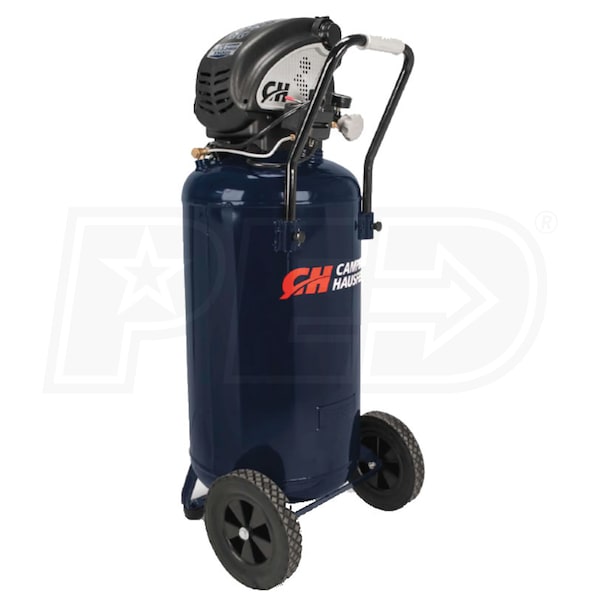

Campbell Hausfeld 1.3-HP 26-Gallon Air Compressor

Model:

DC260000

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Campbell Hausfeld 1.3-HP 26-Gallon Air Compressor
Campbell Hausfeld 1.3-HP 26-Gallon Air Compressor
Model: DC260000
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Portable - Vertical

CFM

4

Tank Size

26

  • Portable Air Compressor
  • Designed for the DIY enthusiast or weekend warrior
  • Vertical design takes up less room in your shop or garage
  • Oil Free, Maintenance Free Pump
  • Delivers 4 CFM at 90 PSI and 5 CFM at 40 PSI, perfect for a wide range of garage & workshop projects
  • 1.3-HP Induction Motor
  • Designed for superior performance and long product life

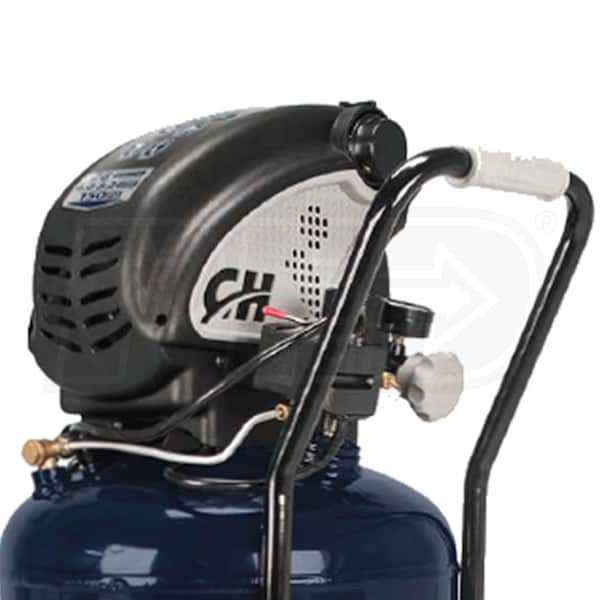

  • Fully Enclosed Motor & Pump
  • Robust shroud covers & protects all working components

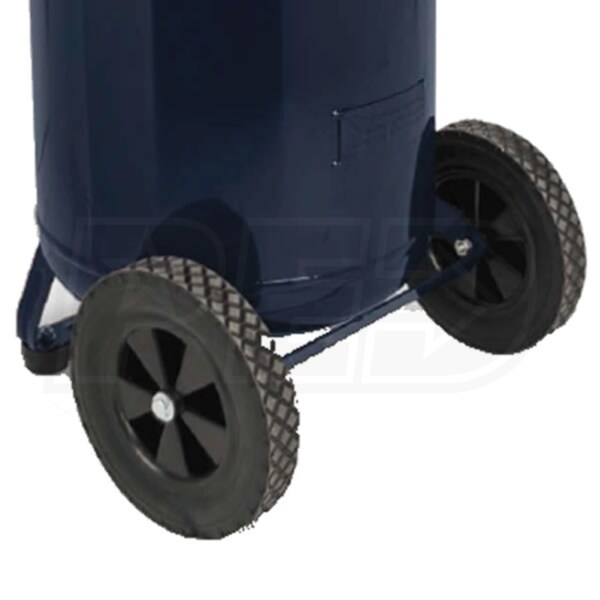

  • Steel Handle & Large Wheels
  • Easy to transport & store
  • 26 Gallon Air Receiver
  • 150 PSI maximum with an easy to reach manual drain valve
  • Designed for hassle-free hobby painting, inflation, stapling, nailing, bolting & tightening
  • 1 Year Limited Factory Warranty
  • Protects your investment; limited to defects in materials and workmanship
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

DC260000
specs product image PID-78084
Motor
Voltage
120 Volt AC
Phase
1-Phase
Amp Draw
14
Engine
HP
1.3
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
4
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Single-Stage
Oil Type
Oil Free
Tank
Tank Size
26 Gallons
Tank Included
Yes
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
No
Overview
Weight
105.84 Pounds
Consumer Warranty
1 Year
Product Length
18.31 Inches
Product Width
17.91 Inches
Product Height
49.6 Inches
Power Type
Electric
UPC
045564642099
