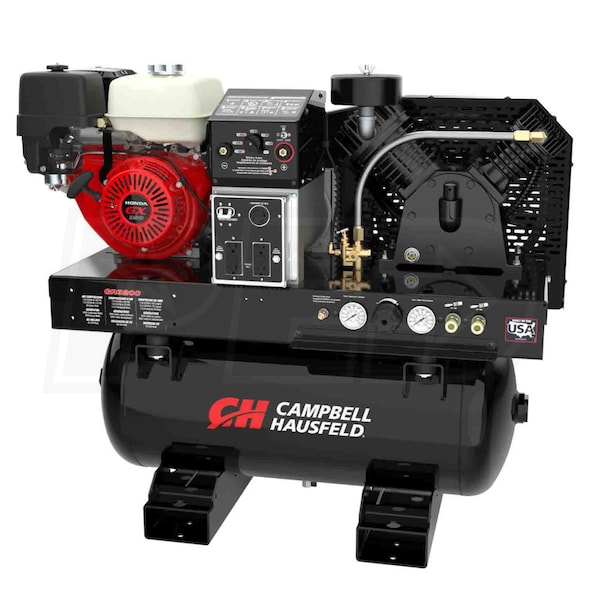

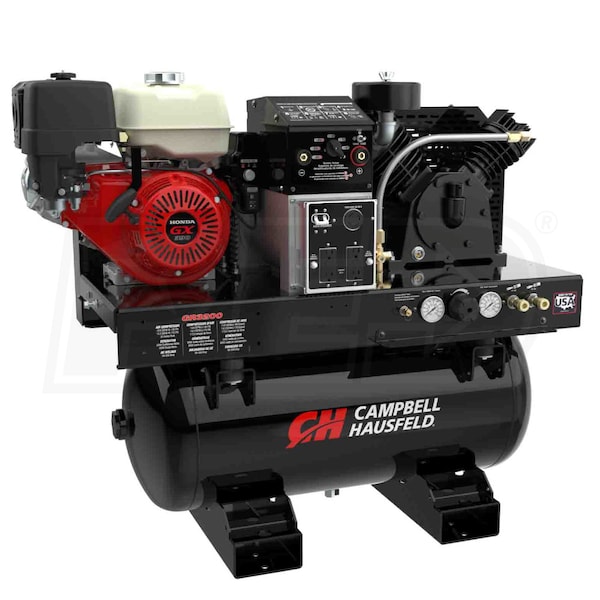

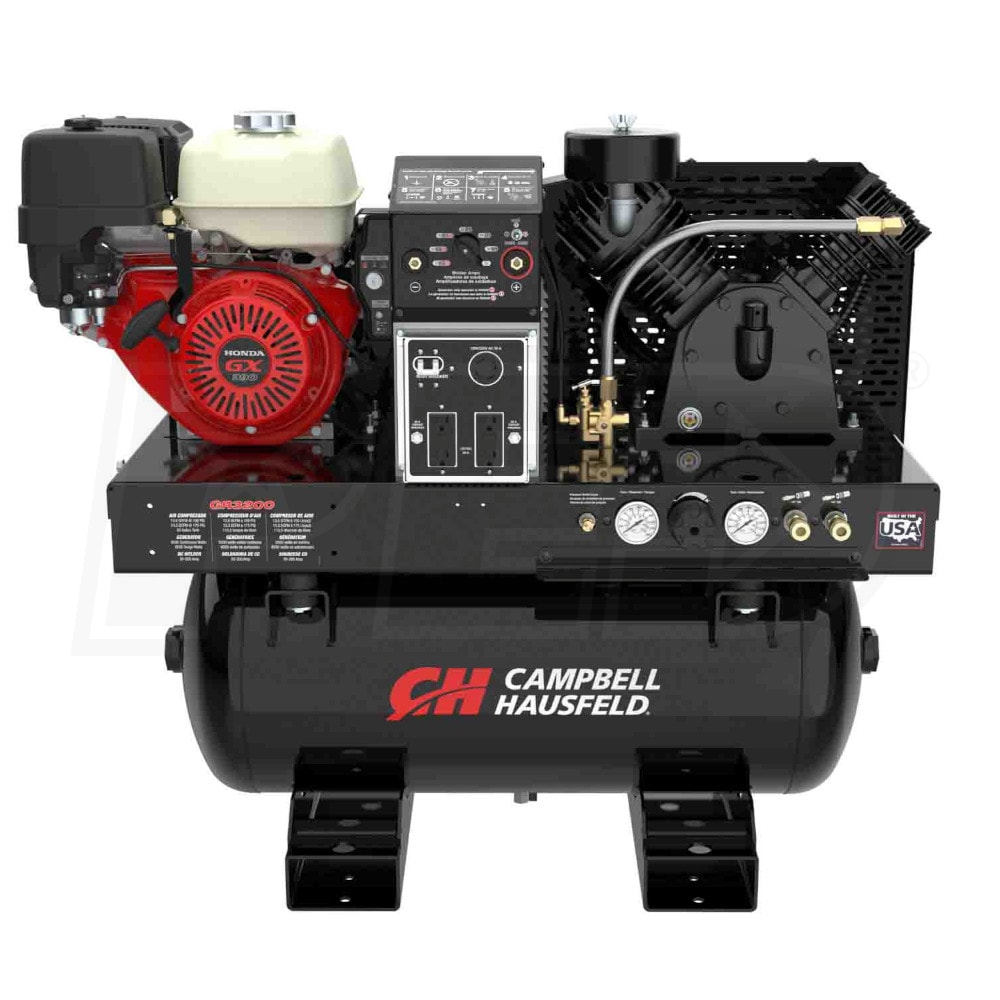

Campbell Hausfeld Commercial 13-HP 30-Gallon Two-Stage Truck Mount 3-In-1 Air Compressor / Generator / Welder w/ Honda Engine
Model:
GR3200
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Truck Mount
Engine Brand
Honda GX
CFM
13.6
Tank Size
30
- 3-In-1 Air Compressor / Welder / Generator
- Designed for service trucks and field service applications
- Ideal for job site, mobile services, & maintenance departments
- Industrial Two-Stage Cast Iron Air Compressor Pump
- Produces 13.6 CFM at 100 PSI, 13.3 CFM at 175 PSI
- Automotive style poly-v drive belt system for less maintenance
- 4 rings per piston for improved volumetric efficiencies and oil control
- One-piece crankshaft, oil sight glass & free floating stainless steel valves
- 5500-Watt Continuous Generator (6050 Surge Watt)
- Provides power for jobsite needs, offers safe interaction

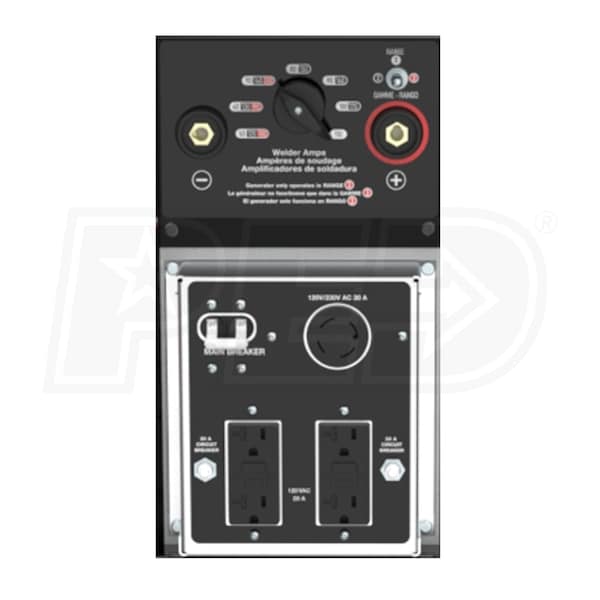

- Features (2) 120V 20 Amp duplex outlets & (1) 120/240V 30 Amp twistlock
- GFCI protected panel & GFCI circuit breaker lever can be switched off to stop power
- (Note: 12V power source for starting not included)
- 50-200 Amp DC Output Welder
- Rated output: 50-150A @ 100% duty cycle; 180A @ 60%, 200A @ 50%
- Allows you to weld DC stick electrodes 3/32" to 7/32" in size
- Capable of welding steel, stainless steel, cast iron alloys 1/16" minimum to 1/2" max thickness
- Honda GX 390 Commercial-Grade OHV Engine
- Automatic idle control, EPA & CARB approved
- GX Series offers premium features with easy starting
- Low oil shutdown, quieter performance, and lower fuel consumption
- Integrated Front Control Panel
- (2) 1/4" QC and (2) pressure gauges to run multiple tools at once
- Check tool & tank pressure at a glance with 2 front-mounted gauges
- 30 Gallon Air ASME Tank
- Channel foot design with forklift access
- Isolated platform design to absorb engine and pump vibration
- Limited Manufacturer Warranty
- 2-yr on pump & 1-yr on all other parts protect your investment
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
GR3200
General Information
Product Category
Air Compressor - Portable
Engine
HP
13
CC
389
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
Recoil Start
Battery Included
No
Engine Low Oil Shut-off
Yes
Consumer Engine Warranty
3
Commercial Engine Warranty
3
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
13.6
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Duty Cycle
100%
Tank
Tank Size
30 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
591 Pounds
CARB Compliant
Yes
Certification
UL, ASME, CE, CRN
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
49.8 Inches
Product Width
30 Inches
Product Height
48 Inches
Power Type
Gas
UPC
045564637637
