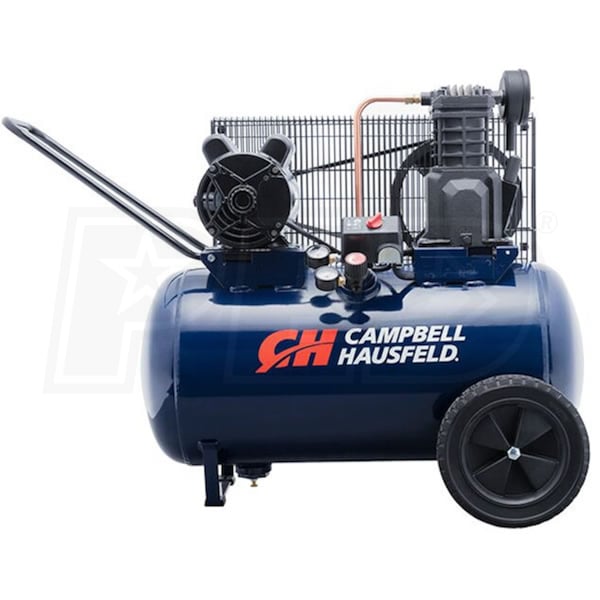

Campbell Hausfeld 2-HP 20-Gallon (Belt Drive) Dual-Voltage Cast-Iron Air Compressor (120/240V 1-Phase)
Model:
VT6290
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
4
Model: DH420000AV
$49.00
Factory-Direct
Model: HYP380502-O
$27.99
Factory-Direct
Model: M14025-6
$23.99
Factory-Direct
$84.97
Factory-Direct
Features
Grade
Consumer
Style
Portable - Horizontal
CFM
5.5
Tank Size
20
- Cast Iron Twin Cylinder Pump
- Oil-lubricated for extended performance
- Up to 5,000 hours of life (based on B-10 bearing rating)
- 120/240 Volt 2 HP Motor
- Versatile design suits your power setup
- Powerful enough for home garage or automotive shop
- Commercial V-Belt Drive
- Delivers smooth power transfer & long service life
- 5.5 CFM @ 90 PSI
- Powerful enough to run many air tools
- Tank rated to 135 PSI maximum
- Durable Metal Belt Guard
- Protects the belt and the operators
- Versatile Tool Selection
- Powers tools for the professional, or contractor
- Quieter Operation
- Compared to oil-lube aluminum pumps
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
VT6290
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
82
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
15 (120V) / 7.5 (240V)
Recommended Breaker
Consult Certified Electrician
Engine
HP
2
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.5
CFM Rated @
90 PSI
CFM @ 40 PSI
6.5
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
148 Pounds
Certification
UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
90 Days
Product Length
37 Inches
Product Width
21 Inches
Product Height
30.5 Inches
Power Type
Electric
UPC
045564104818
Reviews
(9)
Campbell Hausfeld VT6290 Reviews & Ratings
The heavy-duty Campbell Hausfeld 2-HP has a cast iron cylinder pump that provides up to 5,000 hours of life and delivers 5.5 CFM @ 90 PSI. Its dual voltage motor gives you a versatile design that'll suit your power set-up. It can power a variety of air tools for a serious DIY user, professional or contractor.
It's perfect for running all sorts of tools such as, brad nailing/stapling, drilling, finish nailing, hobby nailing, inflation, roof nailing, the list goes on. Built with large pneumatic tires for one rugged job site to another.
The larger, 20-gallon air tank is built to last and shipped right out of the manufacturing facility owned by Campbell Hausfeld. A brand you can trust and is backed up by a generous 3-year warranty.
It's perfect for running all sorts of tools such as, brad nailing/stapling, drilling, finish nailing, hobby nailing, inflation, roof nailing, the list goes on. Built with large pneumatic tires for one rugged job site to another.
The larger, 20-gallon air tank is built to last and shipped right out of the manufacturing facility owned by Campbell Hausfeld. A brand you can trust and is backed up by a generous 3-year warranty.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Verified Buyer
Took Forever Not Ship It Here—- Then When It Arrived - It Was Cr
By Marvin J.
Fort Peck, Montana
Purchased 01/06/2022 |
Review Posted 02/02/2022
Leaked when arrived and was a hassle to resolve the problem until I was able to talk right with the manufacturer. Do not talk to Air Compressors Direct —they have no idea what theory they are talking about.
Marvin J. Does Not Recommend This
Was this review helpful?
Expert Response
First and foremost thank you for your purchase. We appreciate you taking the time to provide us with your feedback and we can certainly understand your aggravation. Unfortunately, we do not have advanced technical support for these types of issues and the manufacturer is the best route to resolve these as fast as possible. Please be assured that I will send your comments to our Customer Service manager so they can coach the folks involved. It may help to know that we read every review, no matter how many stars it was given our customer's feedback is the best way to improve our service.
We appreciate your business and apologize for any inconvenience.
We appreciate your business and apologize for any inconvenience.
Dale V.
Power Equipment Expert
Rating Breakdown
4/5
1/5
3/5
3/5
Pros:
Easy To Use, Quiet
Cons:
Packaging
Verified Buyer
Great For Painting Wih Small Breaker On 110
By Hank C.
Mesilla Park, New Mexico
Purchased 03/07/2018 |
Review Posted 05/10/2018
Might need a bigger breaker or 220 set up to maintain 90 lbs.
Hank C. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
5/5
Pros:
Durable, Easy To Use, Price, Reliable
Verified Buyer
Just What I Expected From Campbell Hausfeld
By John B.
Huntington Station, New York
Purchased 12/21/2006 |
Review Posted 11/20/2017
Great product.
John B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Quiet, Exceeded Expectations, High Quality
Used To Be Great!
By James Noel
Miami, Florida
Review Posted 05/31/2017
CH used to be made in the USA, and it was great! Now It's the same old Chinese junk.
James Noel Does Not Recommend This
Was this review helpful?
Rating Breakdown
3/5
1/5
2/5
2/5
Pros:
Price
Cons:
Low Quality, Unreliable, Durability
Verified Buyer
Kinda Sorta Satisfied
By Gregory G.
Fort Collins, Colorado
Purchased 09/21/2015 |
Review Posted 09/30/2015
First the positive: the pump, motor, and tank quality are exactly what you would expect from a Campbell Hausfeld $570 purchase. The engineering is also good, as the belt shield also acts as a ducted air guide for the compressor and dissipates the heat efficiently.
The regulator and support were a disappointment. The regulator had a 35 lb. swing from load to no-load. I phoned the "contact us first" number on the product manual and was directed to a local "service center". My particular service center isn't directly affiliated with Campbell Hausfeld and I'm not sure that any of the people there had actually ever used an air compressor. They spent much time telling me that this was normal and when I informed them my older unit didn't do that they said the gauge was bad.
After learning it was warranty they said all they could do was box the unit up and return it to Campbell Hausfeld for repair. In the end I just plumbed in my older regulator from the original unit being replaced. If I had it do over again I would have thought harder about just purchasing and pump and motor and refurbishing my original thirty year old unit.
The regulator and support were a disappointment. The regulator had a 35 lb. swing from load to no-load. I phoned the "contact us first" number on the product manual and was directed to a local "service center". My particular service center isn't directly affiliated with Campbell Hausfeld and I'm not sure that any of the people there had actually ever used an air compressor. They spent much time telling me that this was normal and when I informed them my older unit didn't do that they said the gauge was bad.
After learning it was warranty they said all they could do was box the unit up and return it to Campbell Hausfeld for repair. In the end I just plumbed in my older regulator from the original unit being replaced. If I had it do over again I would have thought harder about just purchasing and pump and motor and refurbishing my original thirty year old unit.
Gregory G. Does Not Recommend This
Was this review helpful?
Rating Breakdown
3/5
2/5
3/5
2/5
They Do Not Last
By Rodney F.
Cayuga, Alabama
Review Posted 07/12/2013
This product lasted just over one year before it smoked, hardly used. Well guarantee is only for 1 yr. The one previous only lasted one year.
Rodney F. Does Not Recommend This
Was this review helpful?
Rating Breakdown
1/5
1/5
1/5
1/5
Pros:
Easy To Use
Cons:
Low Quality, Unreliable, Durability
20 years and counting
By Robert E.
Proctor, West Virginia
Review Posted 03/07/2013
I bought this same C/H air compressor 20 years ago from the Montgomery Ward store in Parkersburg WV, before every one had pc's or mac's to order from on line.
This has been one fantastic piece of equipment. I sat it in the rear my garage, hooked it up through a filter into PVC lines to the front of the gArage to an overhead air reel and down the wall to a hose coupler.
It does not get a lot of use in the winter, but I just leave it on all of the time in the summer it gets used almost daily by young people filling their four-wheeler tires.
And, I use it to run a few air tools. My son and his friends use it to work on their vehicles it still runs as good as when I bought it. All I have done to it is drain the water from the tank once in a while adjusted the belt and added a little oil to the compressor.
Still running well after 20 years.
This has been one fantastic piece of equipment. I sat it in the rear my garage, hooked it up through a filter into PVC lines to the front of the gArage to an overhead air reel and down the wall to a hose coupler.
It does not get a lot of use in the winter, but I just leave it on all of the time in the summer it gets used almost daily by young people filling their four-wheeler tires.
And, I use it to run a few air tools. My son and his friends use it to work on their vehicles it still runs as good as when I bought it. All I have done to it is drain the water from the tank once in a while adjusted the belt and added a little oil to the compressor.
Still running well after 20 years.
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Verified Buyer
Looking for quiet
By Dennis
Nevada
Purchased 11/26/2012 |
Review Posted 12/18/2012
My compressor arrived boxed up and on time. So far it is what I was looking for.
Quiet as far as air compressors go and no leaks.
Belt drive is the way to go. The cast iron runs cooler and last longer in the heat.
Quiet as far as air compressors go and no leaks.
Belt drive is the way to go. The cast iron runs cooler and last longer in the heat.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
