Campbell Hausfeld 2-HP 15-Gallon (Belt Drive) Dual-Voltage Cast-Iron Air Compressor (120/240V 1-Phase)

Model:

VX4011

Write A Review
$719.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 2-5 Business Days
Shipping to60601

Campbell Hausfeld 2-HP 15-Gallon (Belt Drive) Dual-Voltage Cast-Iron Air Compressor (120/240V 1-Phase)
Campbell Hausfeld 2-HP 15-Gallon (Belt Drive) Dual-Voltage Cast-Iron Air Compressor (120/240V 1-Phase)
Model: VX4011
$719.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Portable - Horizontal

CFM

5.5

Tank Size

15

  • Powerful Single-Stage Air Power
  • Oil-lubricated for extended performance & longevity
  • Powers a variety of air tools for the serious do-it-yourselfer, professional, or contractor
  • Dual Voltage
  • Operate on either 120V or 240V current
  • Let's you work in a wider variety of locations

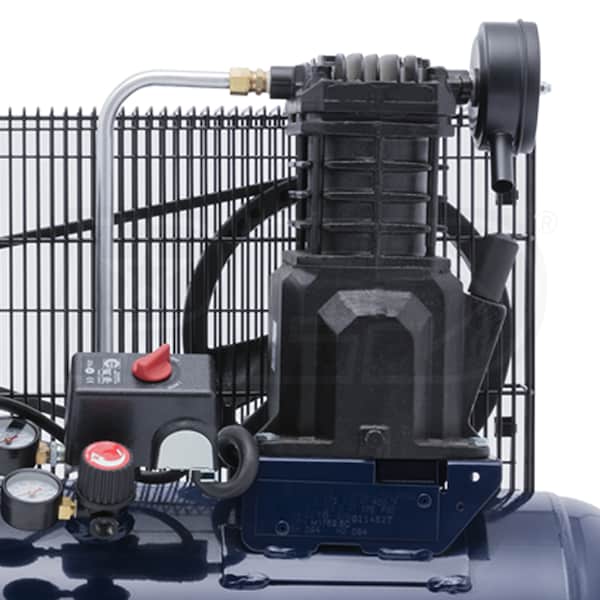

  • Cast Iron Twin-Cylinder Pump
  • Delivers 5.5 CFM @ 90 PSI; Max 135 PSI
  • Designed for paint spraying, inflation, stapling and nailing
  • Belt Drive w/ Fully Enclosed Metal Belt Guard
  • Dependable operation and low maintenance cost
  • Sturdy metal belt guard protects the belt & the user
  • 15-Gallon Air Tank
  • Convenient front oil drain for easy maintenance
  • ASME safety valve automatically releases air if tank pressure exceeds maximum
  • Quieter Operation
  • Produces a low sound of 82 dBA @ 3ft
  • Ideal for highly populated areas such as housing developments or busy worksites
  • 8" Semi-Pneumatic Wheels
  • Makes this unit easy to move from one job to the next

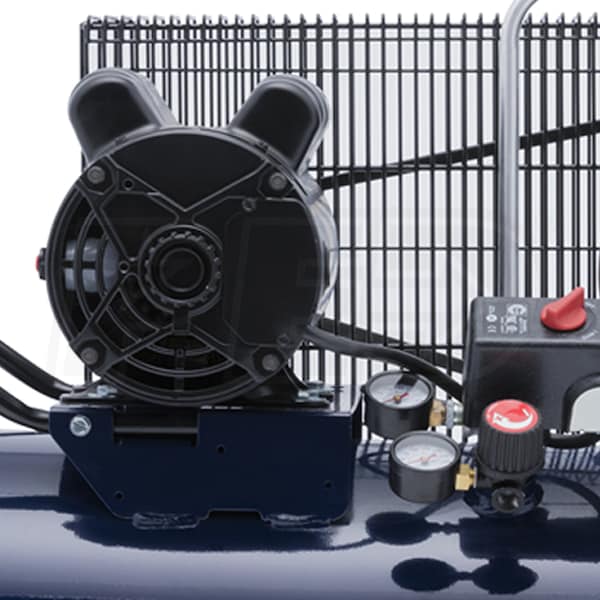

  • On-Board Tank & Hose Pressure Gauge
  • Easily keep track of tank pressure at a glance
  • Includes pressure regulator and pressure switch for added protection
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

VX4011
specs product image PID-106057
General Information
Product Category
Air Compressor - Portable
Engine
HP
2
Motor
Voltage
120 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
82
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
15 (120V) / 7.5 (240V)
Recommended Breaker
20 Amp Breaker
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.5
CFM Rated @
90 PSI
CFM @ 40 PSI
6.5
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
15 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
137 Pounds
Certification
CSA, UL
Consumer Warranty
2 Years
Product Length
32.5 Inches
Product Width
19.5 Inches
Product Height
29.5 Inches
Power Type
Electric
UPC
045564631604
