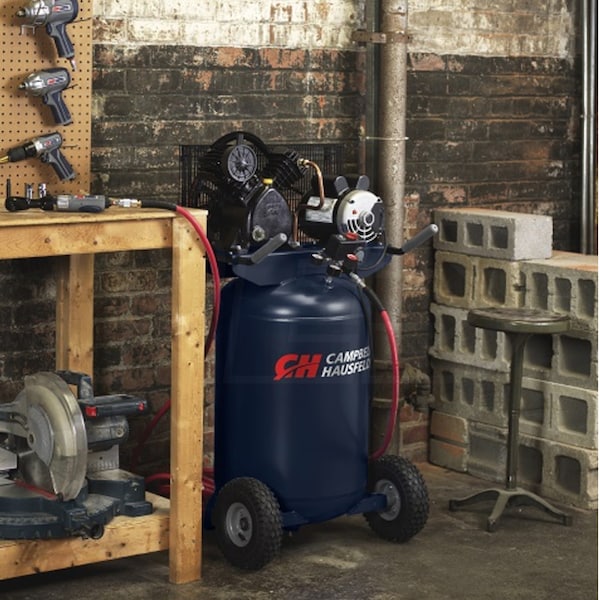

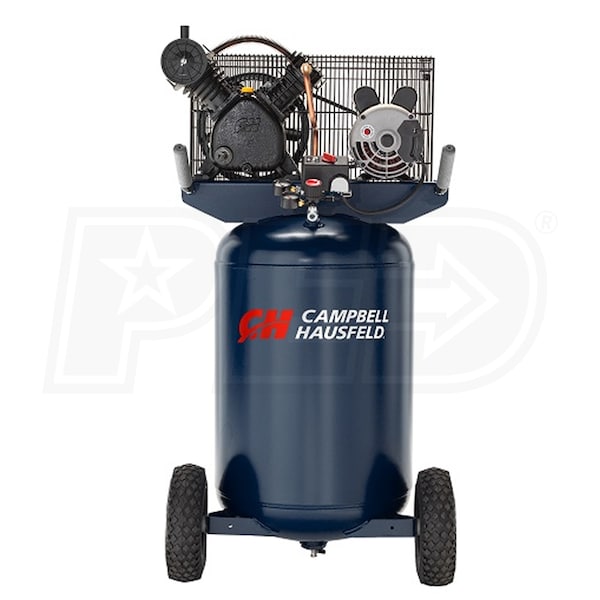

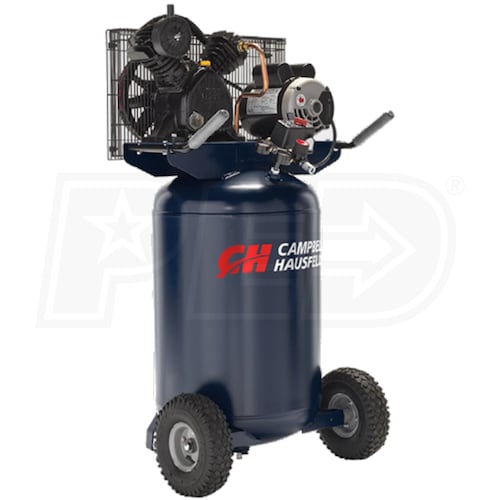

Campbell Hausfeld 2-HP 30-Gal Two-Stage (Belt Drive) Dual-Voltage Cast-Iron Air Compressor
Model:
XC302100
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Portable - Vertical
CFM
4.1
Tank Size
30
- Campbell Hausfeld XC302100 Two Stage Air Compressor
- Designed for the serious DIY'er, professional, or contractor
- Rugged, Cast Iron Two Stage Pump
- Oil-lubricated for extended performance
- Up to 5,000 hours based on B-10 bearing rating
- 2 HP, Dual-Voltage Motor (120/240V)
- Versatile design for a wide variety of applications
- 4.1 CFM @ 90 PSI
- Powerful enough to run many air tools
- Commercial V-Belt Drive
- Delivers smooth power transfer & long service life
- Totally enclosed metal belt guard for safety
- 30 Gallon Tank
- Vertical tank saves space, provides easy access
- Certified to 175 PSI maximum pressure for safe operation
- Pressure Switch For Automatic Stop/Start Operation
- Makes sure air pressure always meets demand
- Oil Level Sight Glass
- Easier to monitor and maintain
- Wide Base Mount
- Adds stability & increases belt life
- 10" Semi-Pneumatic Wheels
- Easy to move around the garage or workshop
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
XC302100
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
15 / 7.5
Engine
HP
2
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
4.1
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
178 Pounds
Consumer Warranty
3 Years
Product Length
29 Inches
Product Width
23 Inches
Product Height
52 Inches
Power Type
Electric
UPC
045564644161
Reviews
(12)
Campbell Hausfeld XC302100 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Melissa, the Air Compressor Expert
What kind of oil should I use on this compressor?
Jose M.
from Ohio
January 07, 2020
How-To Articles
How To Pick The Perfect Contractor Air Compressor
From the ground up, construction relies on compressed air. From framing a home ...
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How to Pick the Perfect Portable Single-Stage Compressor
We've all heard that Rome wasn't built in a day, but then again the R...
Manuals
XC302100
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery
Campbell Hausfeld 2-HP 30-Gal Two-Stage (Belt Drive) Dual-Voltage Cast-Iron Air Compressor

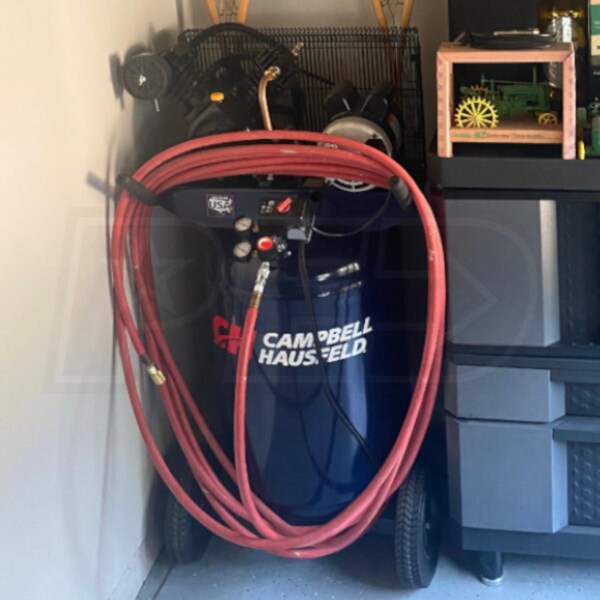

Customer Review Images
