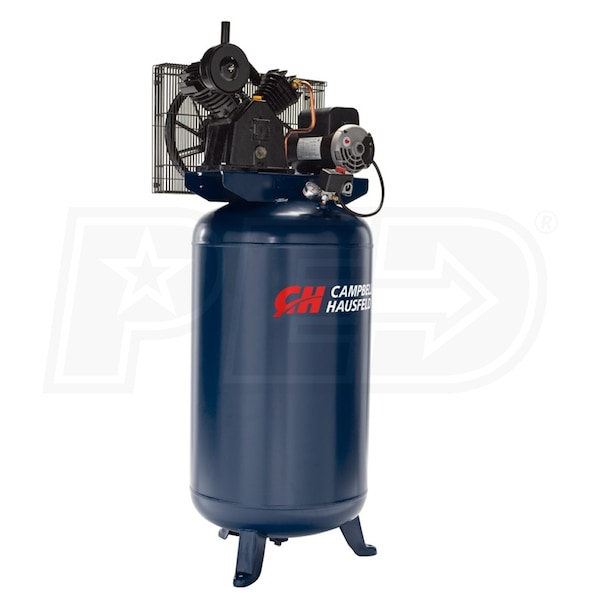

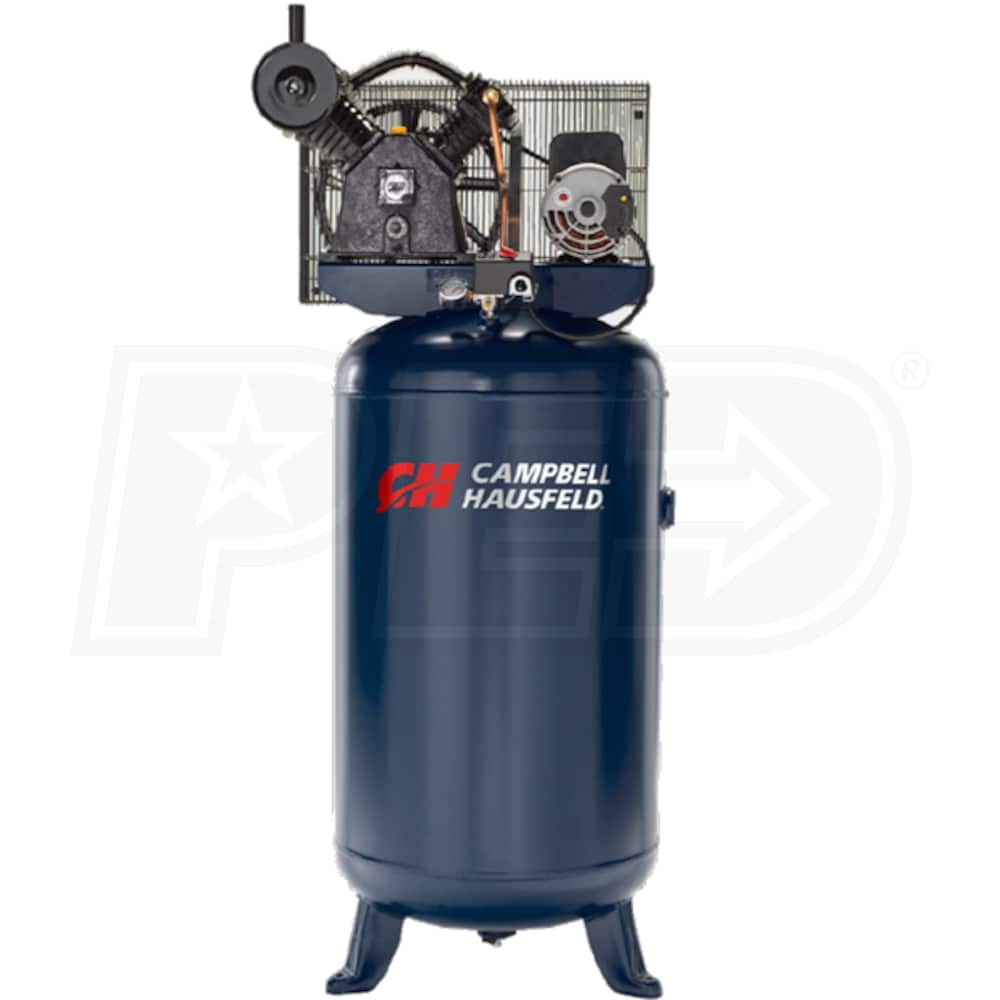

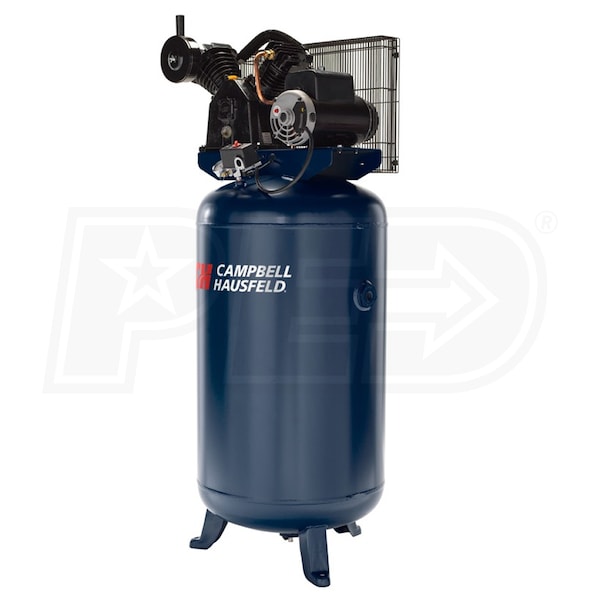

Campbell Hausfeld 5-HP 80-Gallon Two Stage Air Compressor (230V 1-Phase)
Model:
XC802100.COM
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Voltage
230 Volt AC
Phase
1-Phase
CFM
11.9
Tank Size
80
- Campbell Hausfeld XC802100 Two Stage Air Compressor
- Designed for the serious DIY'er, professional or contractor
- Tackle rotating tires, repairing engines, grinding, sanding, painting, nailing & more
- Rugged, Cast Iron Two Stage Pump
- Oil-lubricated for extended performance & reduced noise
- Up to 5,000 hours based on B-10 bearing rating
- 5 HP, 230V Induction Motor
- Delivers 11.9 CFM @ 90 PSI; 175 PSI Max

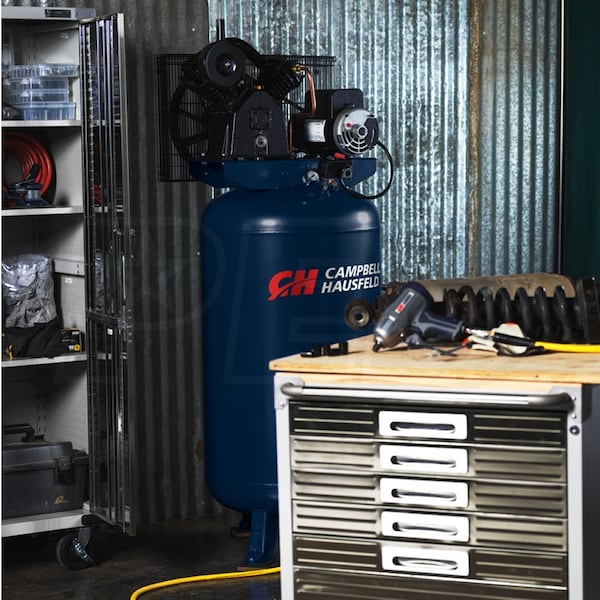

- Ideal for garage and workshop applications with a space-saving footprint
- Commercial V-Belt Drive
- Delivers smooth power transfer & long service life
- Totally enclosed metal belt guard for safety
- 80 Gallon ASME Tank
- Vertical tank saves space, provides easy access
- Certified to 175 PSI maximum pressure for safe operation
- Pressure Switch For Automatic Stop/Start Operation
- Makes sure air pressure always meets demand
- Oil Level Sight Glass
- Easier to monitor and maintain
- Wide Base Mount
- Adds stability & increases belt life
- 3-Year Limited Warranty
- Compressor Pump Ships Dry, Oil Is Required
- ***Built in the USA***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
XC802100.COM
General Information
Product Category
Air Compressor - Stationary
Engine
HP
5
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
22
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
11.9
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
410 Pounds
Certification
UL, CSA ASME
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
31 Inches
Product Width
42 Inches
Product Height
80 Inches
Power Type
Electric
UPC
045564643140
Additional Model Numbers
XC802100, XC802100.COM
