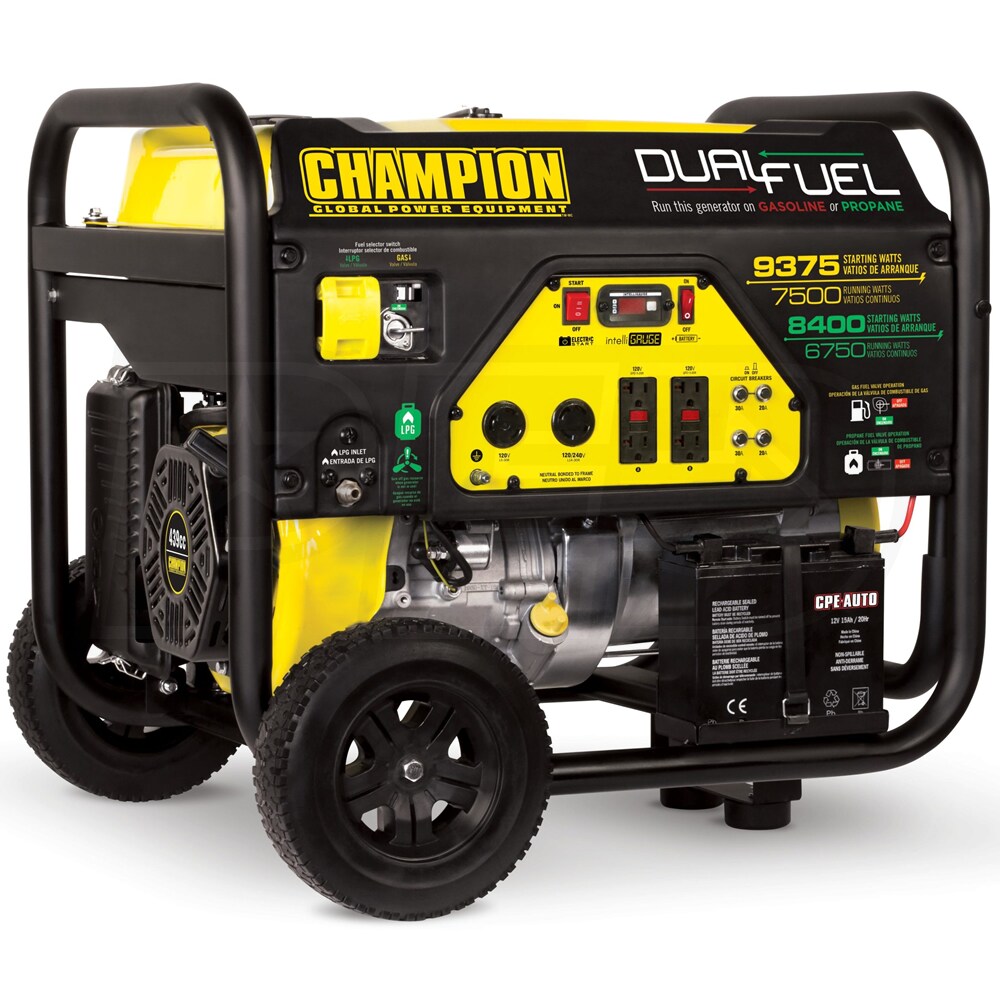

Champion 100165 - 7500 Watt Electric Start Dual Fuel Portable Generator (CARB)
Model:
100165
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Portable
Run Watts
7,500 Rated Watts
Surge Watts
9,375
Starting Watts
Fuel
Gasoline/LP
Engine
Champion
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- ***New For 2015 (Replaces 71531) - NEMA 5-20R (GFCI) Outlets***
- Champion 7500W Dual Fuel Electric Start Generator
- Designed to ensure ease of use for either type of fuel
- Push-Button Electric Start (Battery Included)
- Plus an easy-pull recoil starter, so you'll always be ready for an outage
- 439cc Champion OHV 4-Stroke Engine w/ Low-Oil Protection
- Cast iron sleeve for long life and easy maintenance
- Provides added protection to extend the life of the generator
- Intelligauge Digital Display
- Easily monitor your voltage, frequency & operating hours
- Circuit Breaker Protection
- Helps prevent overload to generator
- Large 5.9-Gallon Extended Run Fuel Tank
- Provides up to 8 hours of runtime at 50% load
- 20 or 30-lb Tank Compatible (Not Included)
- Provides up to 7 hours of run time @ 1/2 load (20 lb.)
- 30-Amp 120/240V (14-30R) & 120V (L5-30) Twistlock Outlets***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord
- Mobility Kit w/ Integrated U-Shape Handle & 10" Never-Flat Wheels
- Makes transporting and positioning as simple as possible
- Includes 1st Bottle of Engine Oil
- CARB Compliant - For Use In All 50 States
- 3-Year Limited Warranty
- ***Note - Allows You To Get Maximum Power From Generator
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
100165
Overview
Assembly Required
Yes
Weight
215 Pounds
CARB Compliant
Yes
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
27.7 Inches
Product Width
27.1 Inches
Product Height
26 Inches
UPC
896682000939
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
9375 Watts
Fuel Type
Gasoline/LP
Rated Amps
31 Amps
Portability Kit
Never Flat Wheels
Tank Size
5.7 Gallons
Run Time @ 50% Load
9 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start w/ Recoil
CC
439 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
