Features
- 224cc Champion 4-Cycle OHV Engine
- Cast iron cylinder sleeve for durability
- Low oil shutoff protects the engine

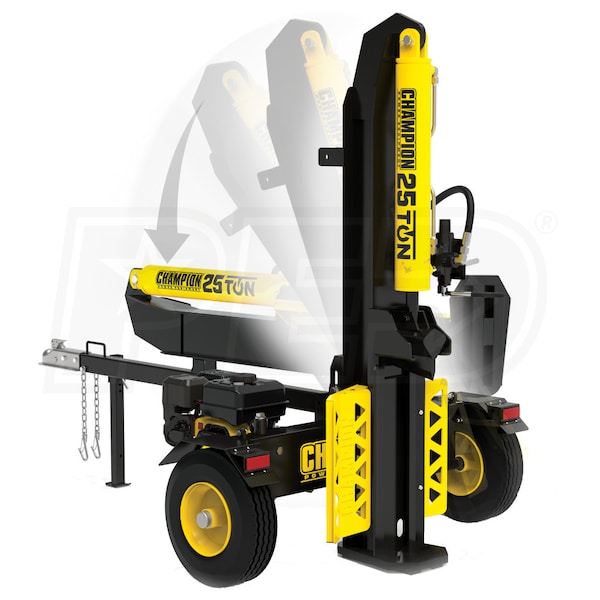

- Horizontal & Vertical Splitting
- Split smaller logs in the horizontal position

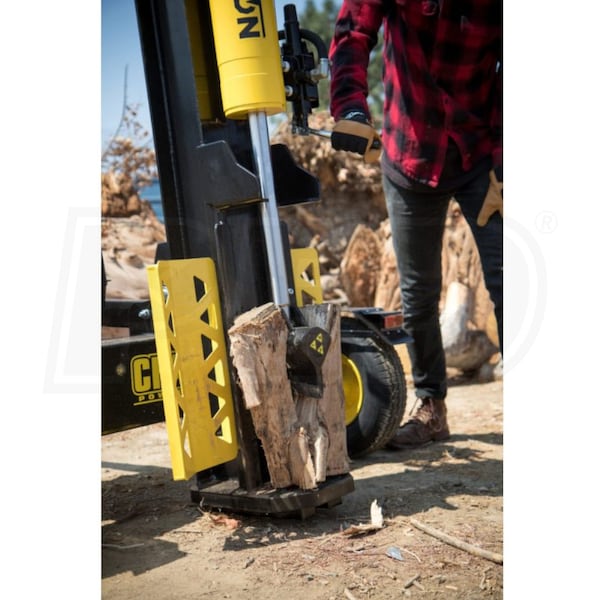

- Switch to vertical & roll large logs into place - save your back
- Full steel beam design for maximum cylinder support
- Handles logs up to 24" long
- 2 Stage, 11 GPM Hydraulic Pump
- Spin-on, external hydraulic oil filter
- 3900 PSI maximum from 3.9" × 22.6 cylinder
- 11 second cycle time (327 cycles per hour)
- Integrated Log Cradle
- Keeps split logs on the beam; less bending over to stack
- Log Strippers
- Assist in removing log from wedge on the return stroke
- 2-Inch Ball Hitch
- DOT-approved wheels for up to 45 mph
- 16-inch tires for smooth towing to your wood lot
- Assembly Required
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
100326
General Information
Product Category
Log Splitter
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
224 CCs
Fuel Tank Size
0.9 Gallons
Idle Control
No
Low Oil Shutdown
Yes
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
No
Hydraulic Reservoir Size
4 Gallons
Max Pump PSI
3900 PSI
Cylinder Diameter
3.9 Inches
Cylinder Length
22.6 Inches
Cycle Time
11 Seconds
Tonnage
25 Tons
Overview
Product Category
Log Splitter
Assembly Required
Yes
Weight
434.3 Pounds
CARB Compliant
Yes
Certification
EPA Certified
Consumer Warranty
2 Years
Product Length
89.5 Inches
Product Width
51.3 Inches
Product Height
39.3 Inches
Power Type
Gas
UPC
850878006266
Wedge
Wedge Material
Steel
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
24 Inches
Towing
Towable
Yes
D.O.T. Lights
Yes
Fenders
Yes
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
45 MPH
Accessories
Jack Stands
Included
Log Cradles
Included
Wheels
Rear Tire Size
16 Inch
Tire Type
Pneumatic Wheels
Wood Type | Hardness Rating | 6" Seasoned | 6" Green | 12" Seasoned | 12" Green | 24" Seasoned | 24" Green |
---|---|---|---|---|---|---|---|
Alder | 590 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Ash | 1320 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Aspen | 420 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Basswood | 410 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Beech | 1300 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Birch | 1470 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Boxelder | 720 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
Buckeye | 350 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Catalpa | 550 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Cedar | 900 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
Cherry | 950 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
Cottonwood | 430 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Dogwood | 2150 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
Elm | 1540 Lbs. | 10+ Tons | 13+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Fir | 710 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
Hickory | 1820 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
Locust | 1700 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
Magnolia | 1020 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Maple | 1450 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Oak | 1620 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
Pine | 860 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
Poplar | 540 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Spruce | 510 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Sweet Gum | 850 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
Walnut | 1010 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
