Champion 100402 - 1600 Watt Dual Fuel Inverter Generator w/ Parallel Capability (CARB)

Model:

100402

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Champion 100402 - 1600 Watt Dual Fuel Inverter Generator w/ Parallel Capability (CARB)
Champion 100402 - 1600 Watt Dual Fuel Inverter Generator w/ Parallel Capability (CARB)
Model: 100402
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Recreational

Style

Portable

Run Watts

1,600 Rated Watts

Surge Watts

2,000
Starting Watts

Fuel

Gasoline/LP

Engine

Champion

  • Champion Inverter Technology - Clean Power (<3% THD)
  • Clean, quiet power for campsites, RV's, cabins & tailgating
  • Dual Fuel Operation
  • 1600 Running watts & up to 2000 starting watts on gasoline
  • 1440 Running watts & up to 1800 starting watts on propane
  • Champion 80cc OHV Engine w/ Low Oil Sensor
  • Provides added protection to extend engine life
  • EZ Start Dial w/Cold Start Technology
  • Makes starting your generator an easy task
  • Allows for easier starting in cold weather
  • Economy Mode Switch - 11 Hours of Run Time @ 1/4 Load
  • Adjusts engine speed to the optimum level depending on load

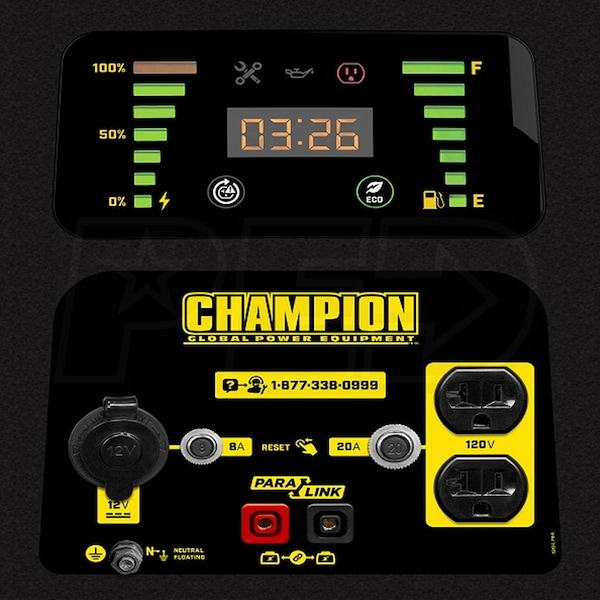

  • Digital LED Display
  • Easily see how much power you're using
  • Let's you know how much fuel life remains (Gasoline)
  • Quiet - Only 53 dBA at 23'
  • Fully enclosed durable housing reduces sound output
  • Parallel Operation Capability
  • Increase available wattage when linking 2 Champion 100306 gens
  • Requires ParaLINK parallel kit (Sold Separately)
  • Fuel Fill Assist LED
  • Push-Button design, Illuminates gasoline fill area
  • Stackable Design
  • Great for storage, traveling and when paralleling generators
  • Lightweight Design w/ Built-In Carrying Handle
  • Makes this generator easy to move where you need it most
  • Added Features
  • 12V DC Outlet & USDA-Approved Spark Arrestor/Muffler
  • Also Includes:
  • 2.3' LPG Hose w/ Regulator, USB Adapter & Oil Funnel
  • Please Note* Engine Oil NOT Included
  • 3-Year Limited Warranty & FREE Lifetime Technical Support
  • EPA Certified & CARB Compliant
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
10-Amp DC - Cigarette Adapter
100402
specs product image PID-99490
Overview
Weight
47.6 Pounds
Certification
EPA
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
20.5 Inches
Product Width
12.8 Inches
Product Height
16.9 Inches
UPC
817198021997
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Auto Voltage Regulation
Yes
Rated Watts
1600 Watts
Surge Watts
2000 Watts
Fuel Type
Gasoline/LP
LP Power Capacity
1800 Watts
Rated Amps
13.3 Amps
Tank Size
1.1 Gallons
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
53 dbA
Idle Control
Yes
Grade Type
Recreational
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
80 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
10-Amp DC - Cigarette Adapter
1
NEMA 5-20R - Wall-Type
1
