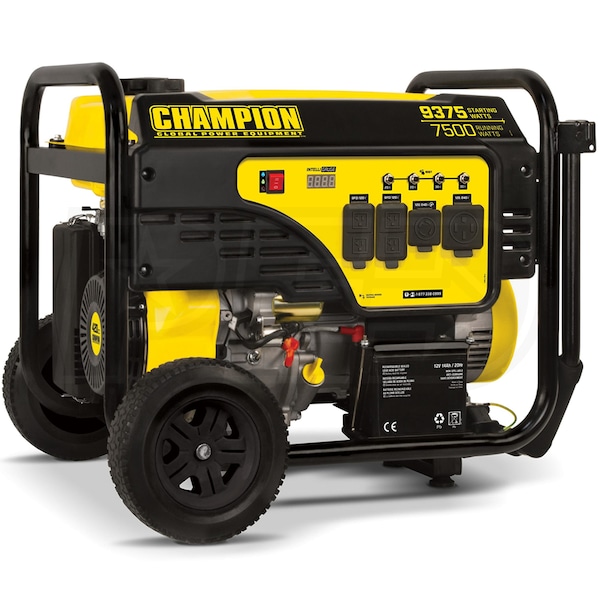

Champion 100538 - 7500 Watt Electric Start Portable Generator (CARB)

Model:

100538

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Champion 100538 - 7500 Watt Electric Start Portable Generator (CARB)
Champion 100538 - 7500 Watt Electric Start Portable Generator (CARB)
Model: 100538
Was $929.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

7,500 Rated Watts

Surge Watts

9,375
Starting Watts

Fuel

Gasoline

Engine

Champion

  • Champion 7500 Watt Electric Start Generator
  • Provides dependable power for home, recreation or emergencies
  • Push-Button Electric Start w/ Recoil (Battery Included)
  • Makes starting easy with or without a charged battery
  • 420cc Champion OHV 4-Stroke Engine w/ Low-Oil Shutdown
  • Cast iron sleeve for long life and easy maintenance
  • Provides added protection to extend the life of the generator
  • 5.7-Gallon Extended Run Fuel Tank
  • Provides up to 8 hours of runtime at 50% load
  • Intelligauge Digital Display
  • Easily monitor your voltage, frequency & operating hours
  • Volt Guard Surge Protector
  • Prevents damaging voltage spikes that can damage electronics
  • 30A 120/240V (L14-30) & 50A 120/240V (L14-50) Outlets***
  • Allows for connection to a manual transfer switch (MTS)
  • Allows for connection to a convenience cord
  • (2) 120V GFCI Duplex Outlets & Circuit Breaker Protection
  • Helps prevent overload to generator
  • Cold Start Technology
  • Allows for easier starting at lower temperatures
  • Full Tubular Wrap-Around Frame
  • Heavy-duty steel frame protects the generator on all sides
  • Mobility Kit w/ 9.5" Never-Flat Wheels
  • Makes transporting and positioning as simple as possible
  • Engine Oil NOT Included
  • EPA & CARB Compliant - For Use In All 50 States
  • 3-Year Limited Warranty
  • ***Note - Allows You To Get Maximum Power From Generator
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
NEMA 14-50R
100538
specs product image PID-82123
Overview
Assembly Required
Yes
Weight
199.1 Pounds
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
29.9 Inches
Product Width
27.2 Inches
Product Height
25.2 Inches
UPC
817198021584
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
9375 Watts
Fuel Type
Gasoline
Rated Amps
31 Amps
Portability Kit
Never Flat Wheels
Tank Size
5.7 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start w/ Recoil
CC
420 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-50R
1
