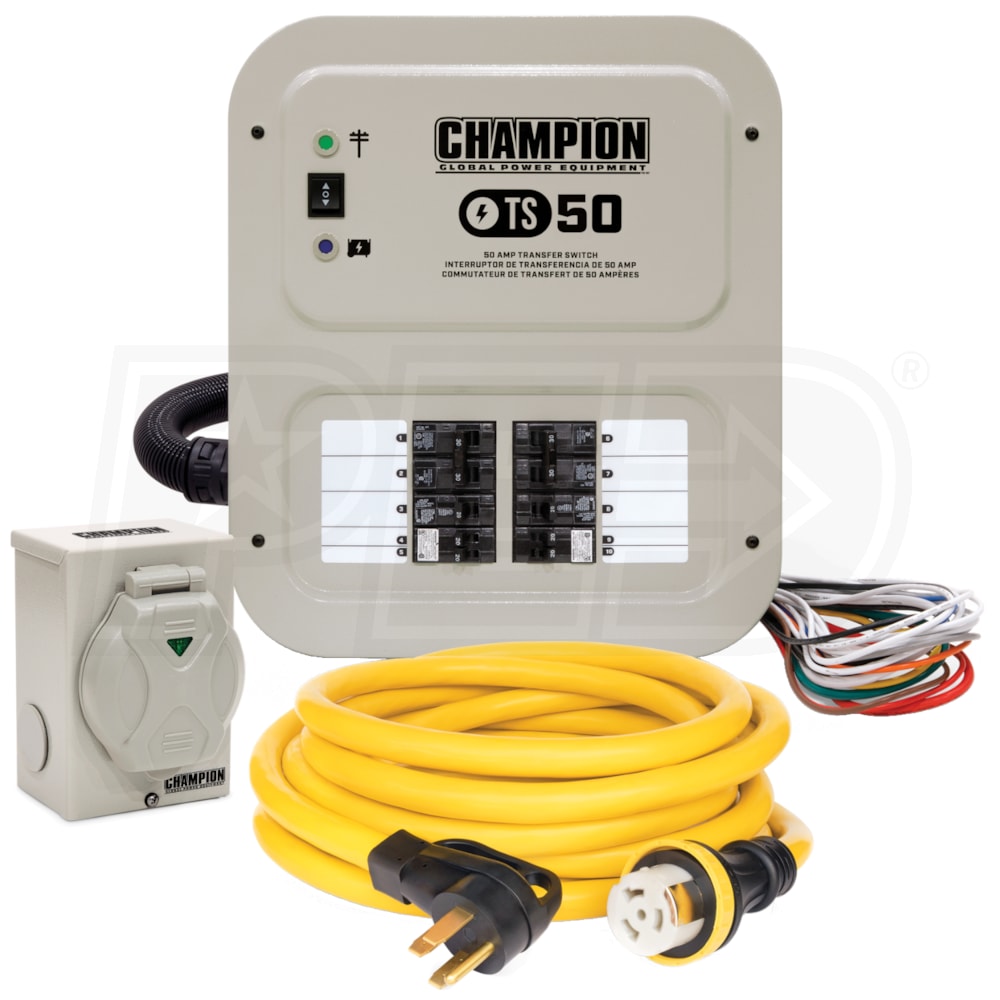

Champion 50-Amp Indoor Manual Transfer System (10-Circuit) w/ 30' Cord & PIB

Model:

201193

Write A Review
$699.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 1-2 Business Days
Shipping to60601

Champion 50-Amp Indoor Manual Transfer System (10-Circuit) w/ 30' Cord & PIB
Champion 50-Amp Indoor Manual Transfer System (10-Circuit) w/ 30' Cord & PIB
Model: 201193
$699.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Champion 50-Amp Manual Transfer Switch System (120/240V)
  • No need for extension cords during an emergency

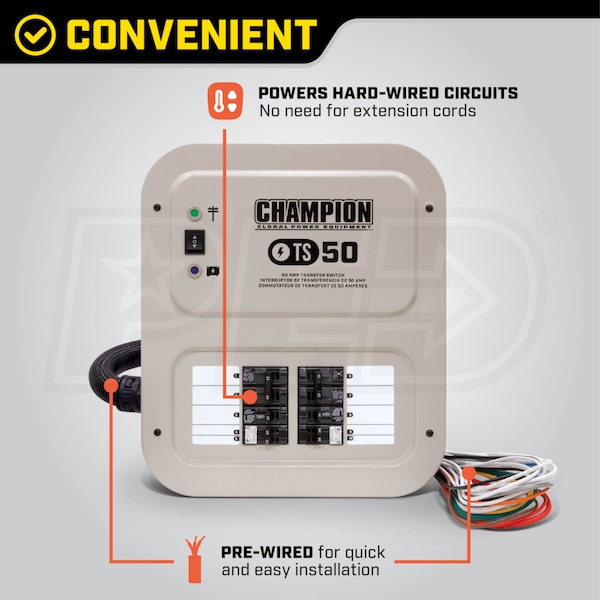

  • Pre-Wired 50-Amp Indoor Manual Transfer Switch
  • Allows for faster installation

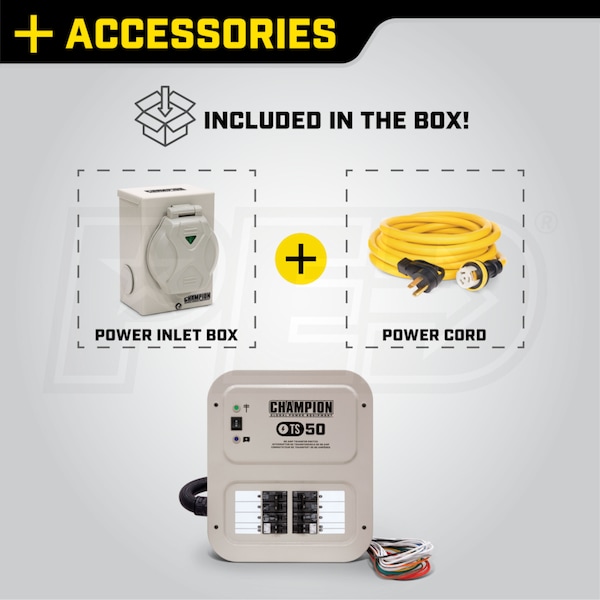

  • Also Includes

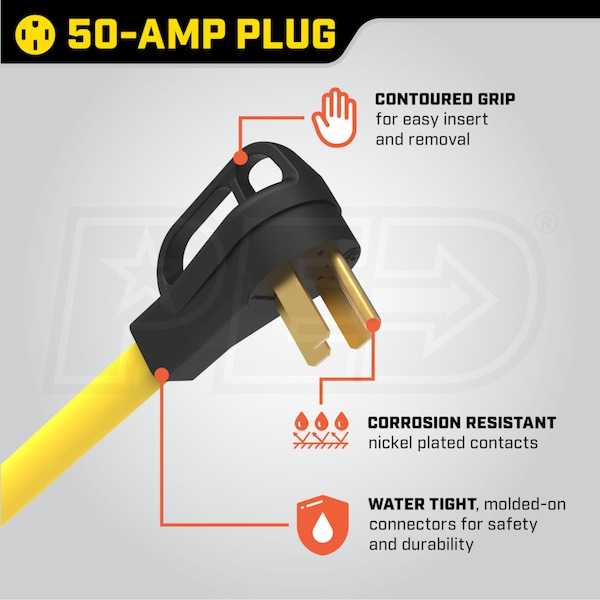

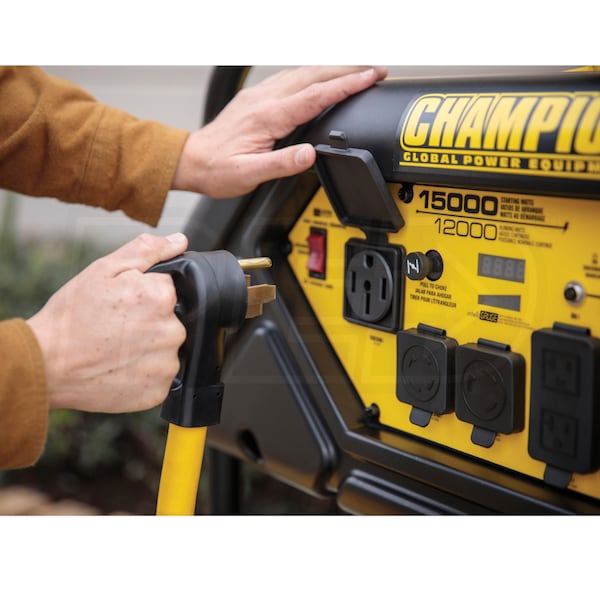

  • (1) 30' 50-Amp (Straight-blade / Twistlock) Power Cord

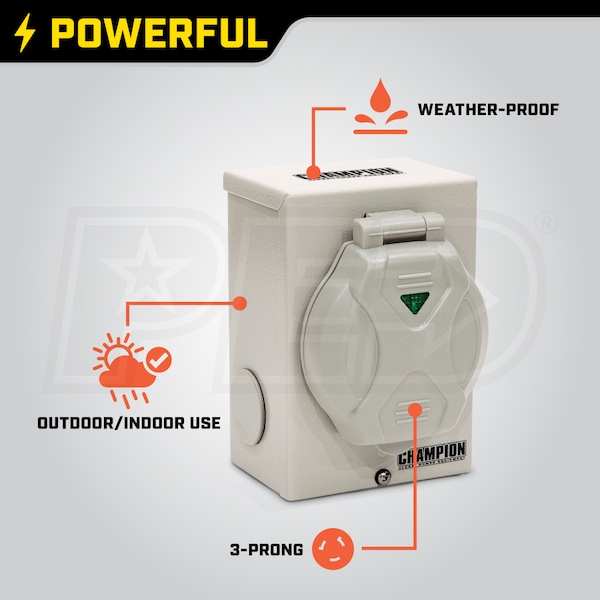

  • (1) 50-Amp (Twistlock) Power Inlet Box (must be hardwired)
  • Safely Power Hard-Wired Circuits
  • The electricity you need to power your furnace, sump pumps, etc.

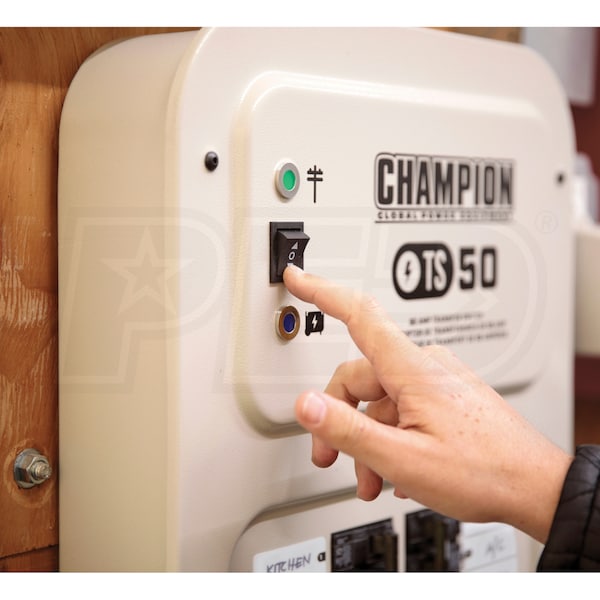

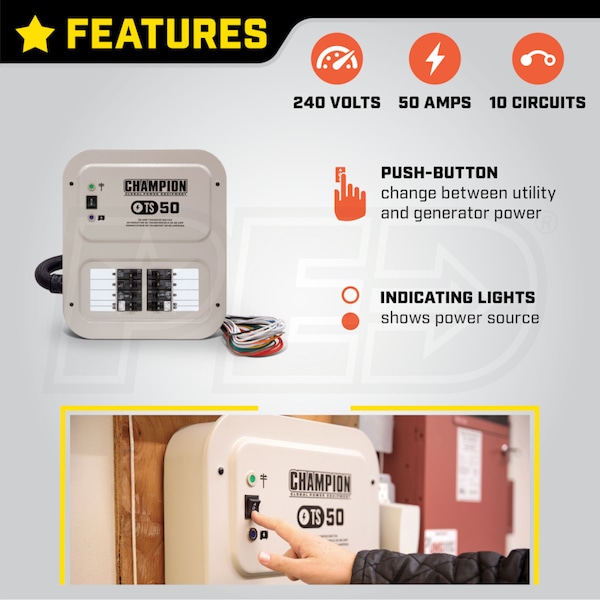

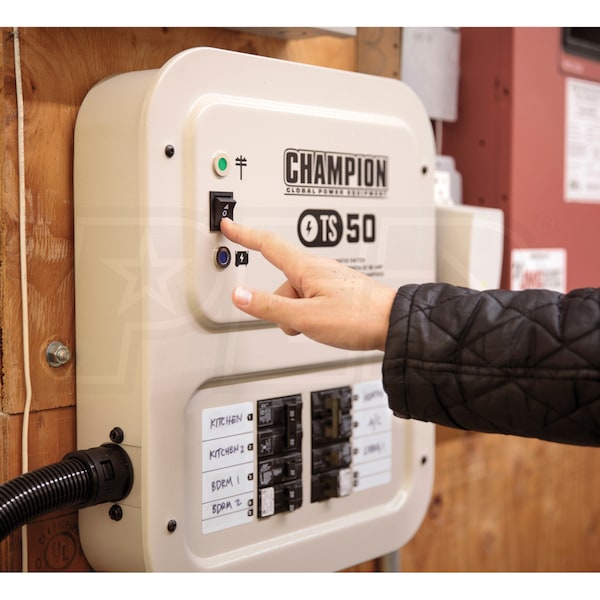

  • Push-button change between utility and generator power
  • Includes 10 Total Circuits
  • (2) 30-Amp 2-Pole, (2) 20-Amp 1-Pole, & (2) 20-Amp 1-Pole Tandem
  • LED Power Source Indicator Lights
  • Makes it easy to identify power source
  • *Req's 50-Amp 2-Pole Breaker in Main Load Center (Not Included)
  • Note - Should Be Installed By Licensed Electrician
  • 5-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 14-50R
201193
specs product image PID-148103
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
48.1 Pounds
Made in USA
Yes
Consumer Warranty
5 Years

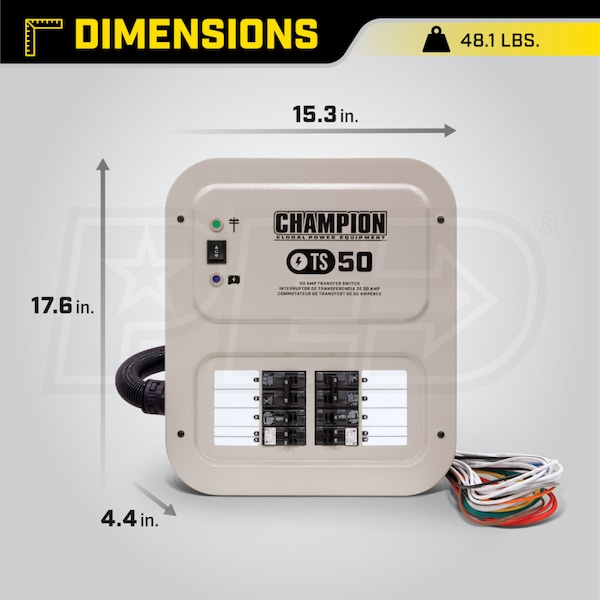

Product Length
17.6 Inches
Product Width
15.3 Inches
Product Height
4.4 Inches
UPC
817198026022
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
20A 120V
4
30A 240V
2
Circuit Breaker Protection
Each Circuit
Plugs
NEMA 14-50R
1
CS6364/5 - 50-Amp Twistlock
1
Cord
Cord Length
30 feet
Connection Type
Male
Prongs
Straight-Blade
