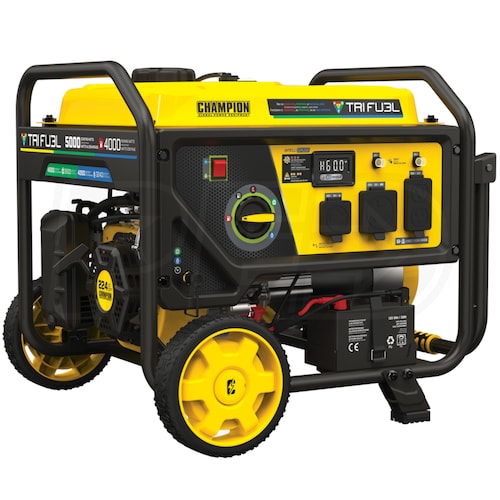

Champion 201223 - 4000 Watt Electric Start Tri-Fuel Portable Generator w/ CO Shield® (49-State)
Model:
201223
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Portable
Run Watts
4,000 Rated Watts
Surge Watts
5,000
Starting Watts
Fuel
LP/Natural Gas/Gasoline
Engine
Champion
- Champion Tri-Fuel Electric Start Portable Generator
- Ideal for home backup and big jobs around the yard
- Versatile, Tri-Fuel Operation (Propane Tank Not Provided)
- 5000 W (Starting)/ 4000 W (Rated) when using Gasoline
- 4500W (Starting)/ 3600 W (Rated) when using Propane
- 4050 W (Starting)/ 3240 W (Rated) when using Natural Gas
- CO Shield® Technology^*^
- Alerts and shut off the generator automatically
- Push-Button Electric Start (Battery Included)
- Plus an easy-pull recoil starter, so you'll always be ready for an outage
- 224cc Champion OHV 4-Stroke Engine w/ Low-Oil Shutoff Sensor
- Provides added protection to extend the life of the generator
- Cast iron sleeve for long life and easy maintenance
- 30-Amp (TT-30R RV) & (L5-30R) Outlets***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord or RV
- (1) 120V Duplex Outlet & Circuit Breaker Protection
- Keeps your appliances protected while preventing overload to generator
- Large 5-Gallon Fuel Tank
- Provides up to 14-hours of run time @ 25% load

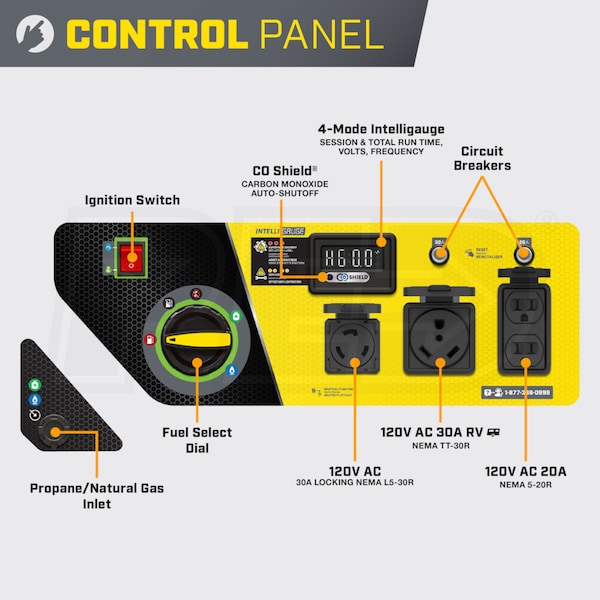

- Intelligauge Digital Display
- Easily monitor your voltage, frequency & operating hours
- Never Flat Tires & Fold-Down Locking Handle
- Makes this generator easy to move on the most bumpy terrain

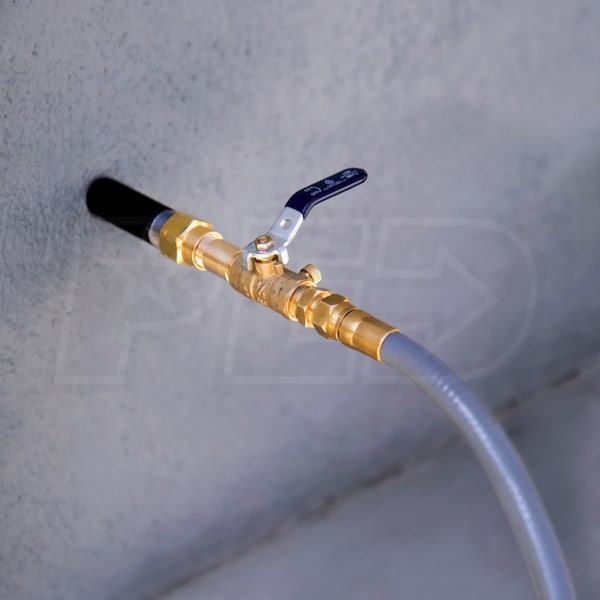

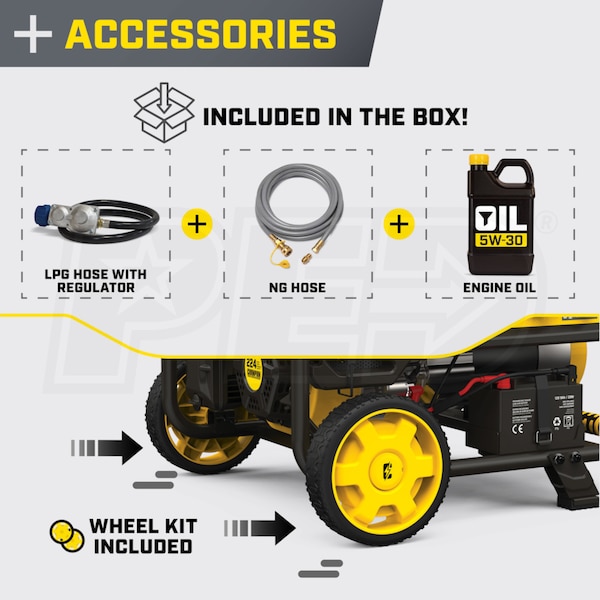

- Also Includes 25' Natural Gas Hose, 6.5' Propane Hose & Engine Oil
- 3-Year Limited Warranty - EPA Compliant
- Non-CARB Compliant - Not For Sale In California
- ***Note - Allows You To Get Maximum Power From Generator
- ^*^ Meets ANSI/PGMA G300-2018 Requirements
Specifications
Plug Types
201223
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
128 Pounds
CARB Compliant
No
Certification
EPA
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
29.1 Inches
Product Width
20.5 Inches
Product Height
20.9 Inches
UPC
817198026312
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
4000 Watts
Surge Watts
5000 Watts
Fuel Type
LP/Natural Gas/Gasoline
NG Power Capacity
3240 Watts
LP Power Capacity
3600 Watts
Rated Amps
33.3 Amps
Portability Kit
Never Flat Wheels
Tank Size
8.5 Gallons
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
CO Sensing
Yes
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start w/ Recoil
CC
224 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L5-30R
1
RV Ready 30-Amp
1
