Features
Inlet Size
3 Inch
Style
Semi-Trash
GPM
343 Gallons
Engine
Champion
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- 3" Semi-Trash Pump
- Able to pass solids up to 3/4" diameter
- 196cc OHV Champion Engine w/ Recoil Start
- Provides plenty of power to get the water moving
- Low-Oil Shutdown
- Provides added protection to extend the life of the pump
- Aluminum Pump Housing w/ Cast Iron Volute & Impeller
- Minimizes overall weight without compromising durability
- Self-Priming Design
- Requires initial priming to operate
- Silicon Carbide Shaft Seals
- Abrasion-resistant designed for extended wear
- Full Tubular Wrap-Around Frame
- Heavy-duty steel frame protects the pump/motor on all sides
- 1-Year Parts & Labor Warranty
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
66525
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
343 Gallons
Inlet Diameter
3 Inch
Outlet Diameter
3 Inch
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Suction Head
26 Feet
Total Head Lift
85 Feet
Submersible
No
Engine
Engine Brand
Champion
Starting System
Recoil Start
Low Oil Shutdown
Yes
Horsepower
6.5 HP
CC
196 cc
Fuel Tank Size
0.9 Gallons
Consumer Engine Warranty
1 Year
Overview
Product Category
Water Pump
Weight
85 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Length
23 Inches
Product Width
19 Inches
Product Height
20 Inches
UPC
896682000106
Accessories
Strainer
No
Reviews
(4)
Champion 66525 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Jim, the Water Pump Expert
How-To Articles
How to Pick the Perfect Gas Water Pump
If you need to know how to move a lot of water FAST,you're reading the right pa...
What to Do Before, During, and After a Flood
Flooding is scary. It can happen anytime, anywhere, and causes damage without d...
How to Pick the Perfect Dewatering Pump
Basements, yards, and construction sites can all flood, but with the help ...
Manuals
66525
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

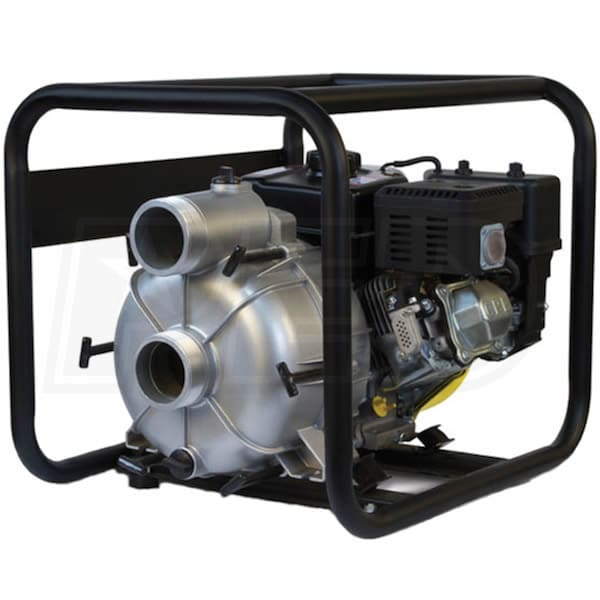

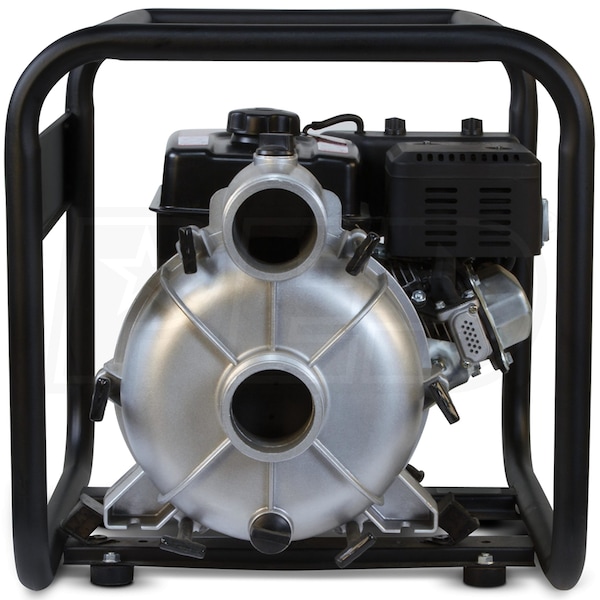

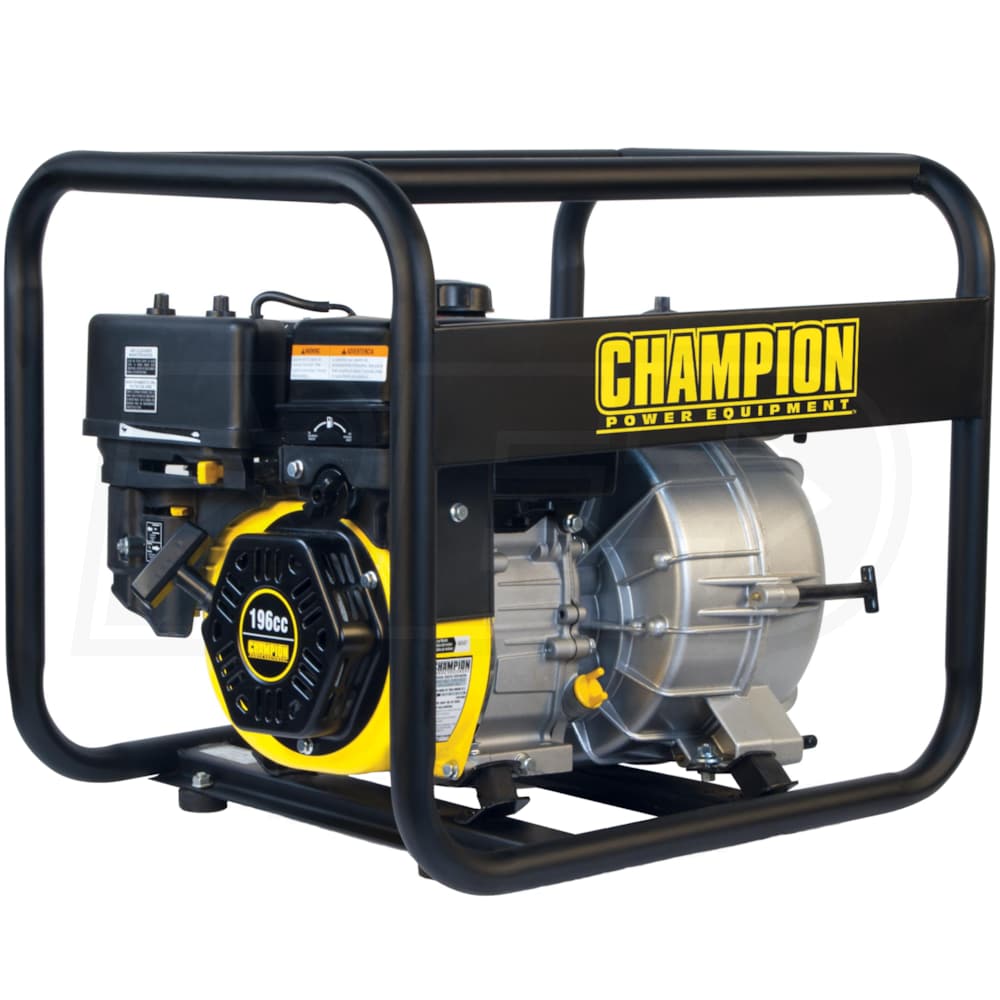

Champion 66525 - 343 GPM (3") Semi-Trash Water Pump
