Features
- 6.5HP/196cc Champion OHV Engine
- 4-cycle, single cylinder engine design
- Cast iron cylinder sleeve for durabilty
- Low oil shutoff protects the engine
- Horizontal & Vertical Splitting
- Split smaller logs in the horizontal position

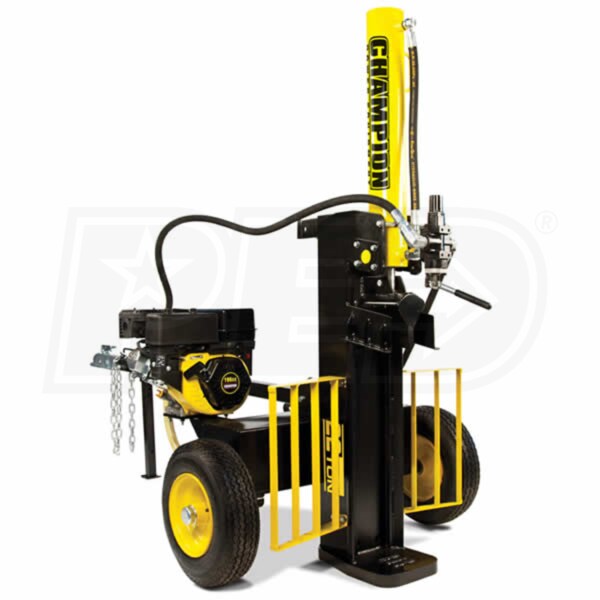

- Switch to vertical & roll large logs into place - save your back
- Handles logs up to 23.75" long (logs up to 100 lbs.)
- 2 Stage, 11 GPM Hydraulic Pump
- Spin-on, external hydraulic oil filter
- 3500 PSI maximum from 4" x 22" cylinder
- 14 second cycle time (250 cycles per hour)
- Integrated Log Cradle
- Keeps split logs on the beam; less bending over to stack
- Log Strippers
- Assist in removing log from wedge on the return stroke
- 2-Inch Ball Hitch
- 16-inch, DOT approved tires for smooth towing
- Assembly Required
Specifications
92221
Engine
Engine Brand
Champion
Starting System
Recoil Start
HP
6.5 HP
CC
196 CCs
Idle Control
No
Low Oil Shutdown
Yes
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
No
Hydraulic Reservoir Size
6.5 Gallons
Max Pump PSI
3500 PSI
Cylinder Diameter
4 Inches
Cylinder Length
22 Inches
Cycle Time
14 Seconds
Tonnage
22 Tons
Overview
Assembly Required
Yes
Weight
396 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Length
86.0 Inches
Product Width
40.75 Inches
Product Height
46.0 Inches
UPC
896682922217
Wedge
Wedge Material
Steel
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
23.75 Inches
Towing
Towable
Yes
D.O.T. Lights
No
Fenders
No
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
45 MPH
Accessories
Jack Stands
Included
Log Cradles
Included
Wood Type | Hardness Rating | 6" Seasoned | 6" Green | 12" Seasoned | 12" Green | 24" Seasoned | 24" Green |
---|---|---|---|---|---|---|---|
Alder | 590 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Ash | 1320 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Aspen | 420 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Basswood | 410 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Beech | 1300 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Birch | 1470 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Boxelder | 720 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
Buckeye | 350 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Catalpa | 550 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Cedar | 900 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
Cherry | 950 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
Cottonwood | 430 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Dogwood | 2150 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
Elm | 1540 Lbs. | 10+ Tons | 13+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Fir | 710 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
Hickory | 1820 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
Locust | 1700 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
Magnolia | 1020 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Maple | 1450 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Oak | 1620 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
Pine | 860 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
Poplar | 540 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Spruce | 510 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Sweet Gum | 850 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
Walnut | 1010 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Reviews
(7)
Champion 92221 Reviews & Ratings
How-To Articles
Manuals
92221
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

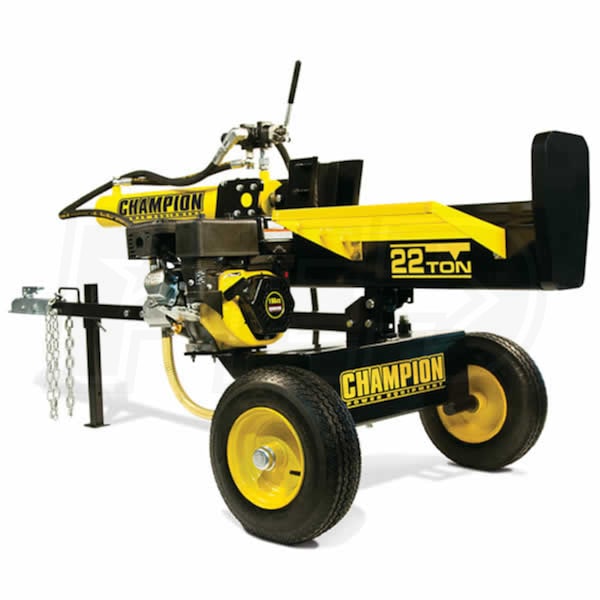

Champion 22-Ton Horizontal / Vertical Gas Log Splitter
